merry-go-round
How-to
- Machine
- LX2
- Material
- wood
- Size
- 300 x 200 mm
- Engraving Difficulty
Design Files
Laser file.dxf
2026/02/26 22:5814

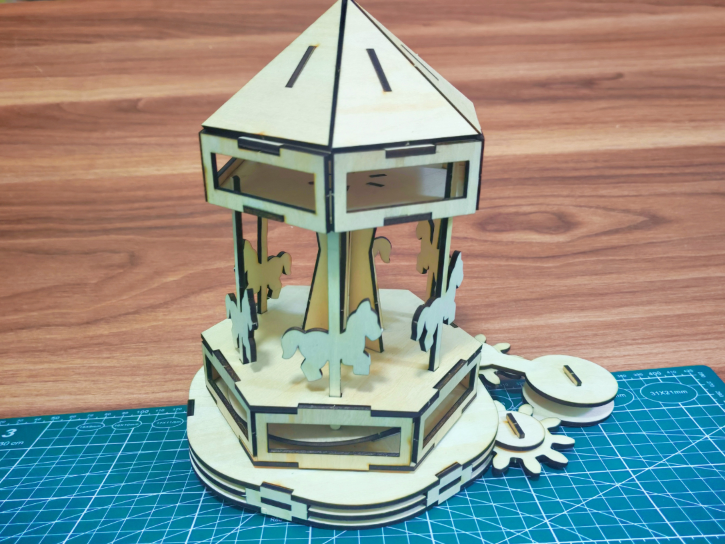

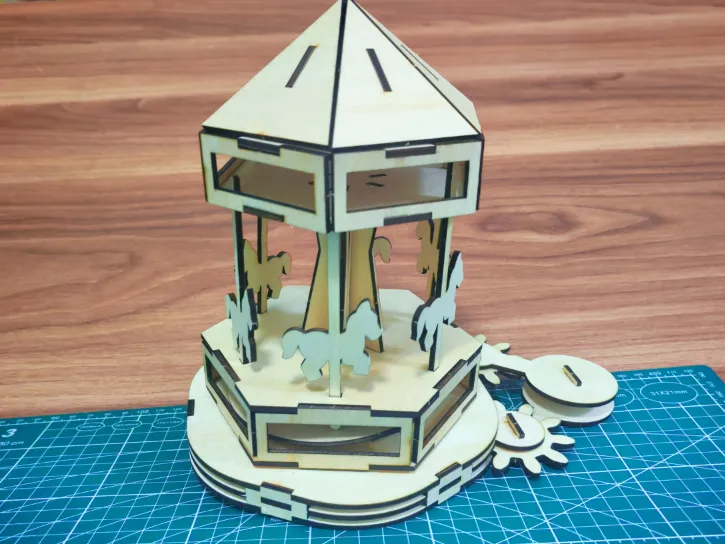

Introduction
A carousel that can rotate through gear linkage，the drawing is applicable to wood boards with a thickness of 3mm
How-to Tutorial
Step1: cutting

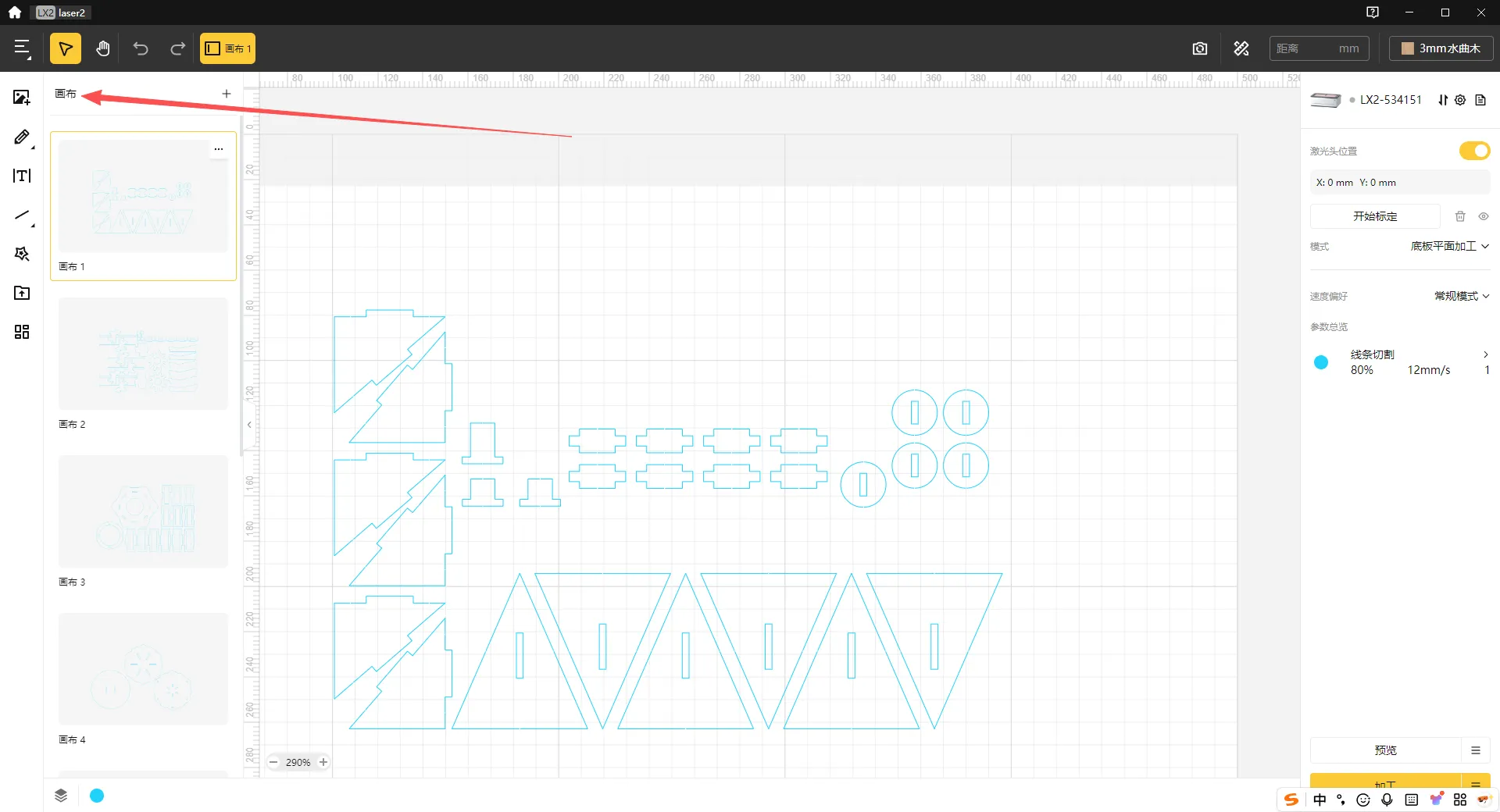

There are eight drawing boards in the file. Cut all the parts and assemble them
Settings 1
Cut
- Engraving Method
- Cut
- Power
- 80%
- Speed
- 12 mm/s
- Pass
- 1
- Module Type
- 40 W 450 nm
Step2: assembly

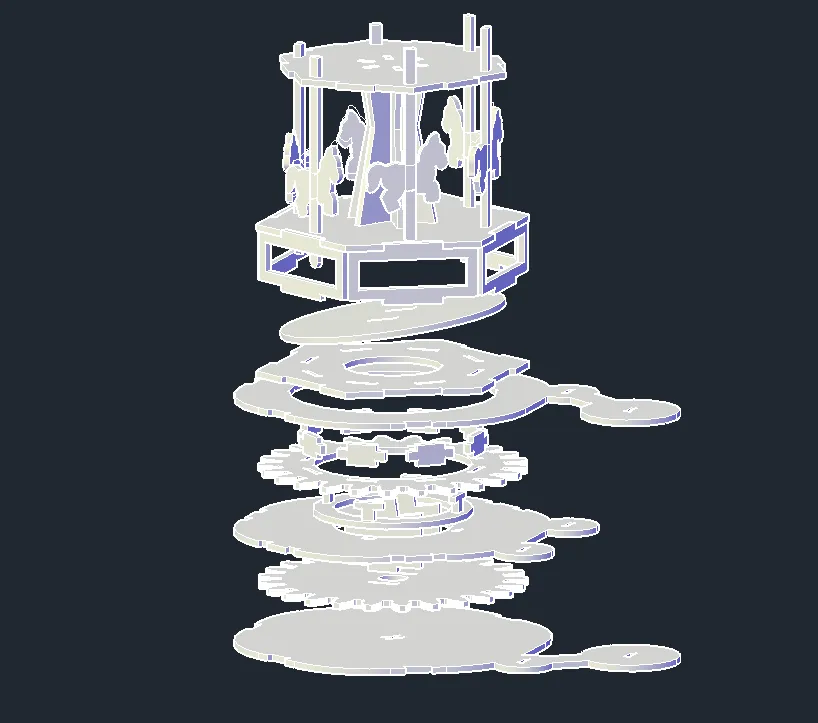

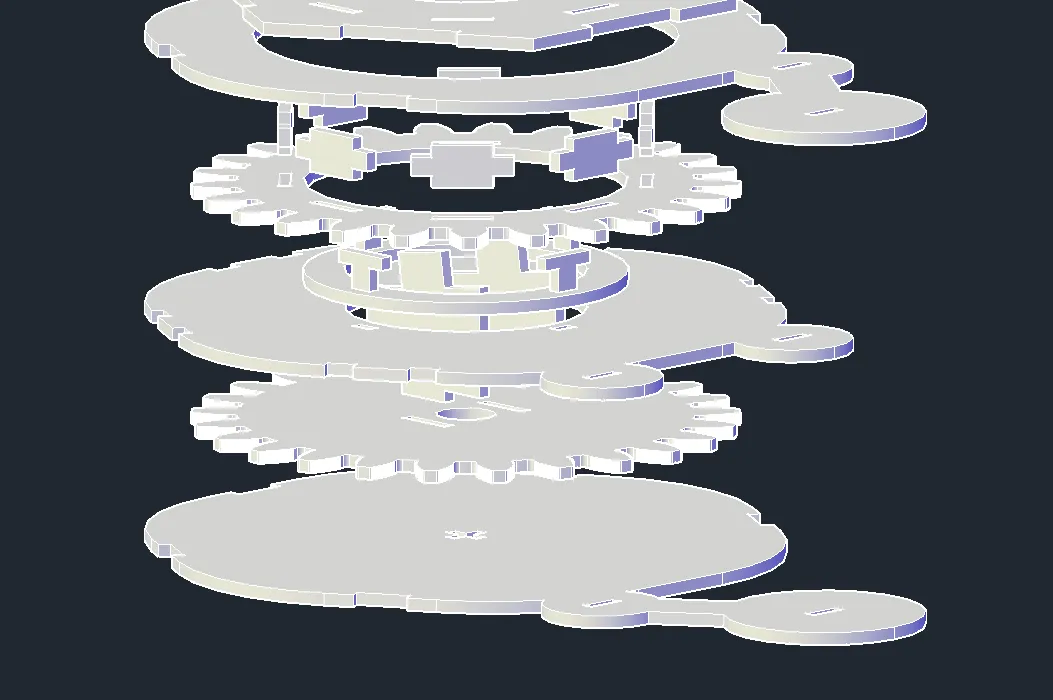

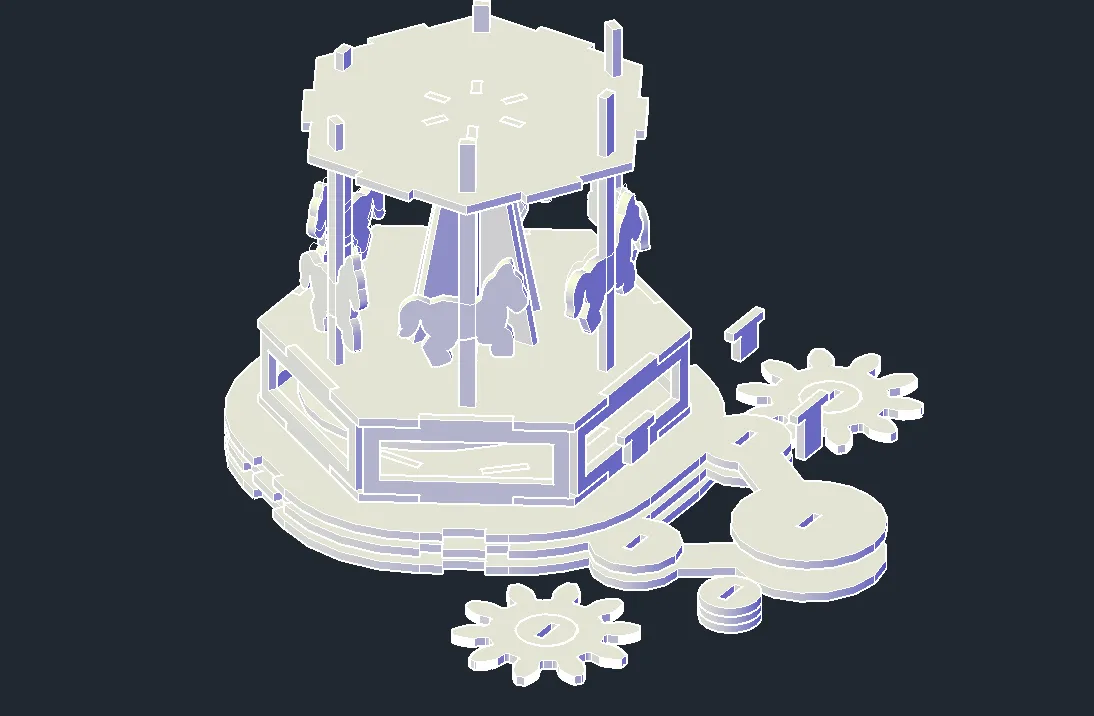

Assemble according to the diagram. I have uploaded the STL format modeling file. The model file is more intuitive than the diagram shown in the picture. You can download it yourself. The file can be opened using the built-in drawing software in Windows or most browsers. In addition, some lubrication may be needed at the gears to ensure smooth rotation. You can spray some WD-40 into the gaps after assembly or apply wax to the gears before starting assembly. This drawing has a high assembly difficulty. I hope to see your finished product.
gear
wood
merry-go-round
