LaserPecker
Deep-Engraved Mug
How-to
- Machine
- LP5
- Material
- Ceramics
- Size
- 60 x 74 mm
- Software Used
- LaserPecker Design Space PC
- Production Time
- 3 min
- Engraving Difficulty
Design Files
2025/08/30 17:1522
Introduction
Let's take a look at how personalized and visually appealing custom deep-engraved mugs are crafted!
How-to Tutorial
Step1:

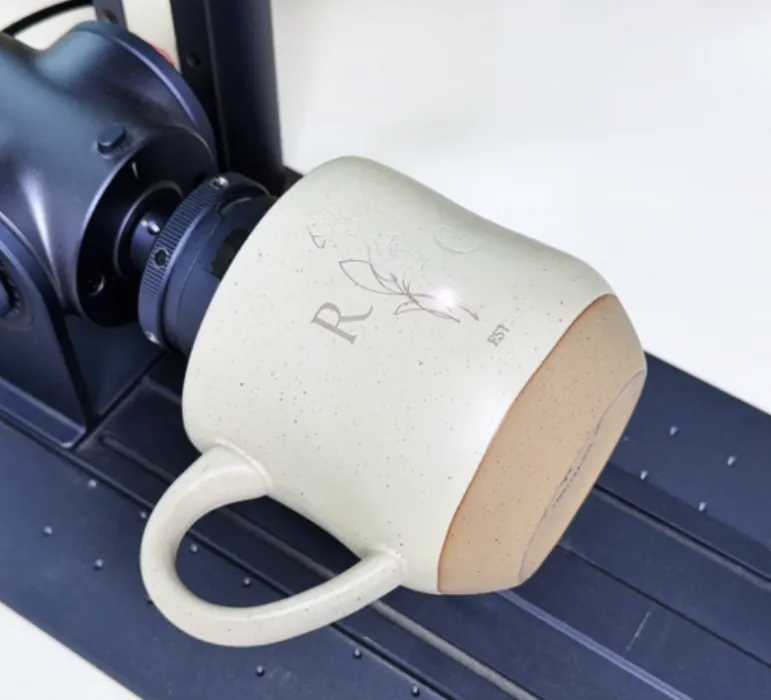

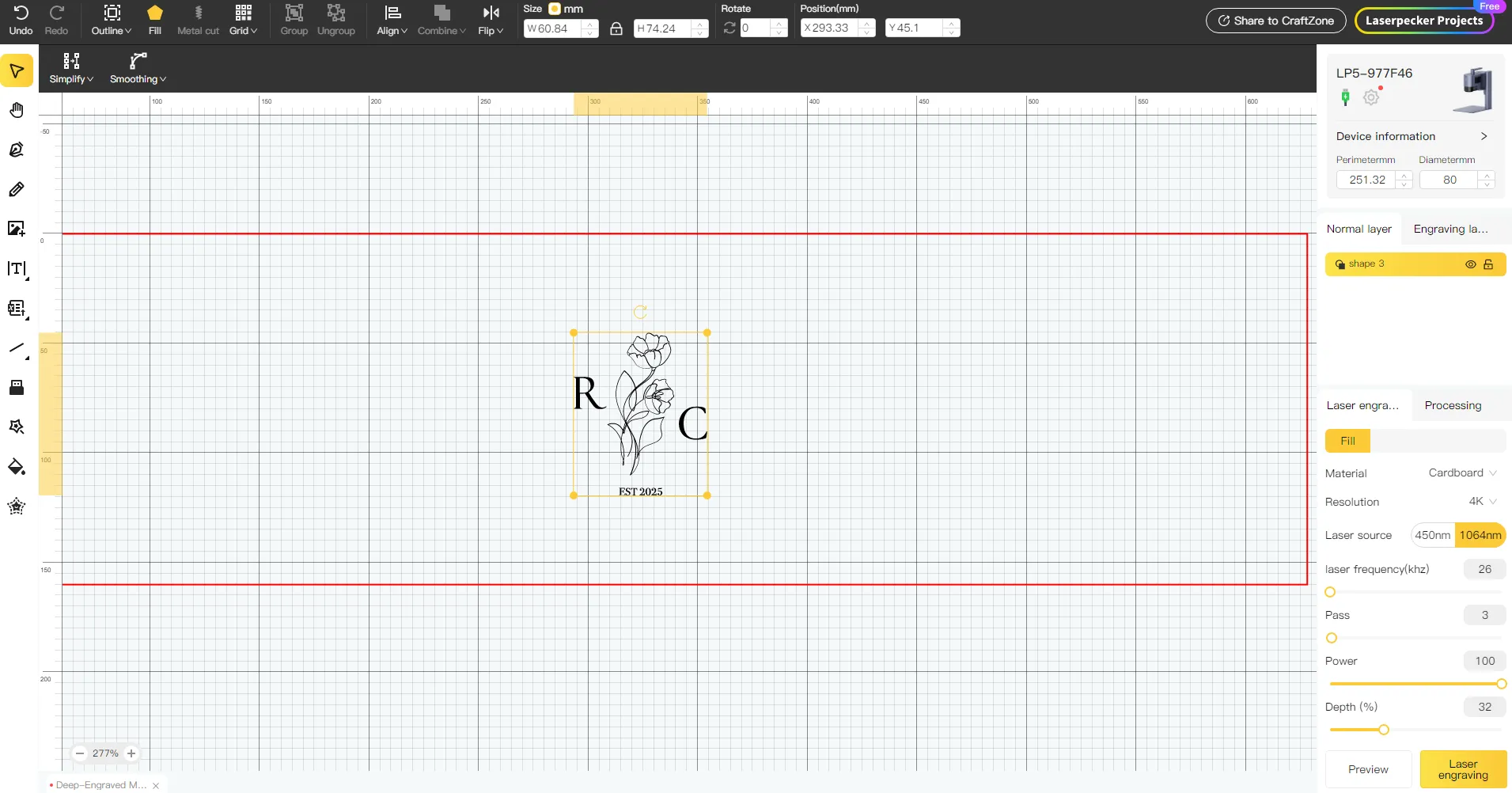

Open the file, connect the machine and the rotary extension, measure the diameter or circumference of the cup, and fill in the location shown in the image. Fix the mug on the rotation, then adjust the focus, verify the size, preview the position, and determine the engraving parameters. Next, you can start engraving.
Settings 1
FillCeramics
- Engraving Method
- Fill
- Material
- Ceramics
- Resolution
- 4 K
- Power
- 100%
- Depth
- 32%
- Pass
- 3
- Module Type
- 20W 1064nm
- Laser Frequency
- 26
Step2:
After the engraving is completed, clean the dust from the surface. Then, brush a layer of paint onto the surface to allow it to fill the engraved grooves. Finally, wipe away any excess paint. And voilà—the finished product is ready!
