LaserPecker
3D Wood Engraving
How-to
- Machine
- LP5
- Material
- Wood
- Size
- 96 x 96 mm
- Material Information
- Canadian Hard Maple
- Software Used
- LaserPecker Design Space PC
- Production Time
- 75 min
- Engraving Difficulty
Design Files
2025/06/21 19:36102
Introduction

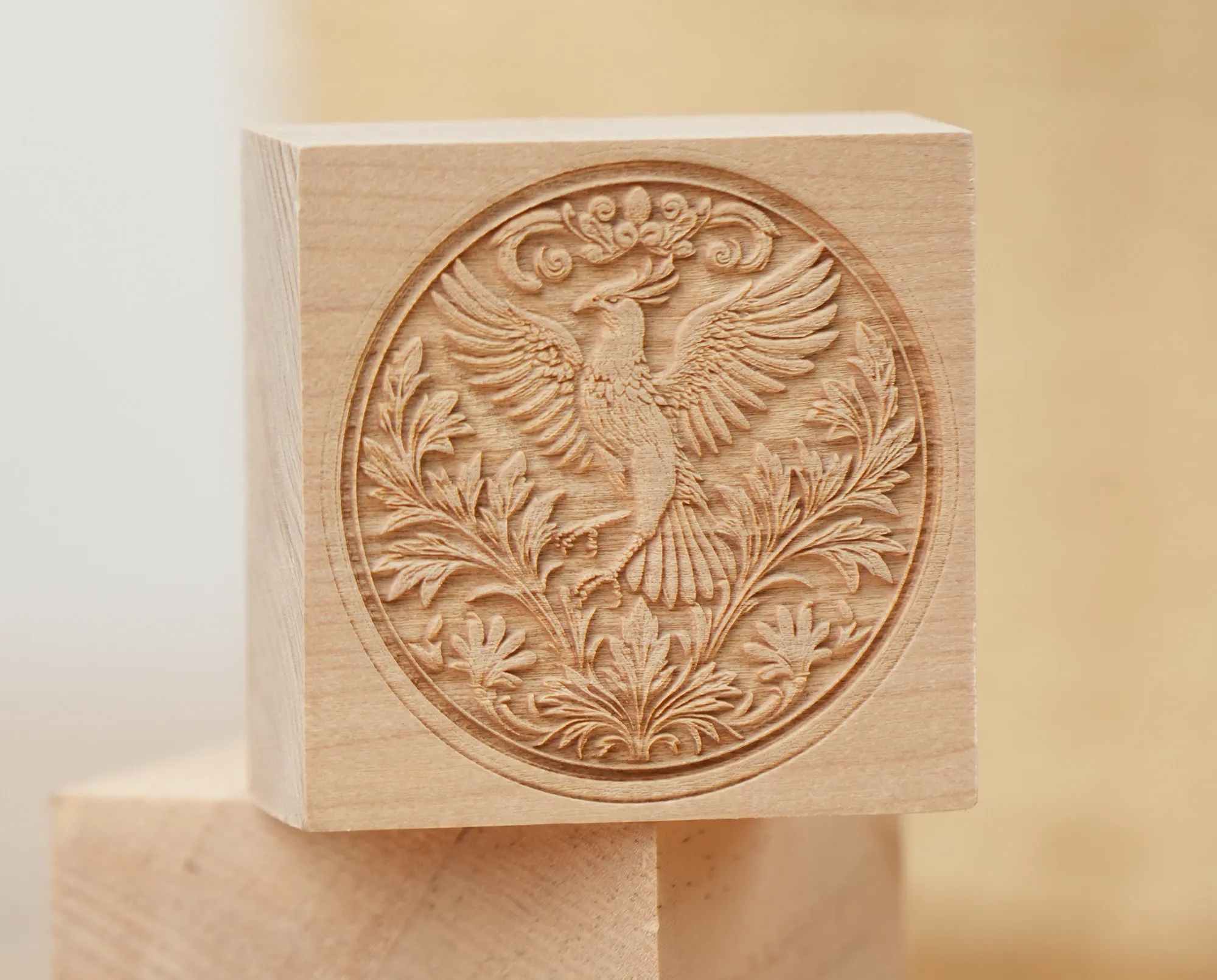

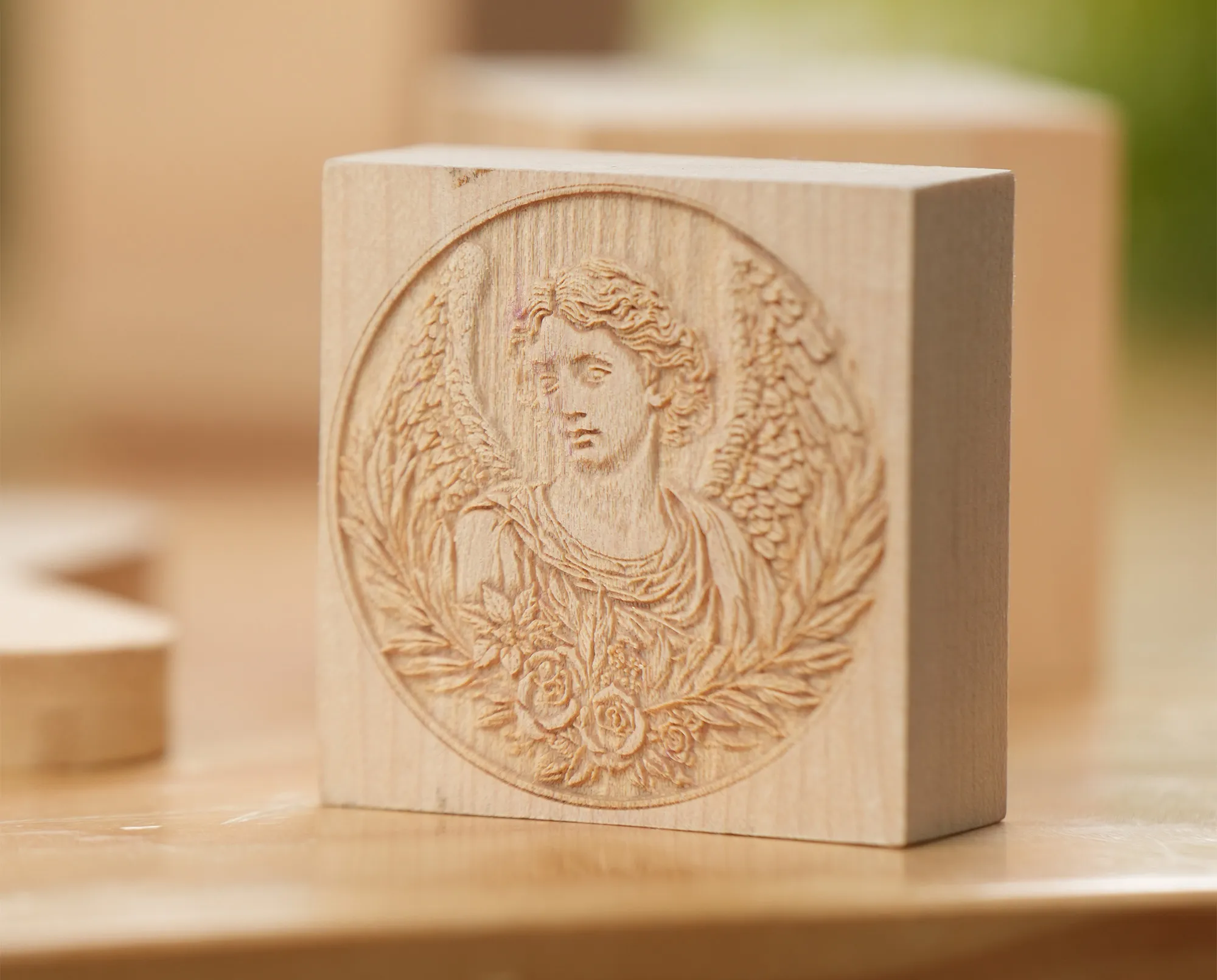

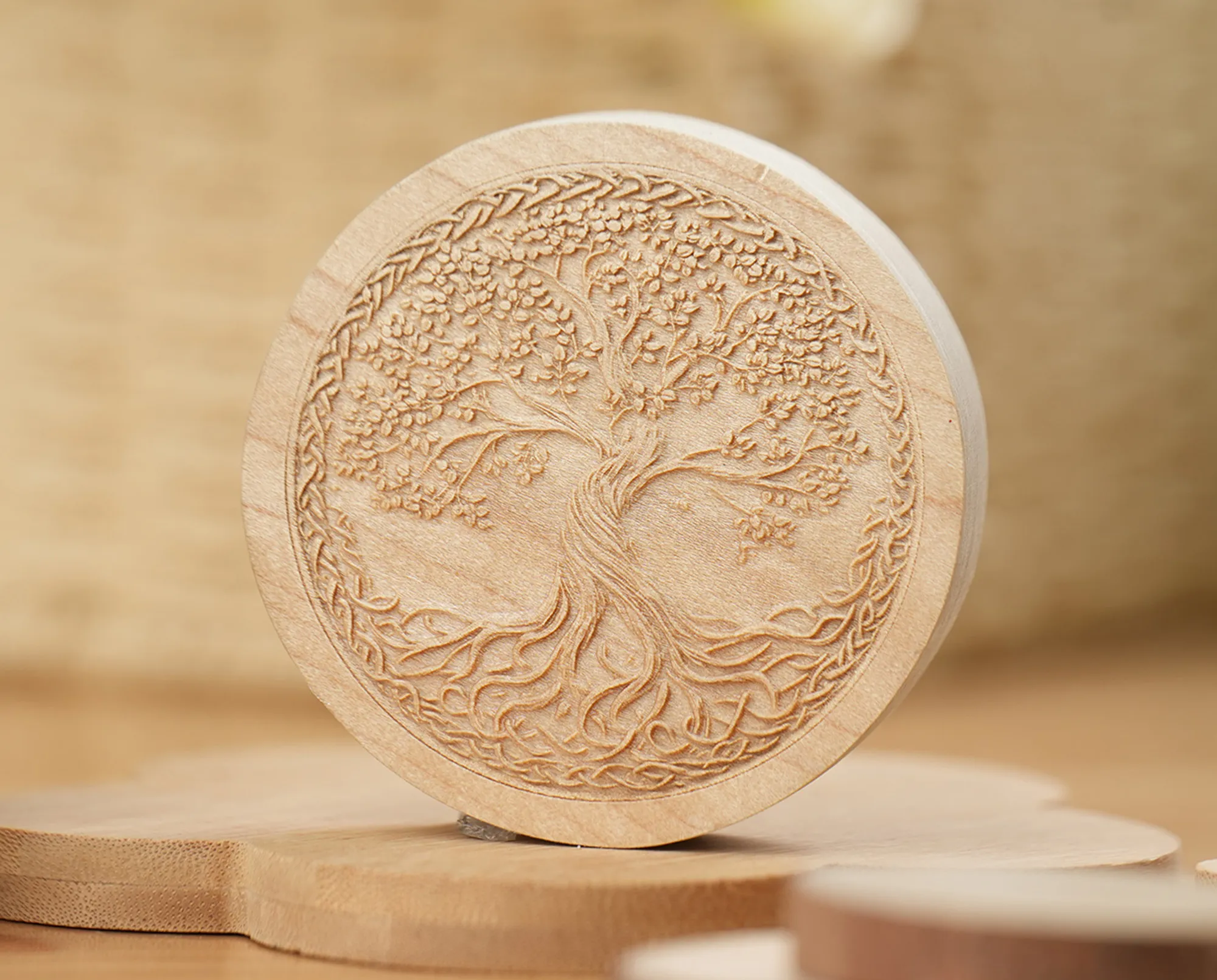

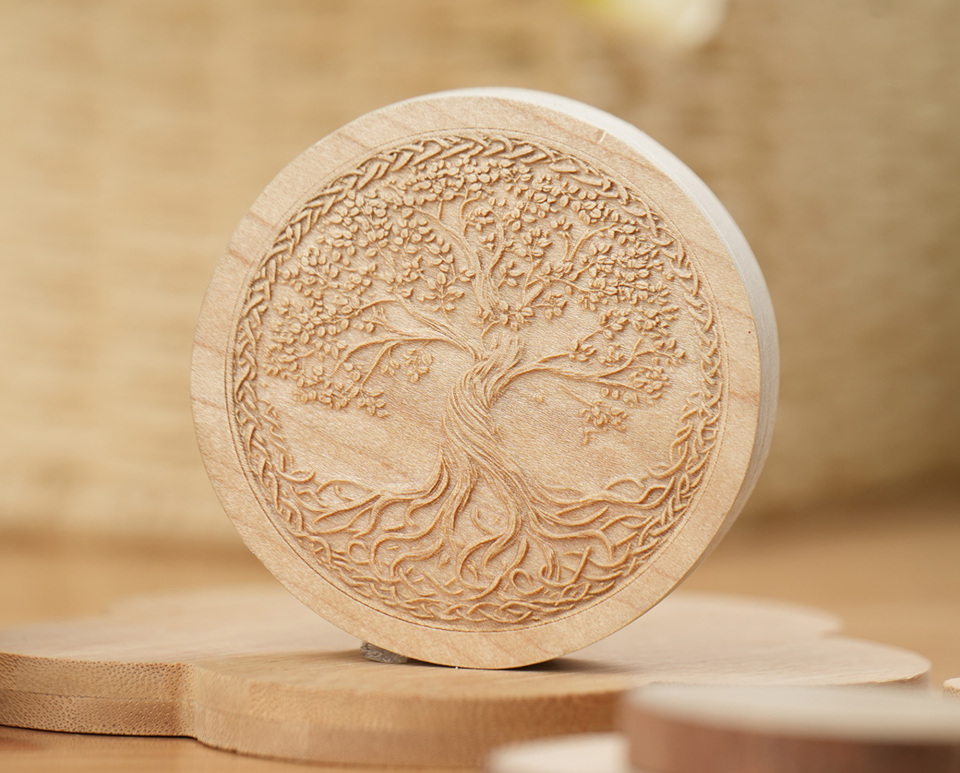

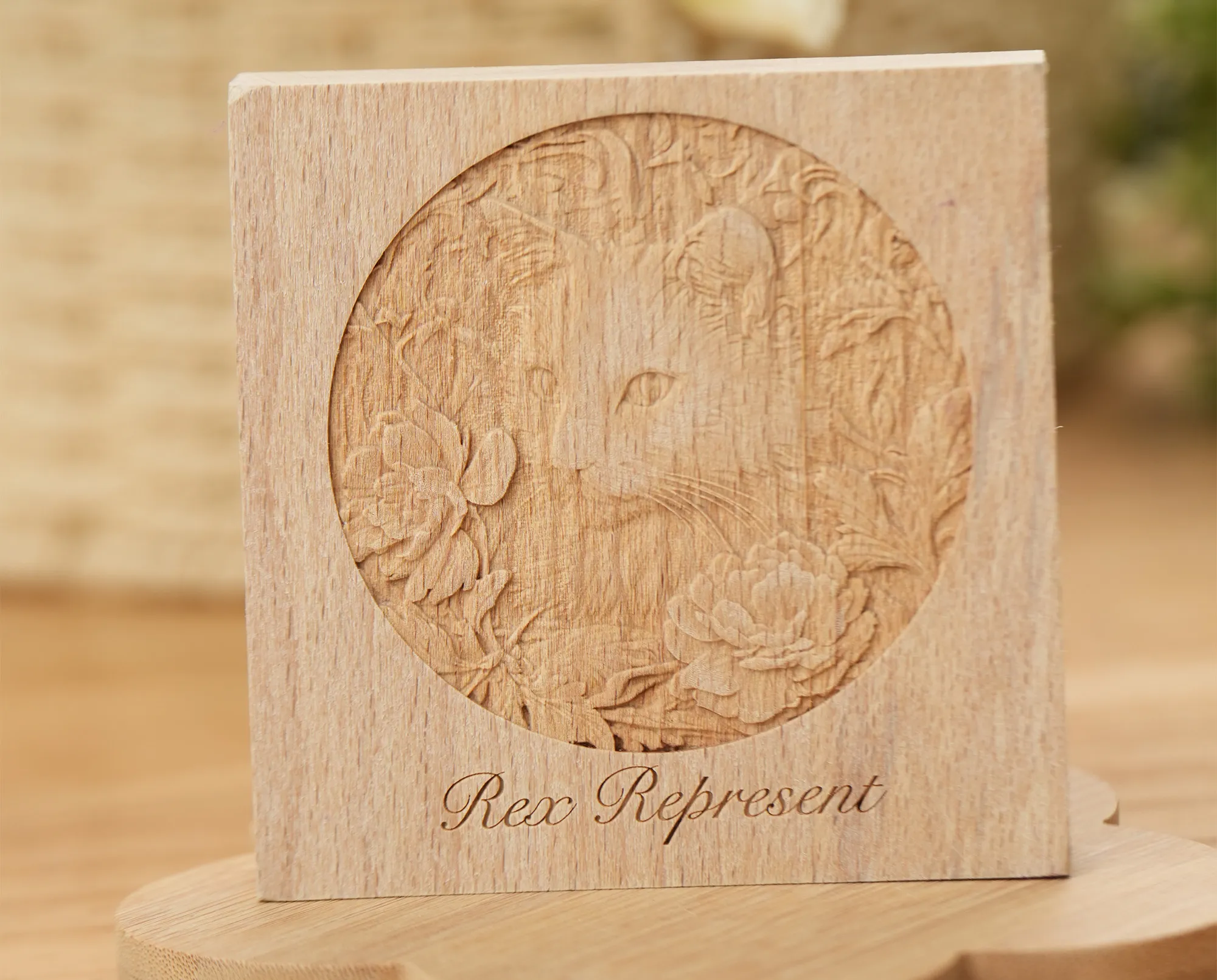

Simple 3D Wood Engraving, come give it a try!
How-to Tutorial
Step1:

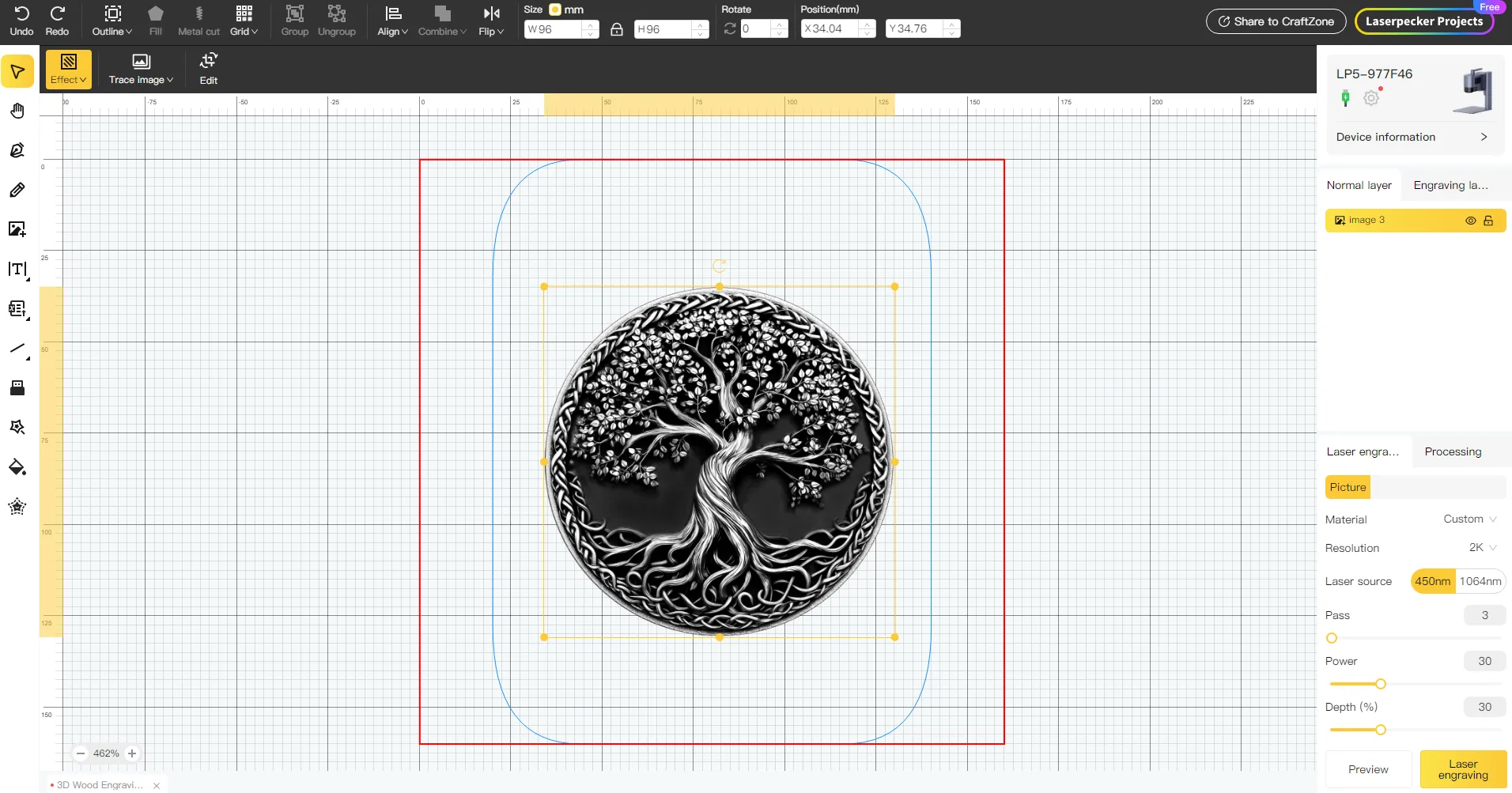

Connect the machine and open the file. Begin by placing the canadian hard maple on the base. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start engraving.
Settings 1
PictureWood
- Engraving Method
- Picture
- Material
- Wood
- Resolution
- 2 K
- Power
- 30%
- Depth
- 30%
- Pass
- 3
- Module Type
- 20W 450nm
Step2:

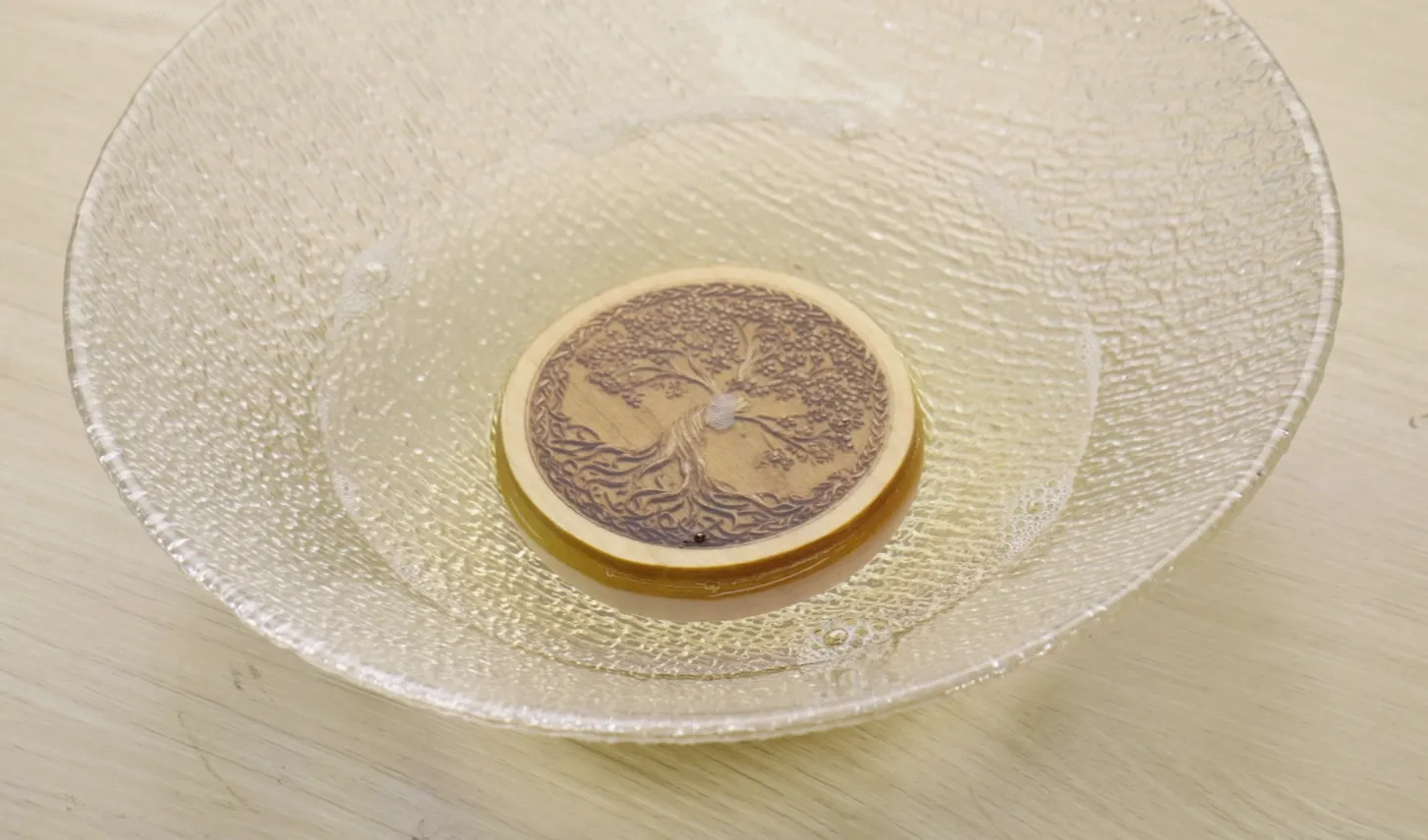

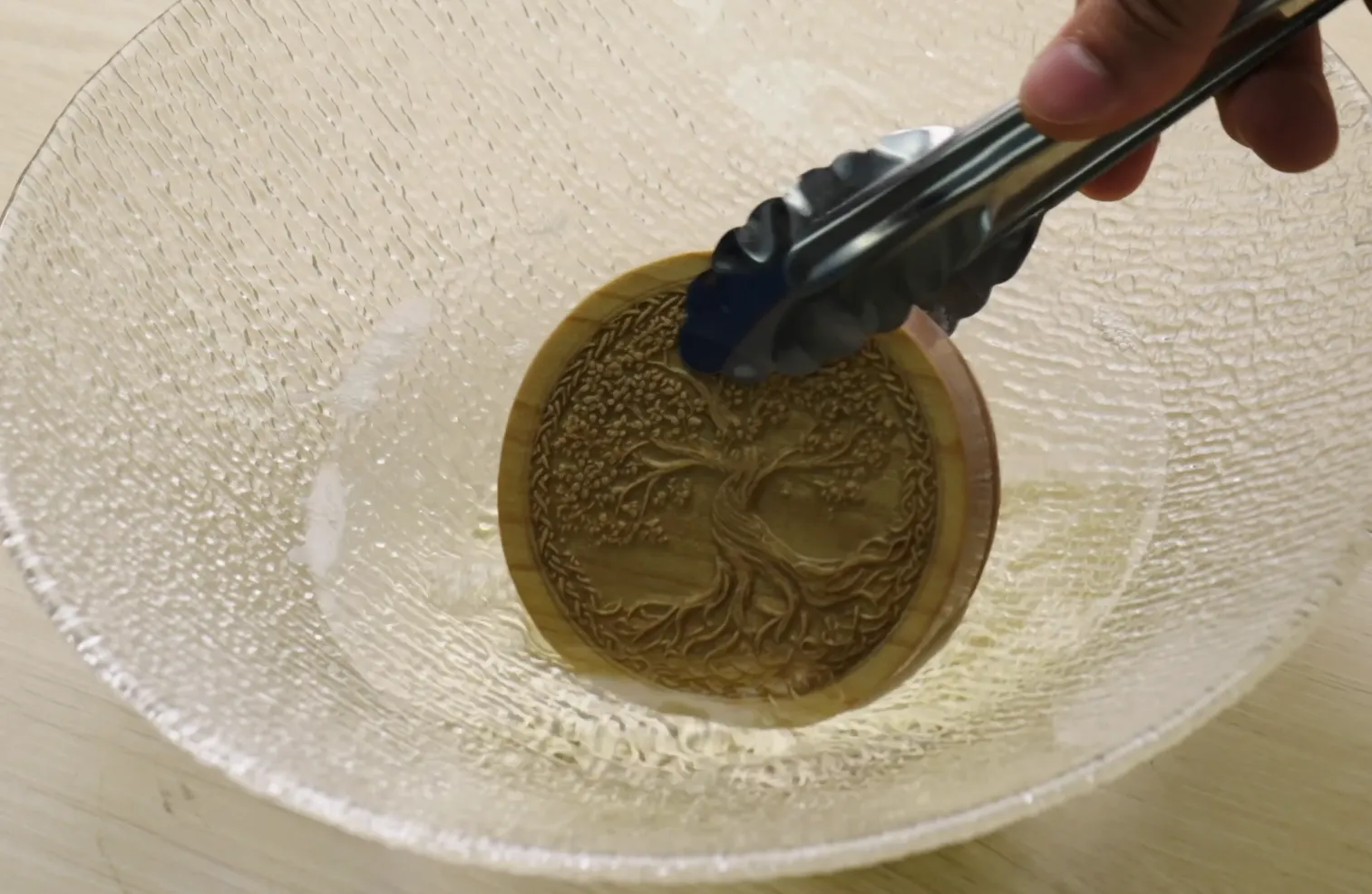

After engraving, soak the wood in a 1:1 mixture of bleach and water for about 10 minutes. Rinse thoroughly with clean water and gently brush the surface with a soft brush to remove any residue.
Allow the wood to dry completely. Then, spray a clear wood varnish over the surface. This will enhances the appearance and also protects the wood from moisture, dust and stains.
