Engraved My LaserPecker USB Drive - Where I Keep All My Projects
How-to
- Machine
- LP5
- Material
- Metal
- Size
- 24 x 24 mm
- Software Used
- LaserPecker Design Space PC
- Production Time
- 2 min
- Engraving Difficulty
Design Files
2025/06/05 07:1517
Introduction

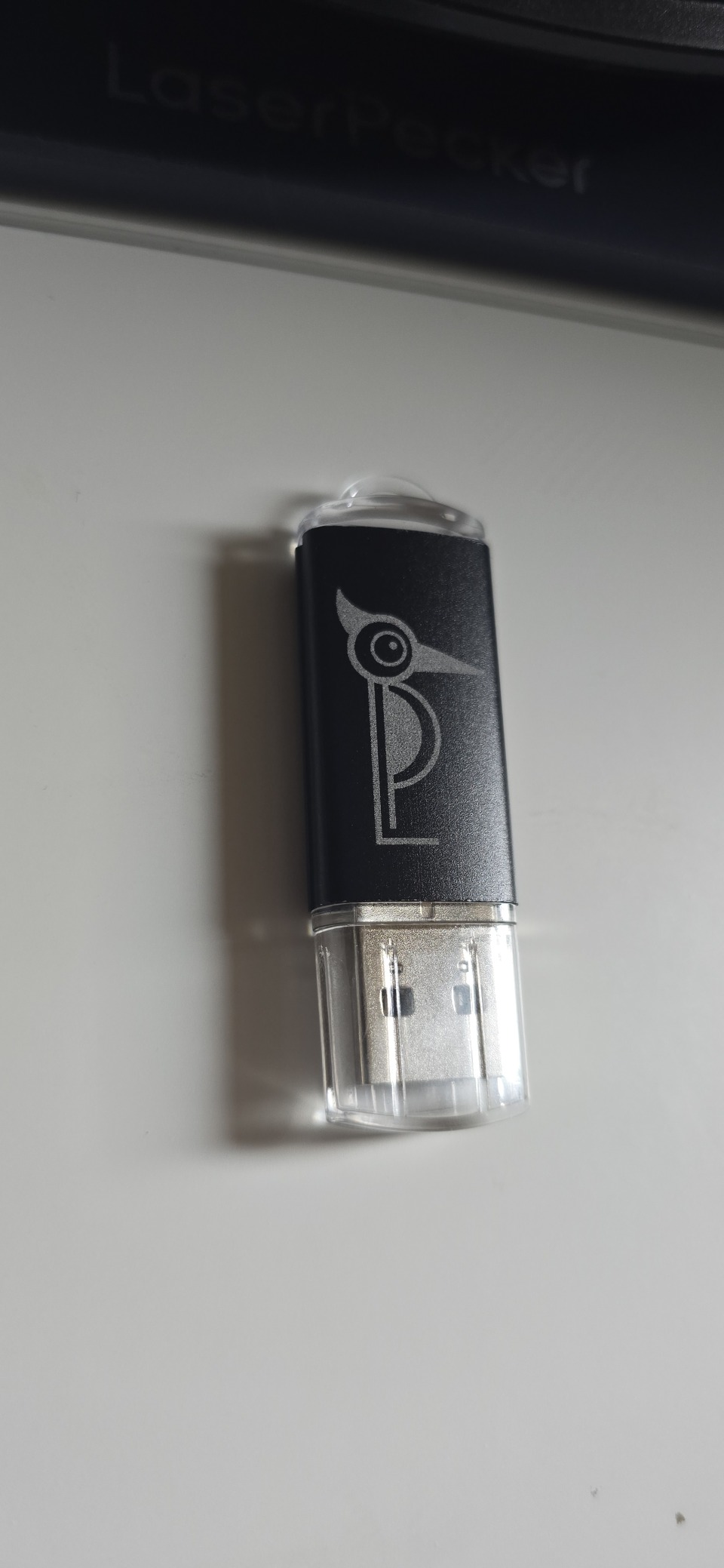

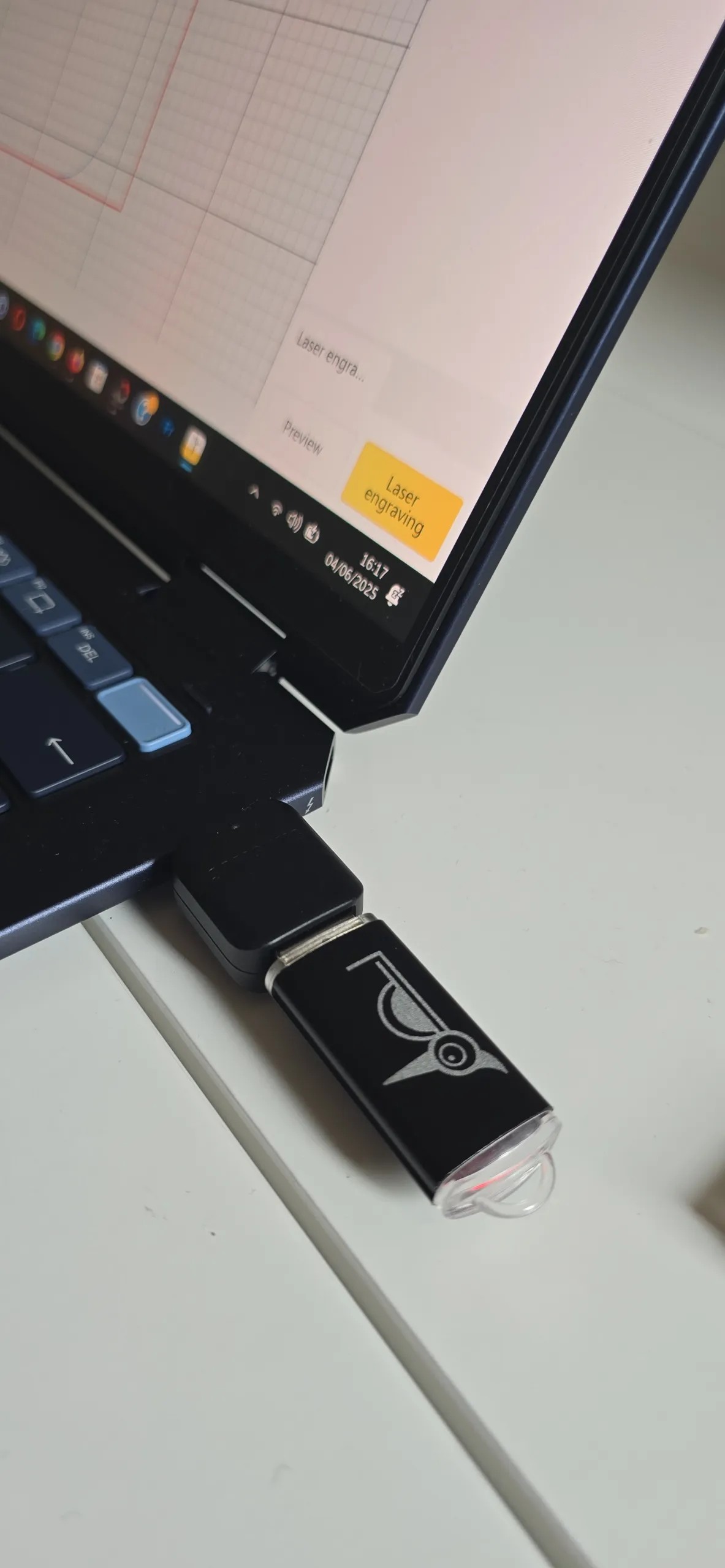

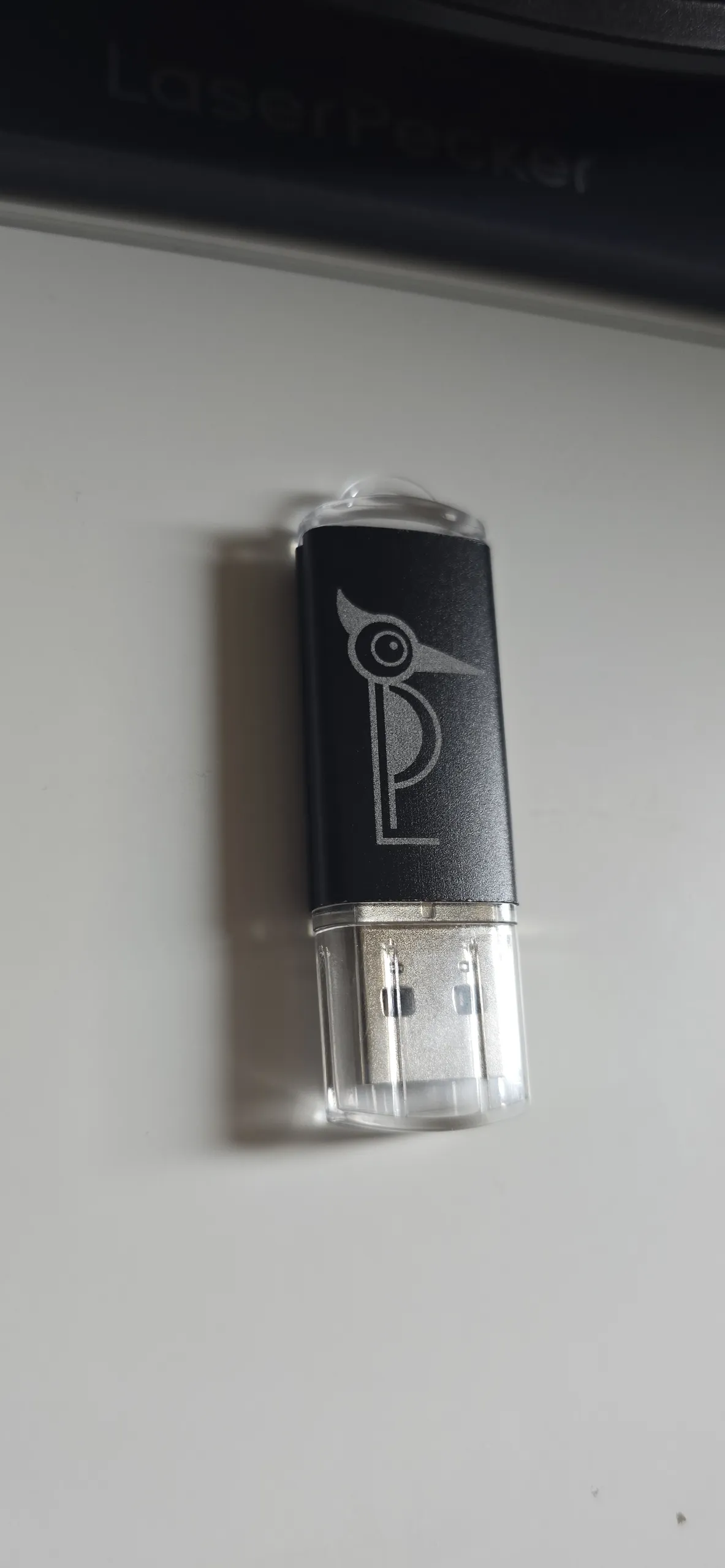

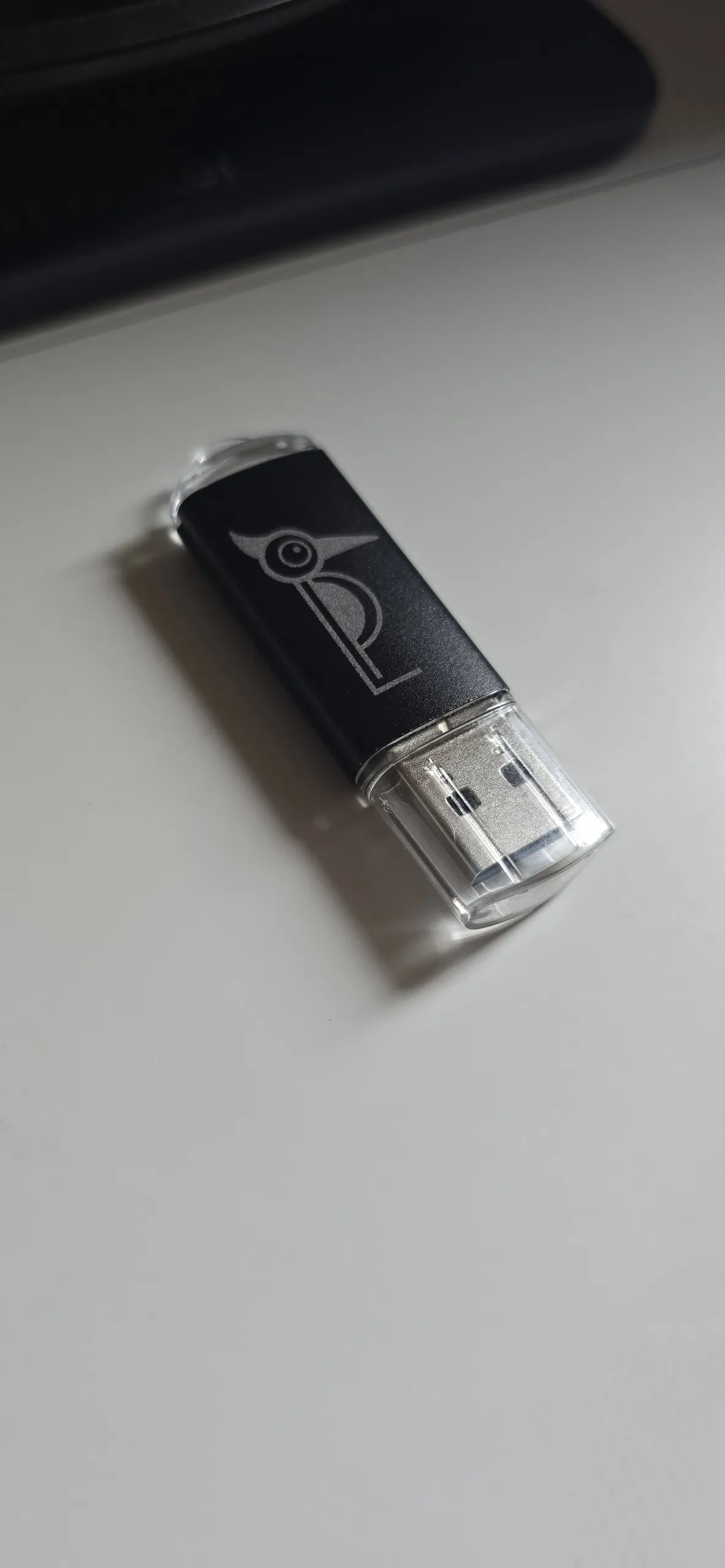

This pen drive came included with my LaserPecker machine, and I use it to store all my engraving projects. I decided to give it a personal touch by engraving the LP logo on it, simple, clean, and functional.
How-to Tutorial
Step1:
How to do it:

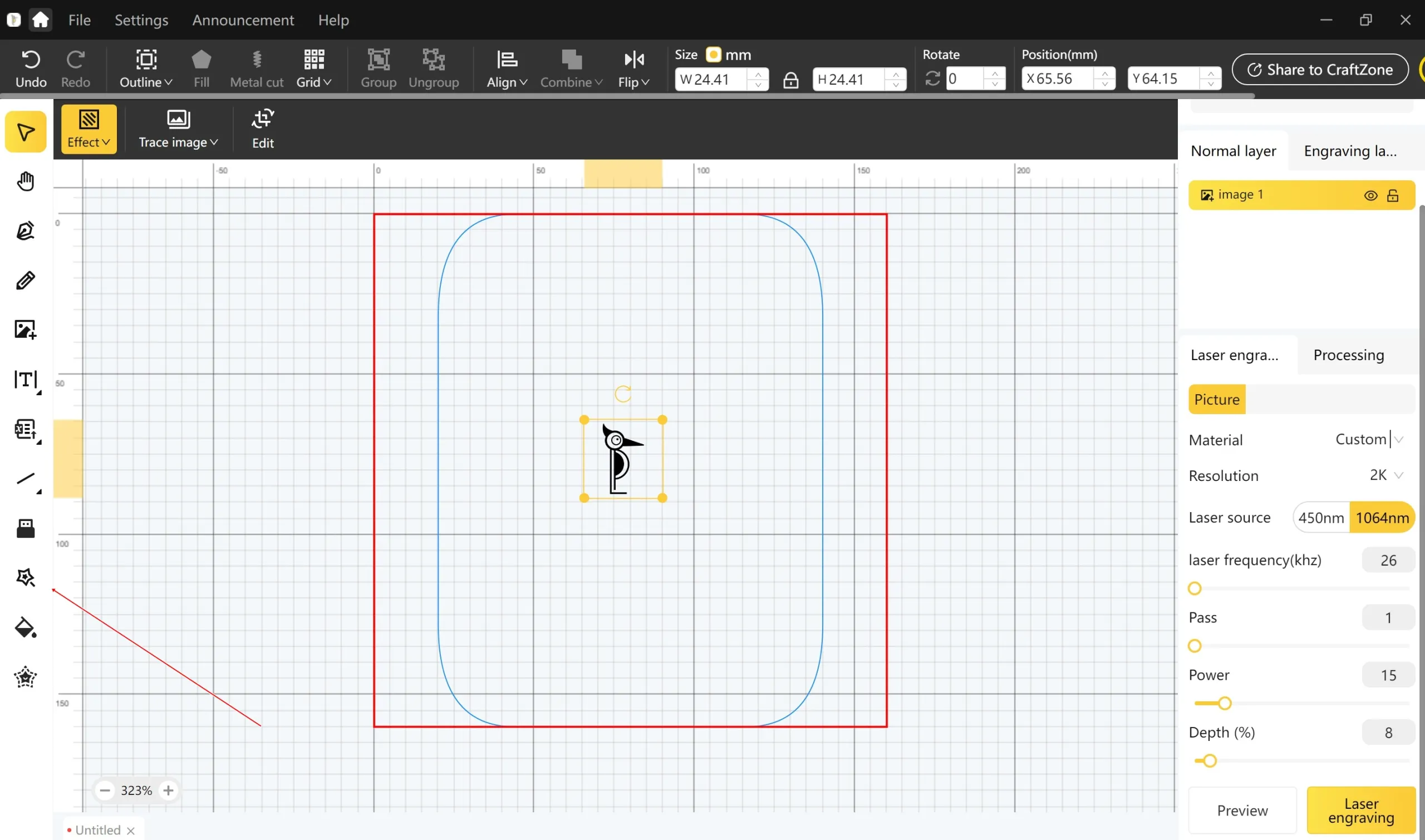

- Open the LaserPecker software and go to the left sidebar - click on the Clipart icon. From there, select the LaserPecker logo (as shown in the first image).

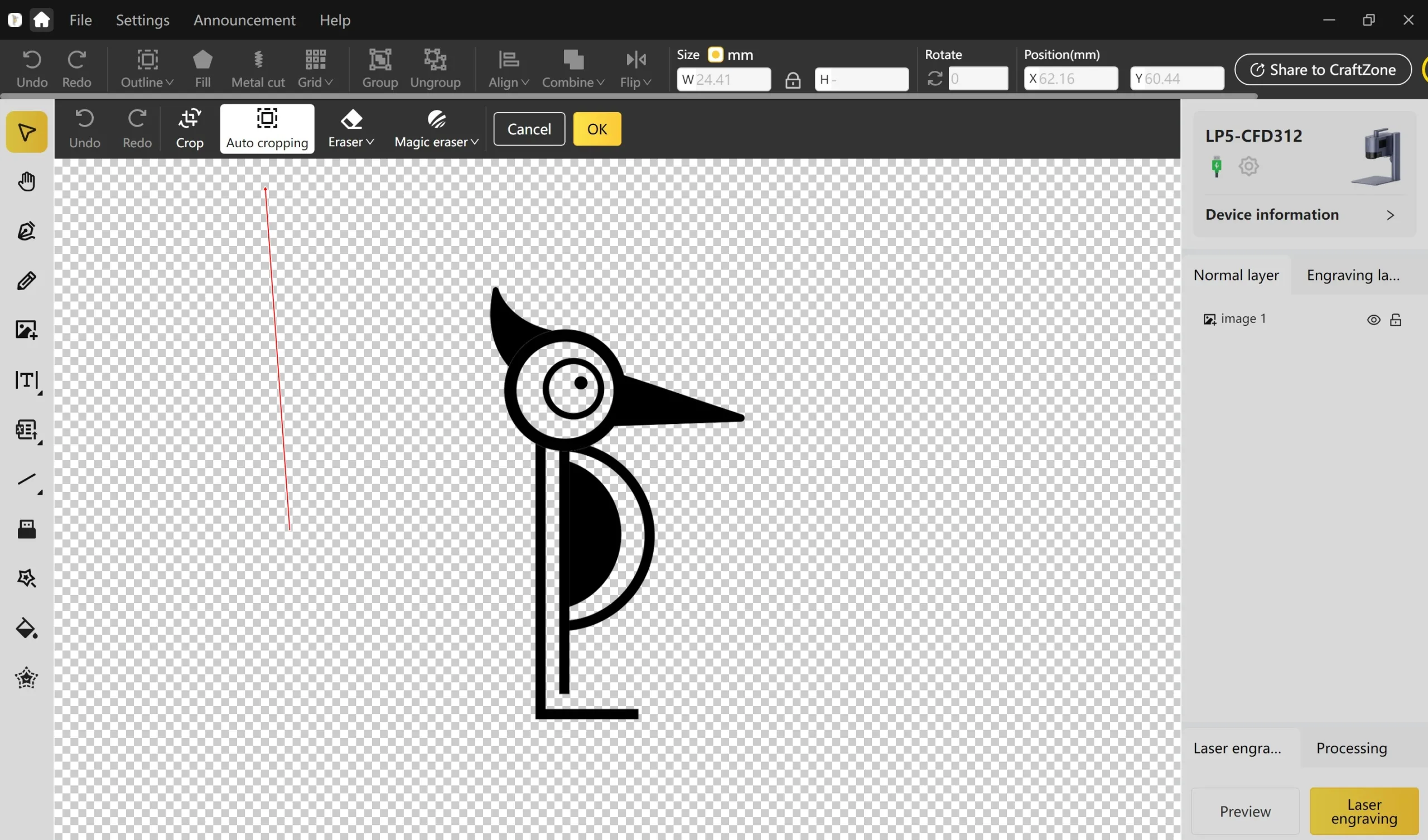

- Then, go to the top Edit tab and click on Auto Cropping, confirm with OK.

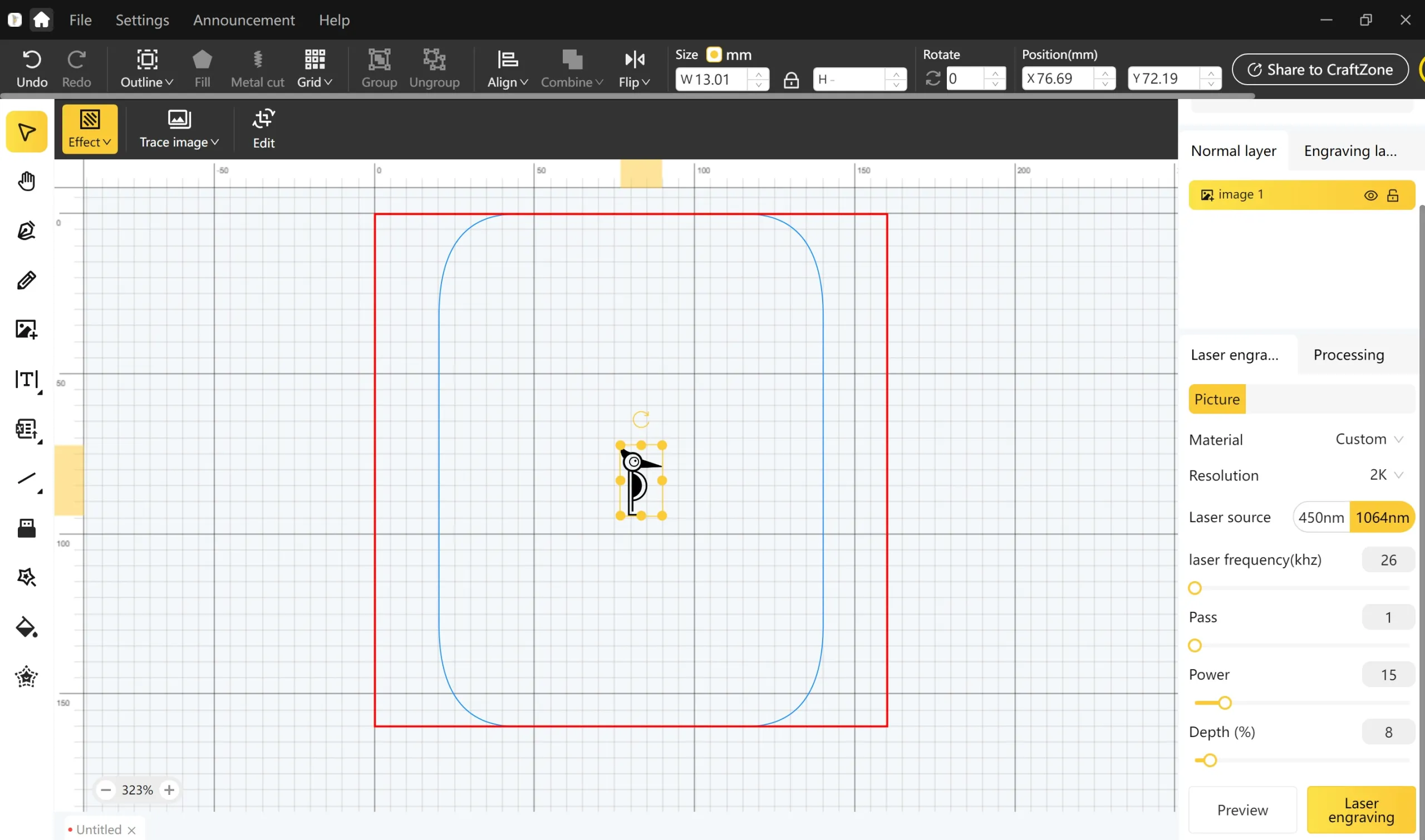

- Insert the engraving values exactly as shown in the image (power/speed/lines).
Settings 1
PictureMetal
- Engraving Method
- Picture
- Material
- Metal
- Resolution
- 2 K
- Power
- 15%
- Depth
- 8%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 26

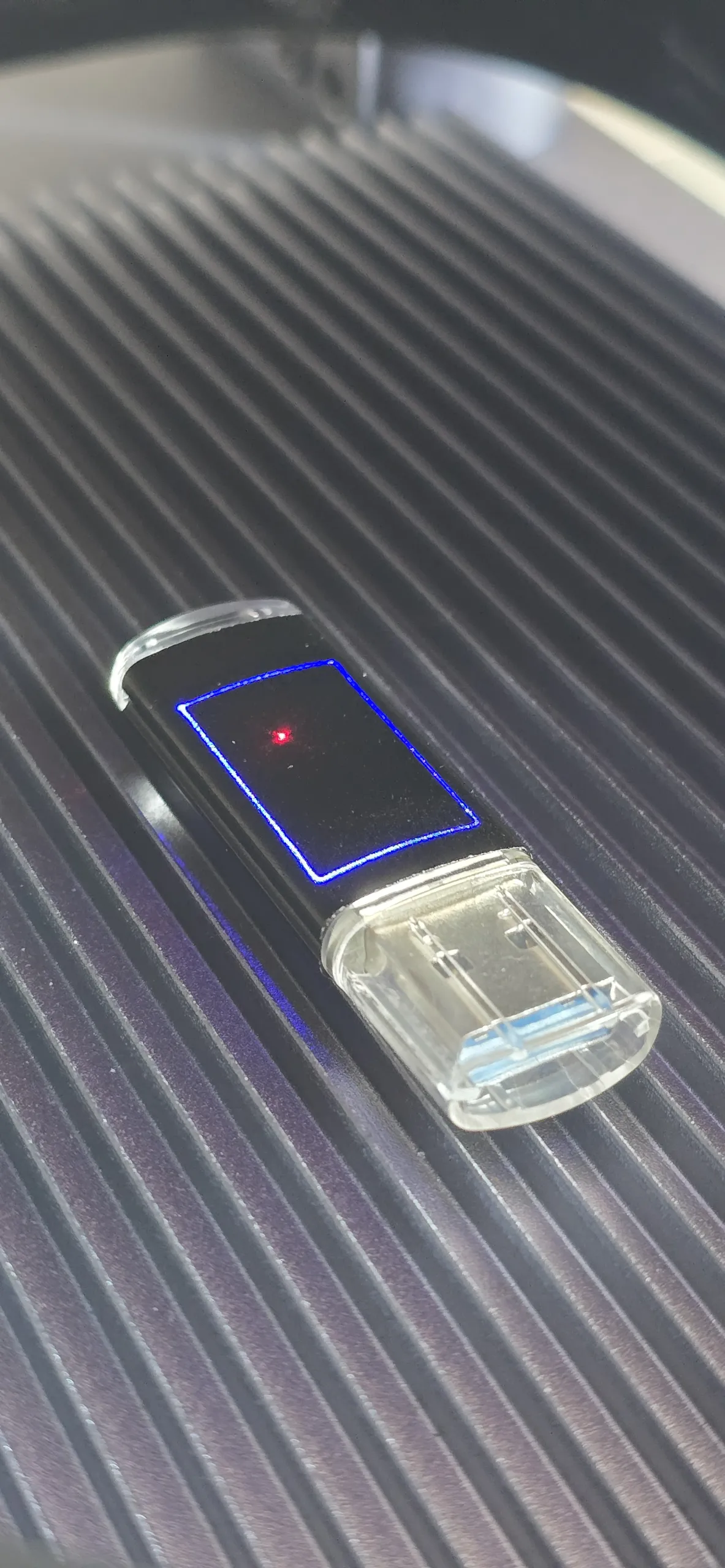

Step2: Place and align the USB Drive properly on the base of your LaserPecker
How to do it:
1. Place the USB Drive on the base of your LaserPecker machine.
2. In the software, click Preview to project the blue outline onto the USB area.
3. Adjust the USB position until the blue preview lines match the area
4. Once it's aligned correctly, you're ready to engrave!
