European-Style Patterned Belt Buckle
How-to
- Machine
- LP5
- Material
- Metal
- Size
- 66 x 43 mm
- Software Used
- LaserPecker Design Space PC
- Production Time
- 1260 min
- Engraving Difficulty
Design Files
2025/05/24 18:1148
Introduction

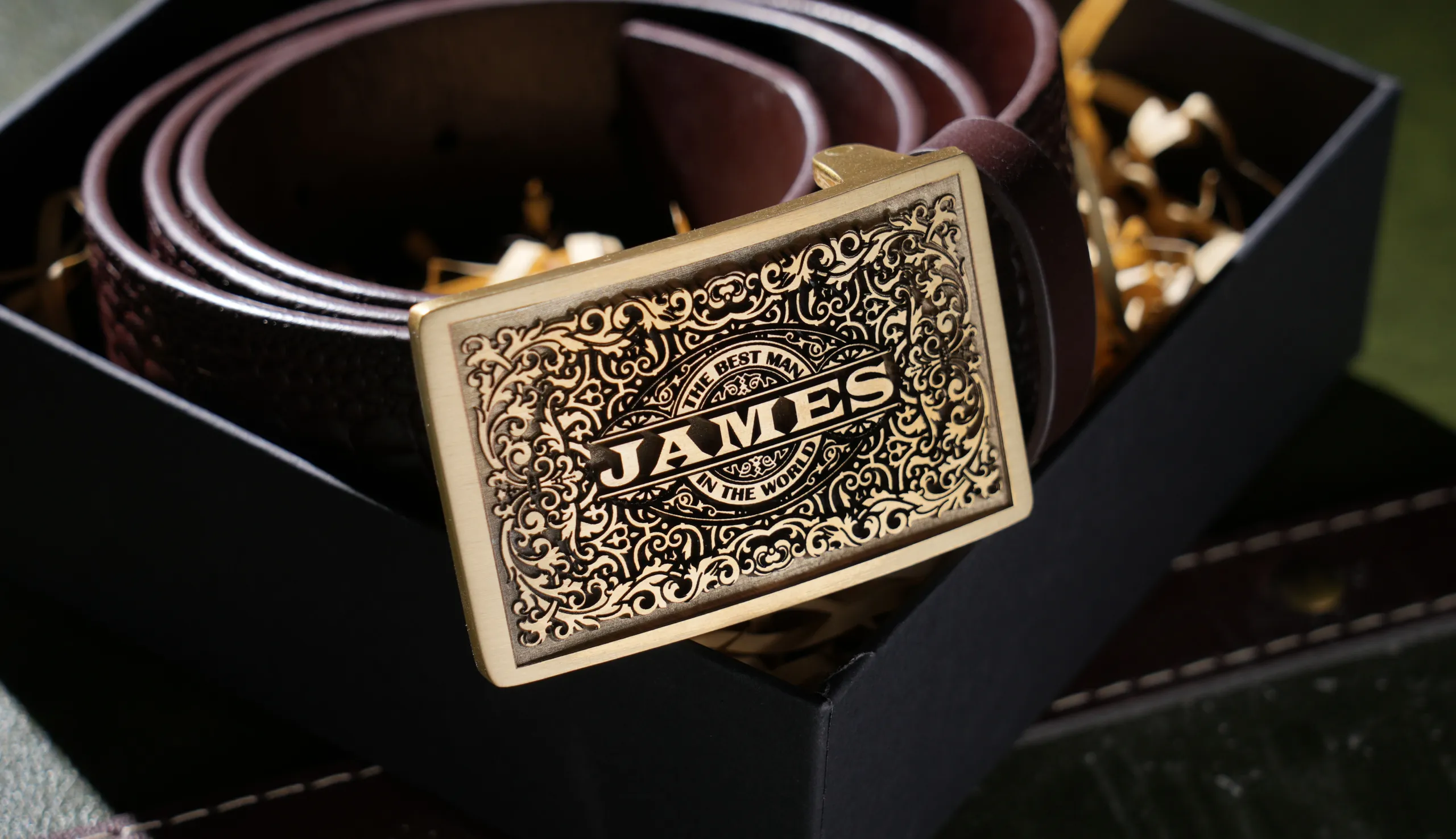

Father’s Day is coming soon—make a beautifully engraved belt buckle as a gift for him！
How-to Tutorial
Step1:

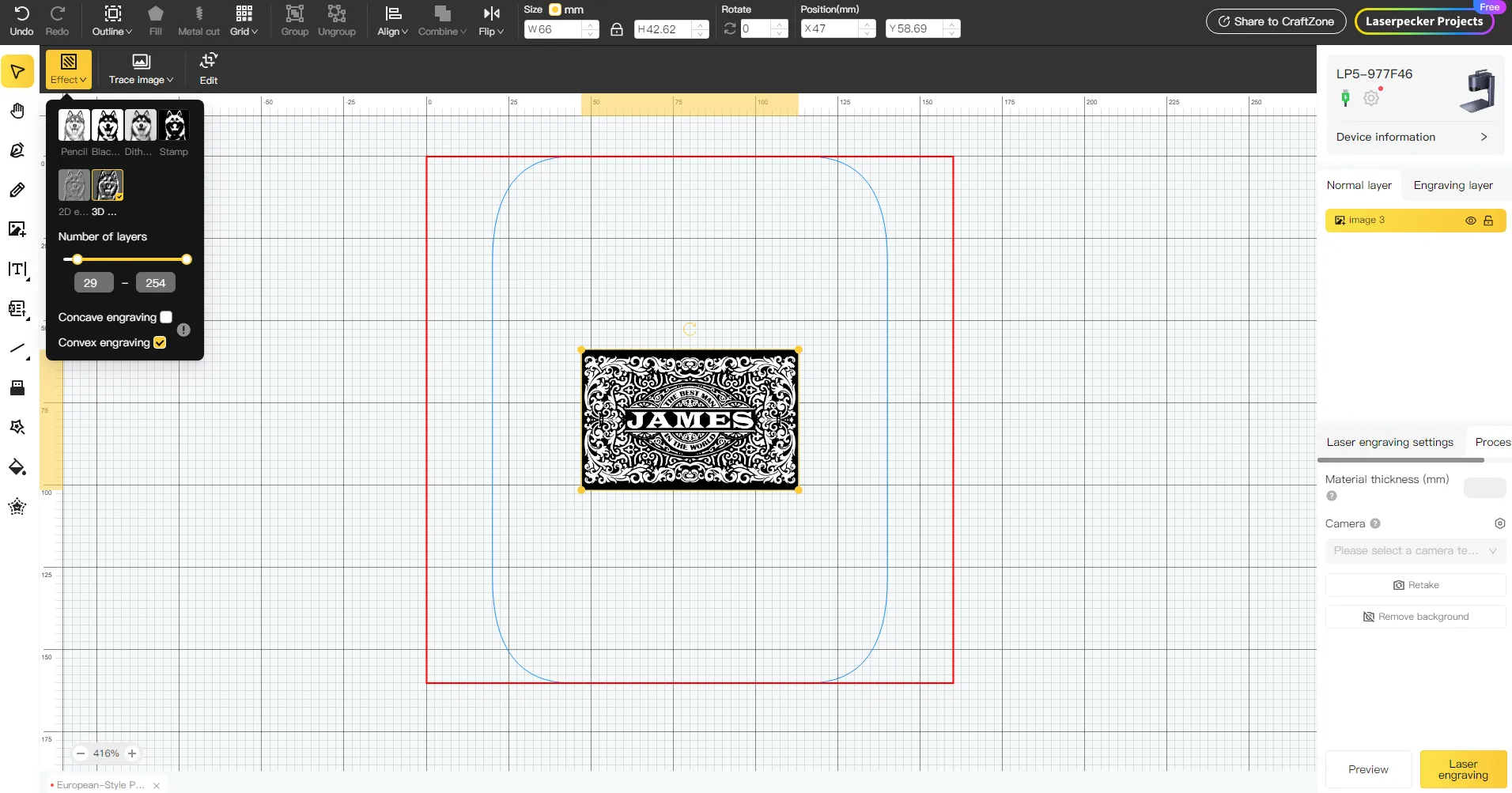

Since embossing files are often large, it's recommended to use a USB flash drive for 3D Grayscale Embossing. To minimize waiting time, import the .lpb format file onto a USB flash drive beforehand.
Settings 1
PictureMetal
- Engraving Method
- Picture
- Material
- Metal
- Resolution
- 4 K
- Power
- 100%
- Depth
- 27%
- Pass
- 225
- Module Type
- 20W 1064nm
- Laser Frequency
- 60
Step2:

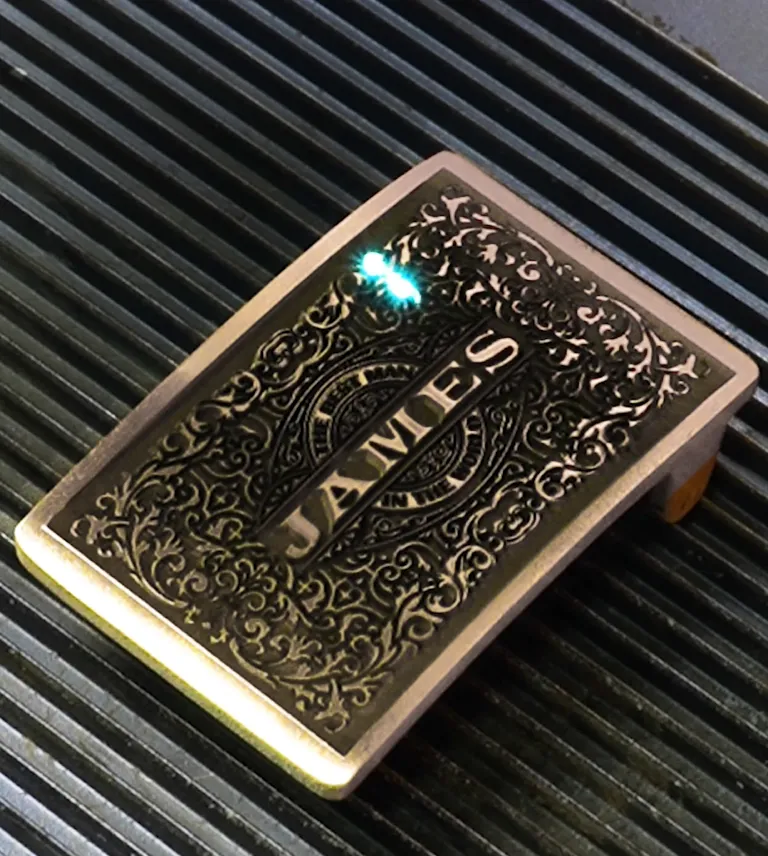

When engraving curved-surface belt buckles, patterns on both sides may lose definition.
Optimization method: At the halfway point of continuous engraving (about 10 hours), gradually lower the machine head while maintaining operation until laser sparks reach maximum intensity (visually the brightest state) during lateral pattern engraving. If the curvature of the surface is too large, you can try this a few more times.
Step3:

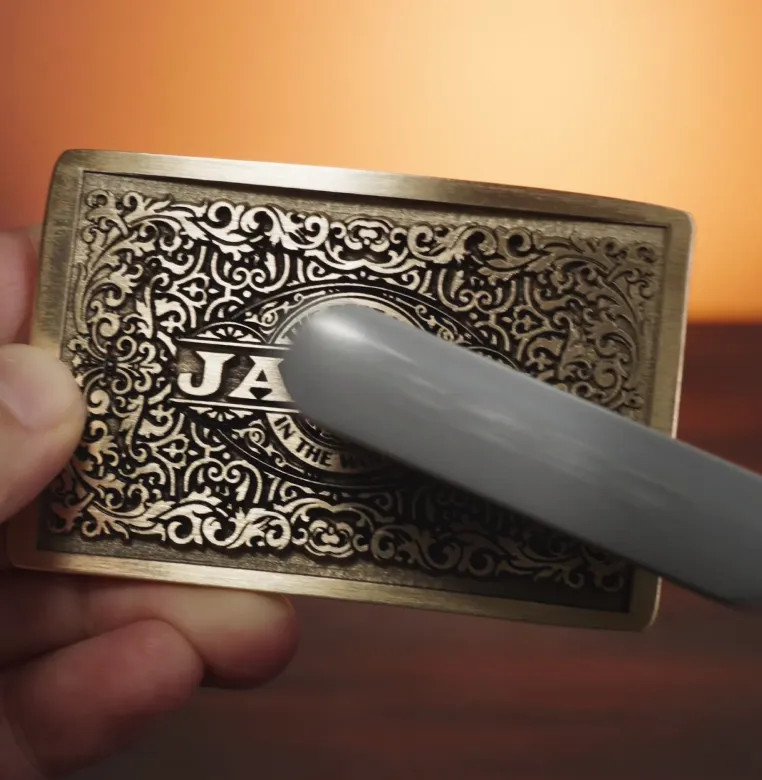

After the engraving is completed, use a brush to clean off the dust from the metal, and finish with polishing.
