Personalized Stethoscope
How-to
- Machine
- LP5
- Material
- Metal
- Size
- 15 x 3 mm
- Material Information
- Stethoscope Anozied Aluminum
- Software Used
- LaserPecker Design Space PC
- Production Time
- 2 min
- Engraving Difficulty
Design Files
2025/05/18 03:245
Introduction

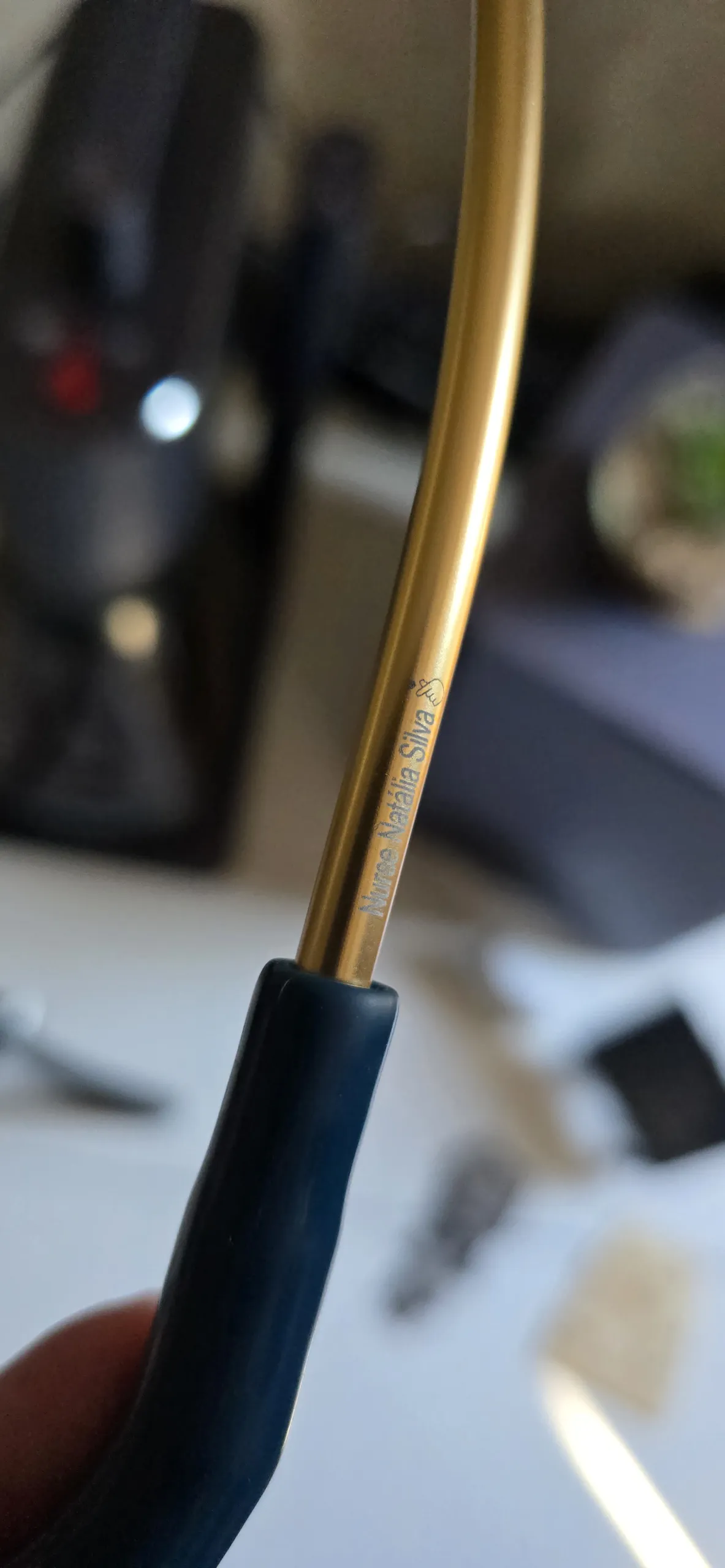

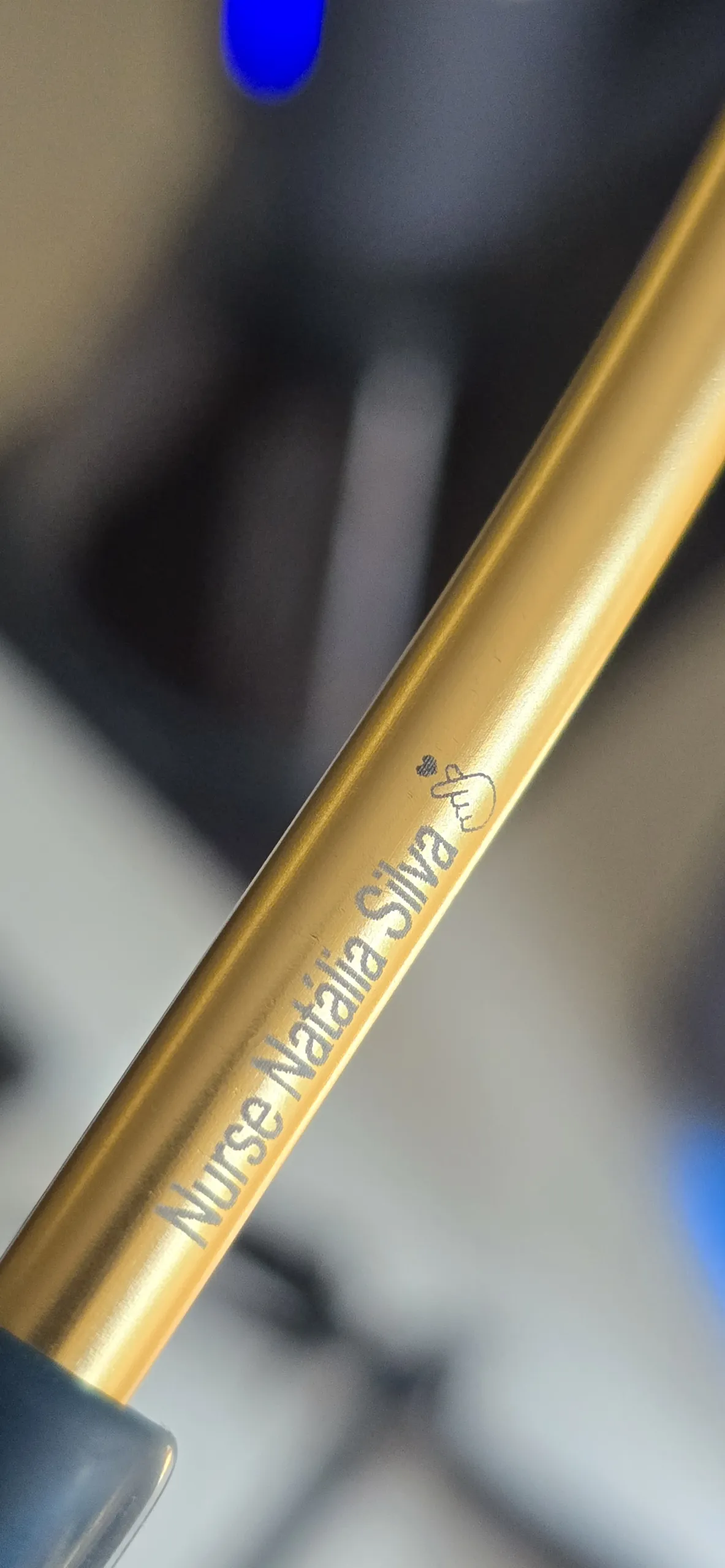

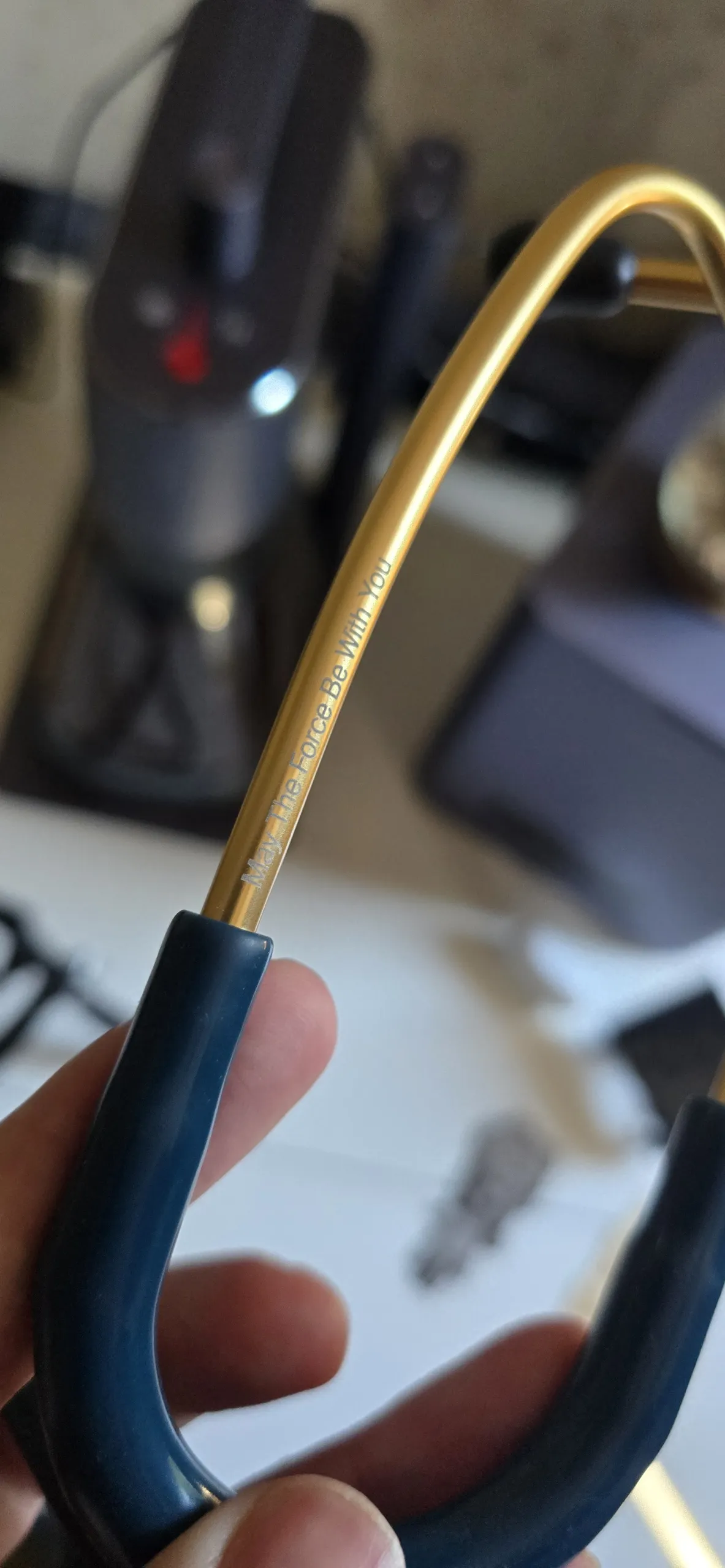

Engraved this stethoscope for my wife.
Used the LaserPecker LP5 to personalize it with her name and a little heart.
Perfect gift for healthcare professionals who want something personal and meaningful.
How-to Tutorial

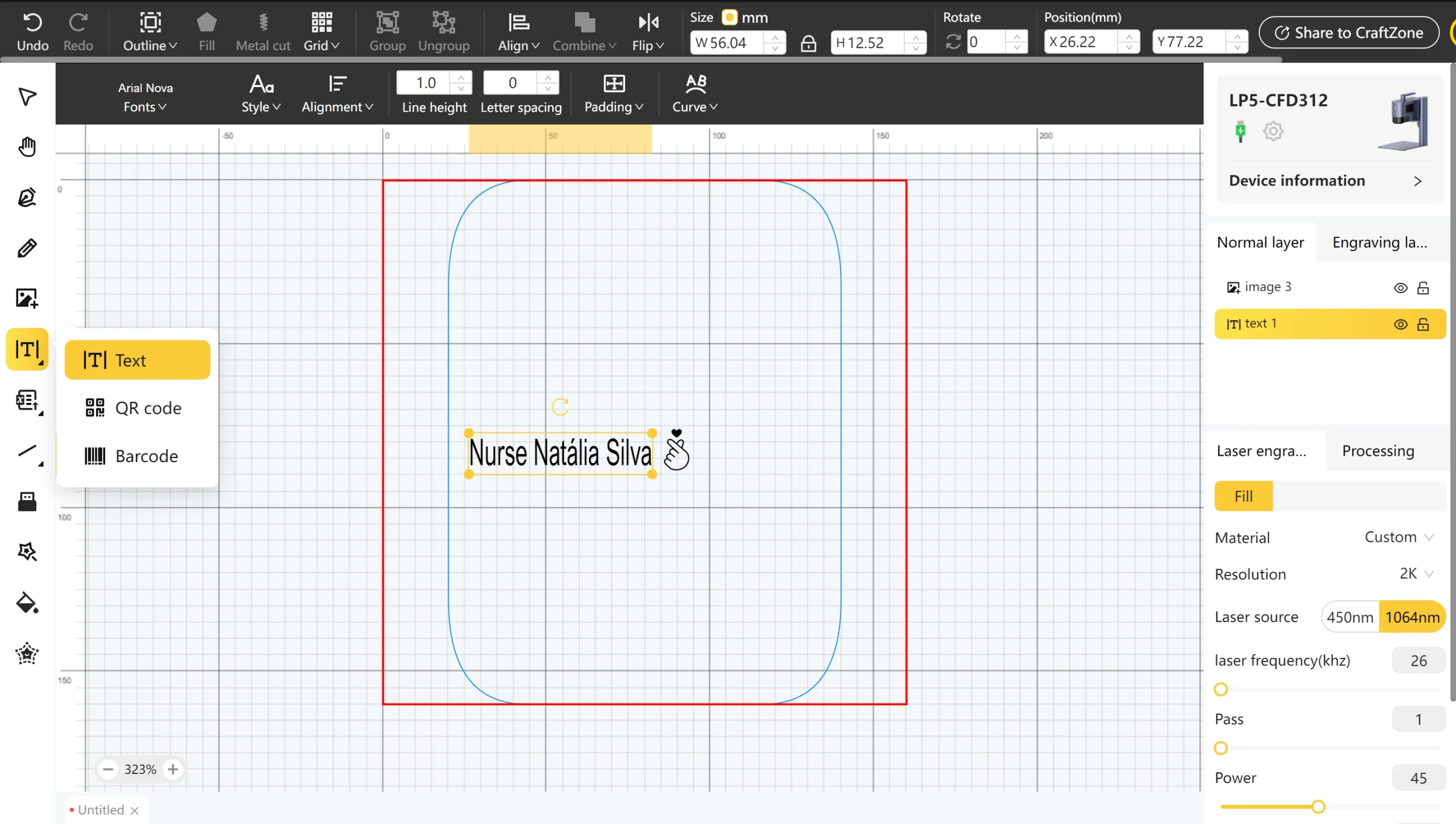

Step1: Add a name!
How to Make It:
- Open the LaserPecker software.
- Go to the “Text” tab and write what you want.
- Set the desired dimensions.
- Apply the settings as shown in the example image.
Settings 1
FillMetal
- Engraving Method
- Fill
- Material
- Metal
- Resolution
- 2 K
- Power
- 45%
- Depth
- 45%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 26

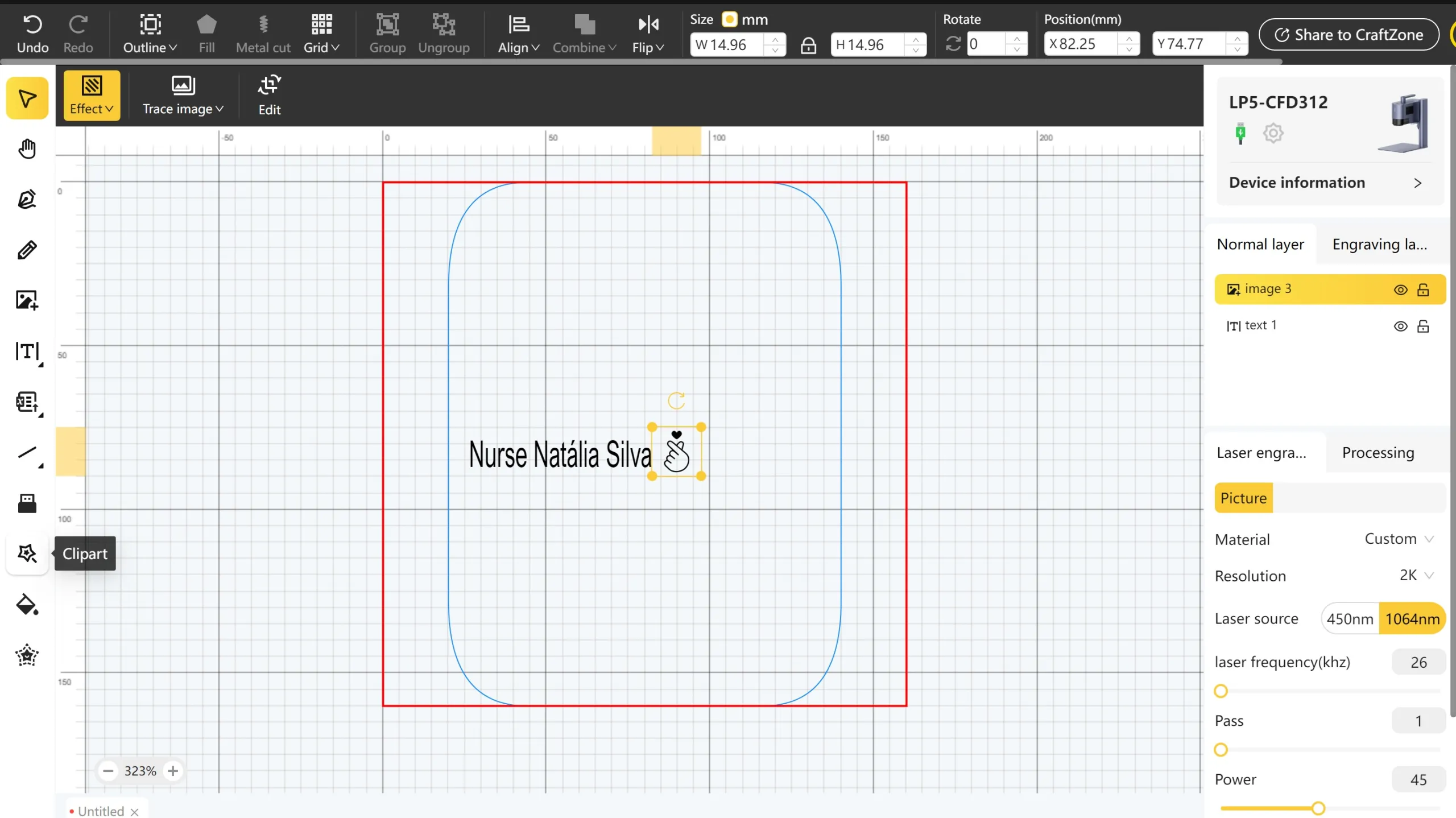

Step2: Add an Icon!
How to Make It:
- Go to the “Clipart” and pick an icon available there!
- Set the desired dimensions and put is beside your text.
- Apply the settings as shown in the example image.
Settings 1
PictureMetal
- Engraving Method
- Picture
- Material
- Metal
- Resolution
- 2 K
- Power
- 45%
- Depth
- 45%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 26
Step3: Preview

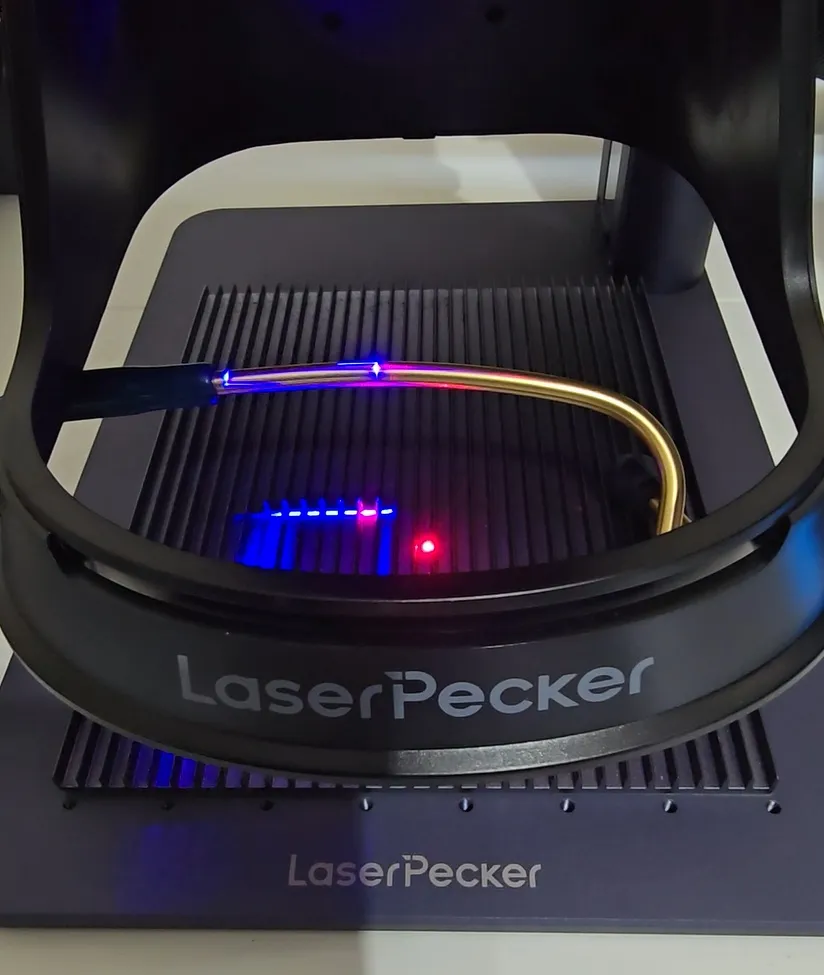

If you're going to engrave a stethoscope, try to keep it leveled on the LP5 base. Run a preview and make sure the focus is correctly set on the area you want to engrave.
