Florals-Color Engraving
How-to
- Machine
- LP5
- Material
- Metal
- Size
- 35 x 35 mm
- Material Information
- Stainless Steel
- Software Used
- LaserPecker Design Space IOS
- Production Time
- 3 min
- Engraving Difficulty
Design Files
2025/05/06 19:01218
Introduction
Colorful pattern engraving without using pigments, let's see if it can be achieved!
How-to Tutorial
Step1:

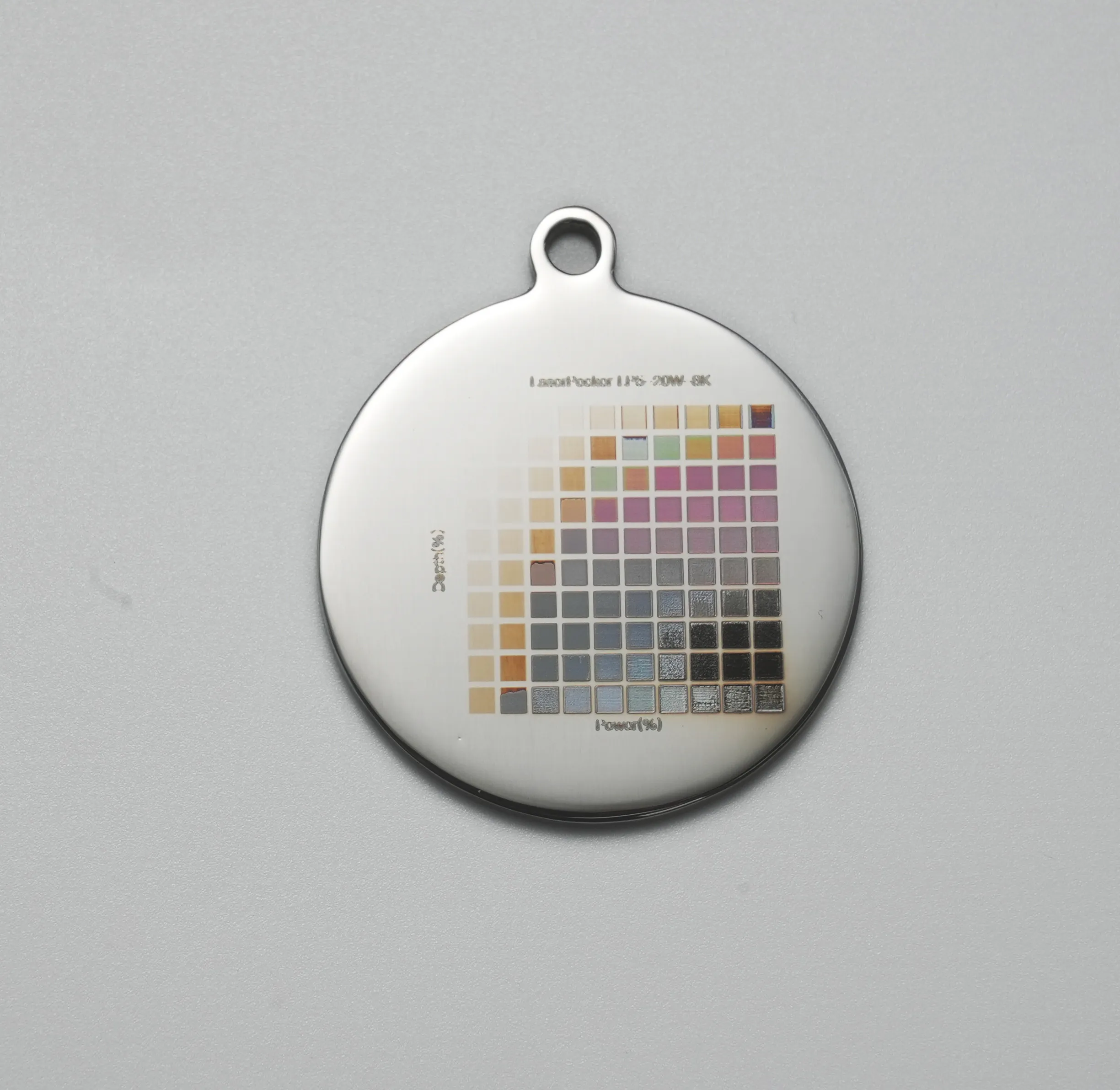

Before the official engraving, a Material Array Test is required to determine the colors produced on the material under different parameters. The complete color engraving process and detailed operation instructions can be found on the official LaserPecker YouTube channel.
Step2:

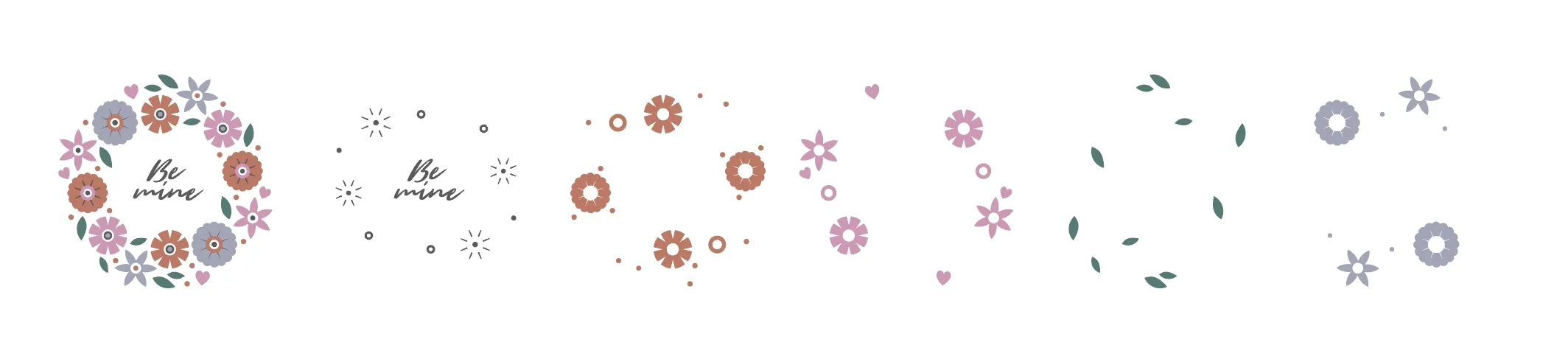

After confirming the parameters corresponding to each color and setting the engraving parameters for each layer, the official engraving can begin.
Note: Since the colors are affected by factors such as machine model, focal length, and material, the parameters are for reference only.
Settings 1
FillMetal
- Engraving Method
- Fill
- Material
- Metal
- Resolution
- 8 K
- Power
- 64%
- Depth
- 54%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 60
Settings 2
FillMetal
- Engraving Method
- Fill
- Material
- Metal
- Resolution
- 8 K
- Power
- 82%
- Depth
- 32%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 60
Settings 3
Fill
- Engraving Method
- Fill
- Resolution
- 8 K
- Power
- 100%
- Depth
- 21%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 60
Settings 4
FillMetal
- Engraving Method
- Fill
- Material
- Metal
- Resolution
- 8 K
- Power
- 100%
- Depth
- 54%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 60
Settings 5
FillMetal
- Engraving Method
- Fill
- Material
- Metal
- Resolution
- 8 K
- Power
- 100%
- Depth
- 54%
- Pass
- 1
- Module Type
- 20W 1064nm
- Laser Frequency
- 60
Step3:

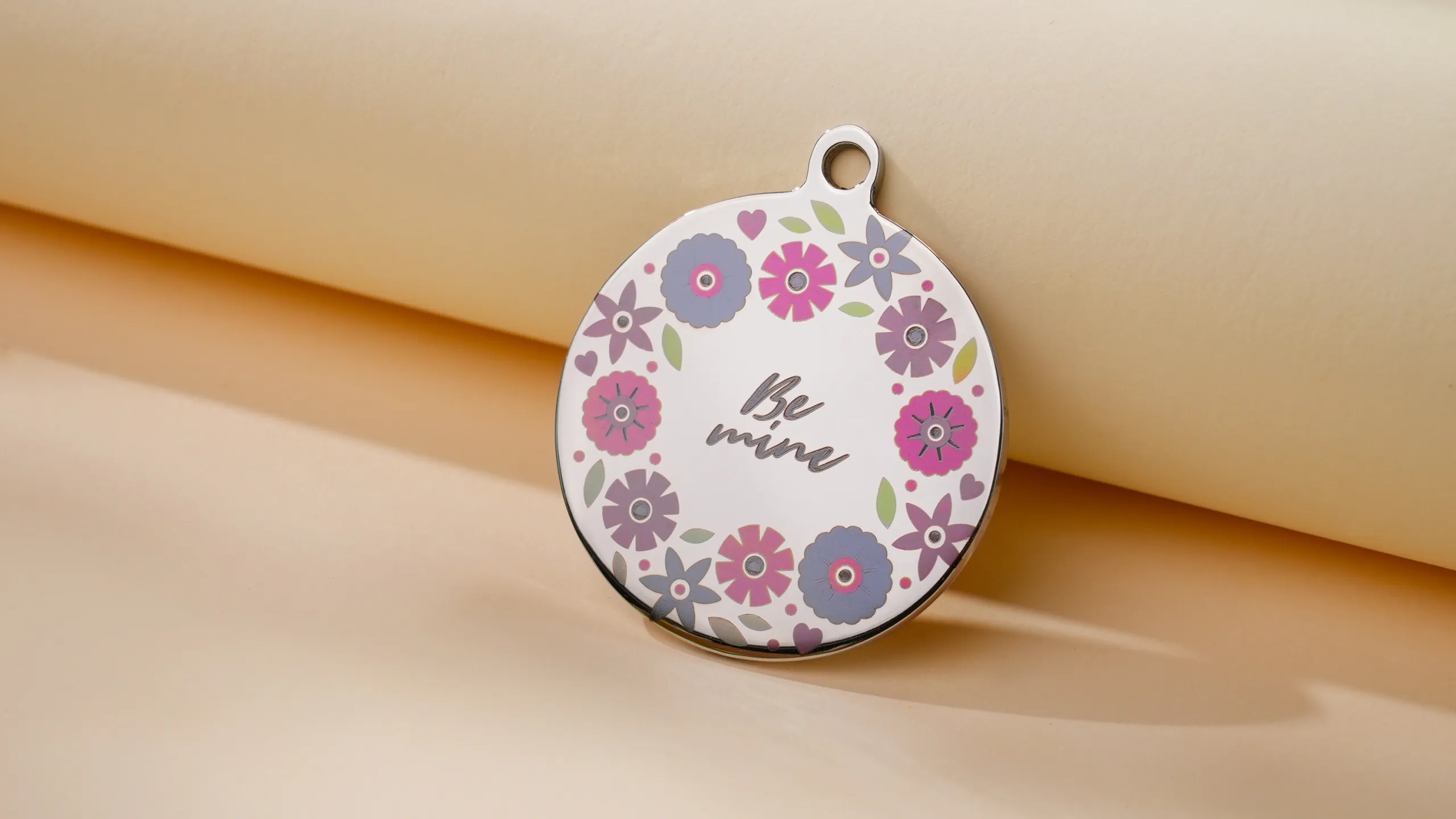

After the engraving is completed, a colorful pattern is obtained.
