Falling in Love with You - LED Light - Working Spotify Code - Plays Song

How-to
Machine
LP5
Material
Clear Acrylic
Size
106 x 139 mm
Material Information
3mm Clear Acrylic LED Lights from Amazon - Digital Design Created by Me
Production Time
30 min
Engraving Difficulty

Design Files

LP5-Cant Help Fallin In Love.png
2025/01/28 23:35108

Introduction

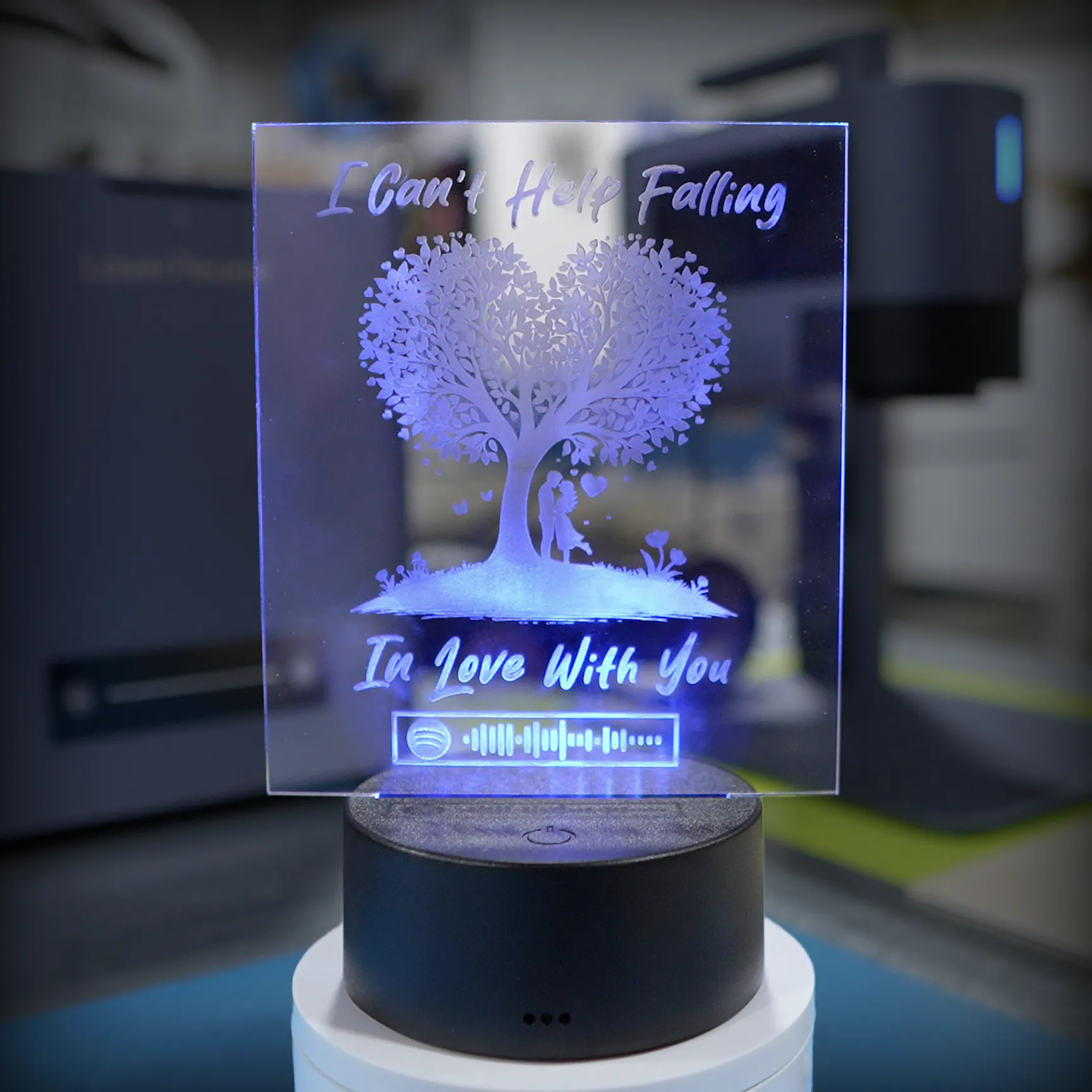

Clear acrylic LED light with working Spotify code that when scanned in the Spotify app will play the song Can't Help Falling in Love by Elvis. Full Video Tutorial: https://youtu.be/5s3MuJuoWA0

How-to Tutorial

1

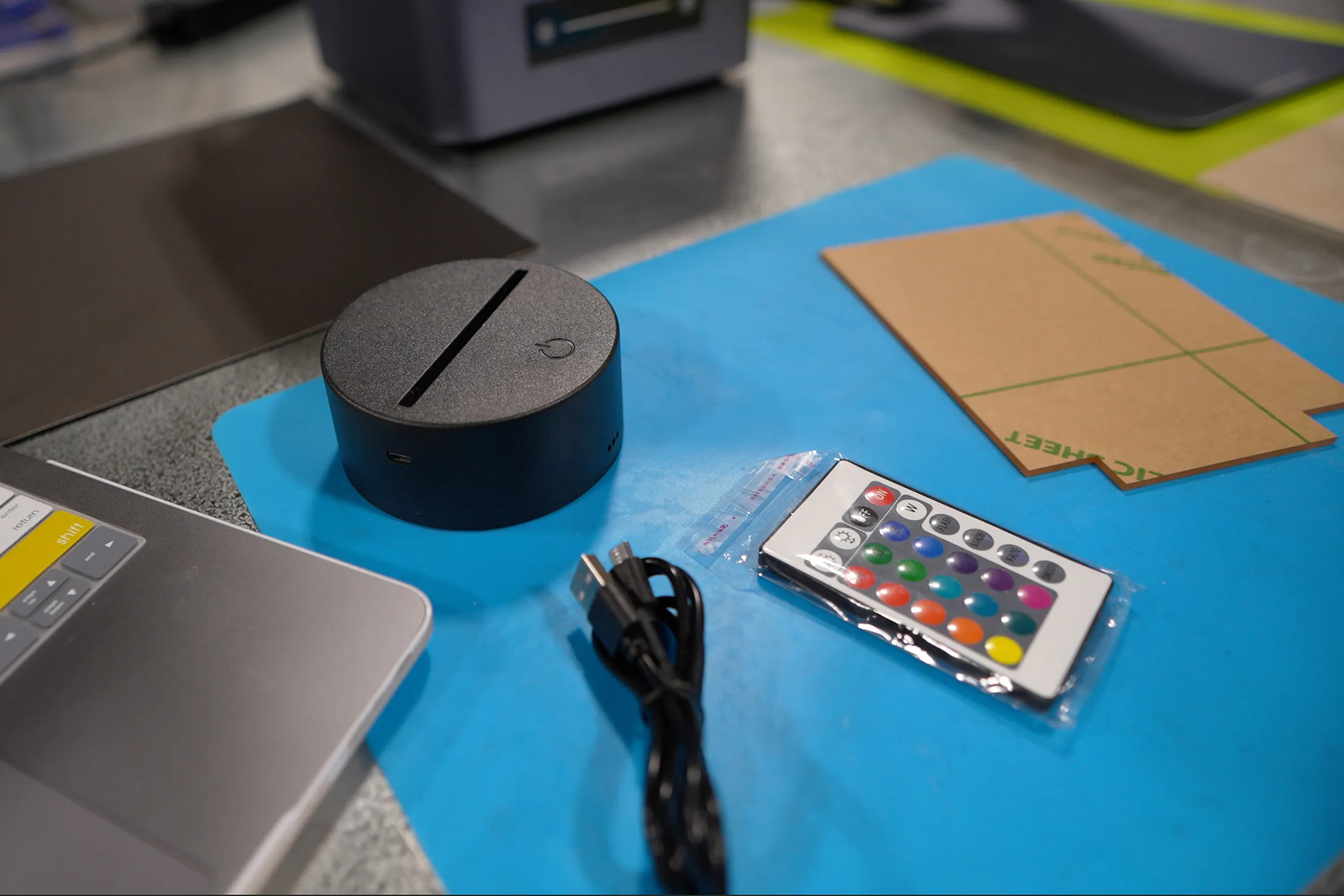

Step1: Gather Materials Needed

Materials Needed:

  • Cutting plate or something to protect your baseplate from scorching (ex: thick silicone mat or 3mm thick MDF board)
  • Black Cardstock Paper
  • Clear Acrylic
  • LED Base
  • Batteries / Charging Cord
  • Air Purifier

SAFETY FIRST: The fumes produced during this process are harmful to your health. Make sure you are in a well ventilated area and are mindful to use an air purifier and a safety shield/glasses for your protection.

Settings 1


Engraving Method
Resolution
2 K
Power
28%
Depth
26%
Pass
1
Module Type
20W 450nm
2

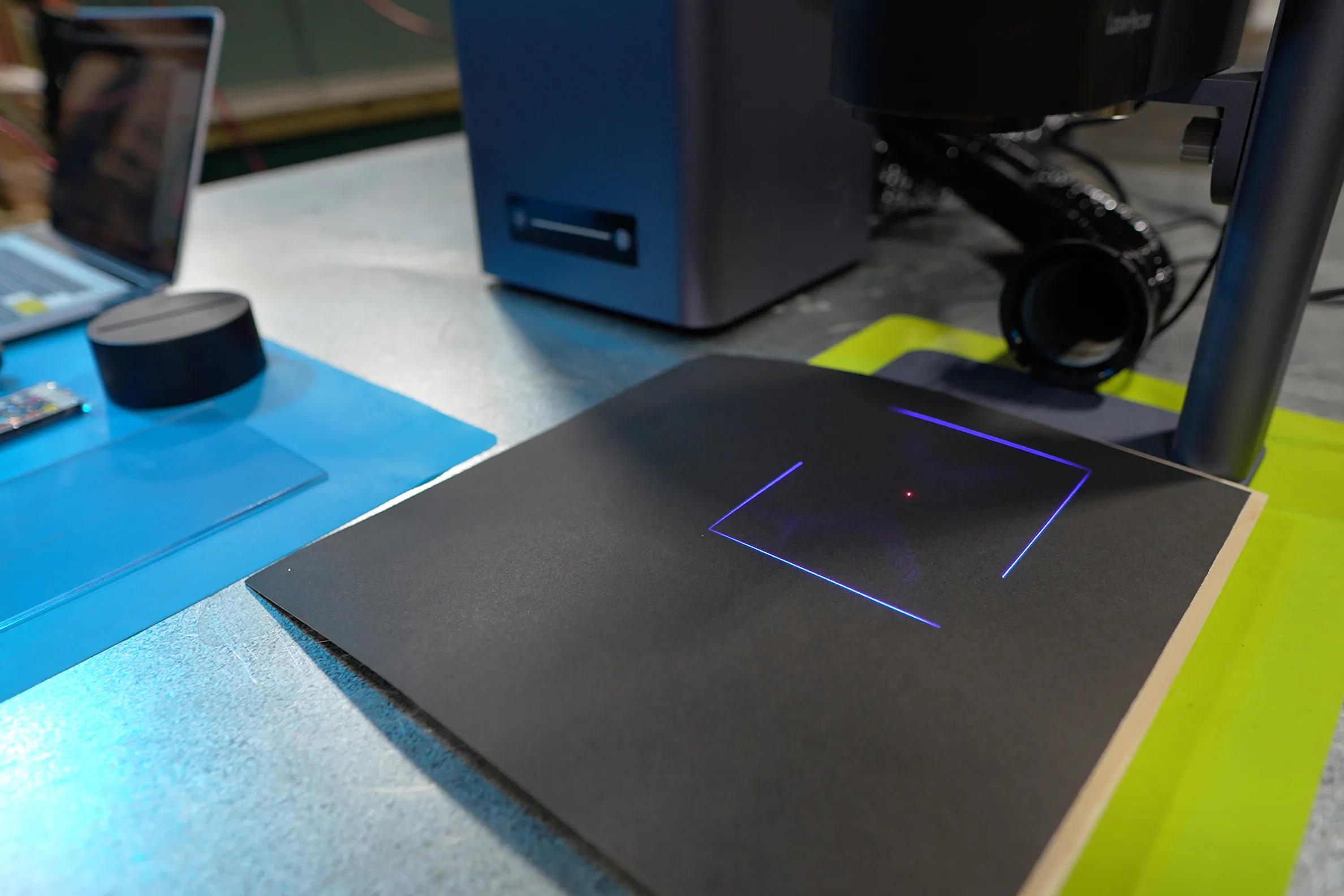

Step2: Set the Focal Point BEFORE you put the Clear Acrylic in place

IMPORTANT: Place something down to protect your baseplate from scorching. Then set the Focal Point directly to the Black Cardstock paper BEFORE you put the Clear Acrylic down. Then place the acrylic piece on top of the black cardstock paper then size and align your image accordingly. DO NOT CHANGE THE FOCAL POINT

3

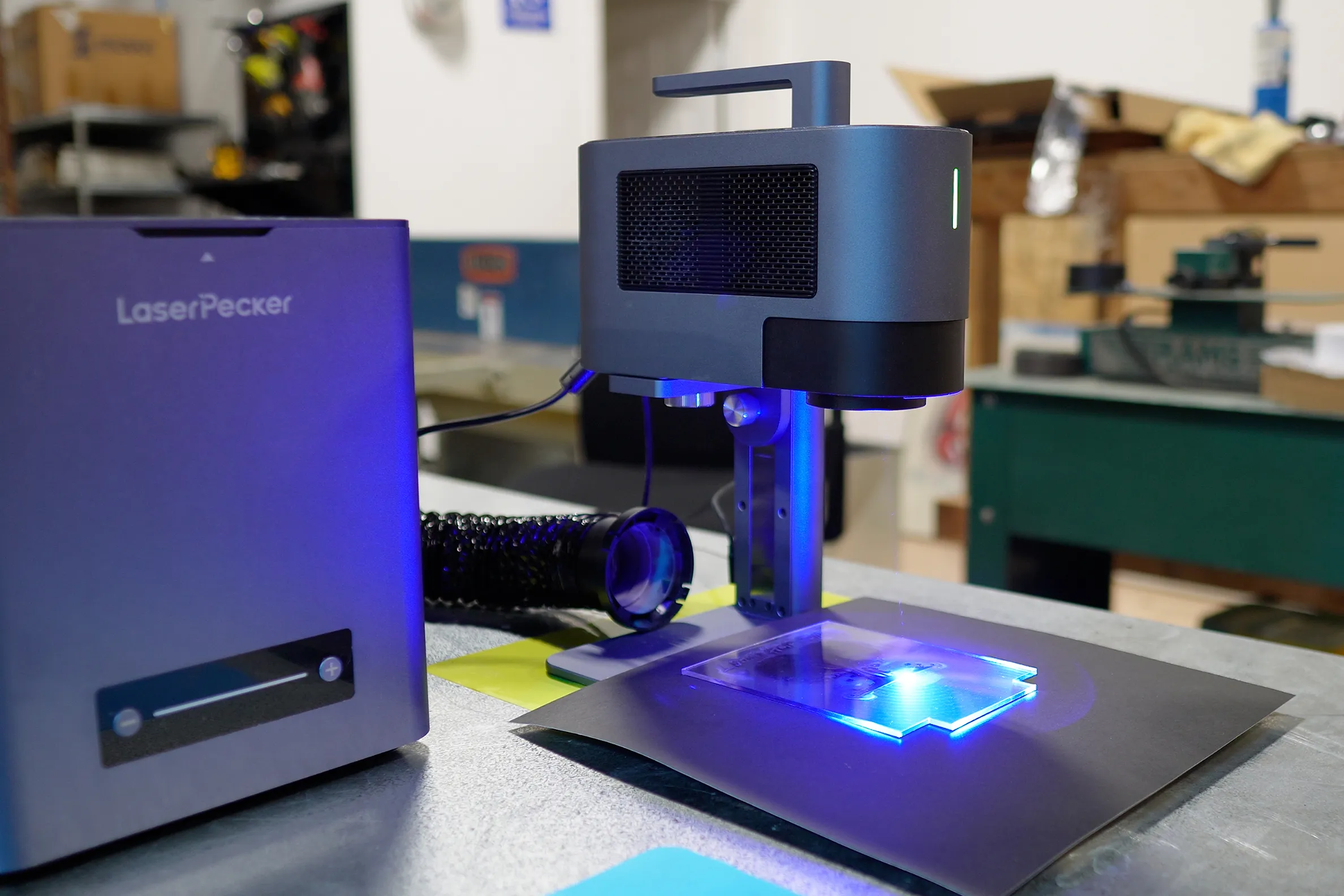

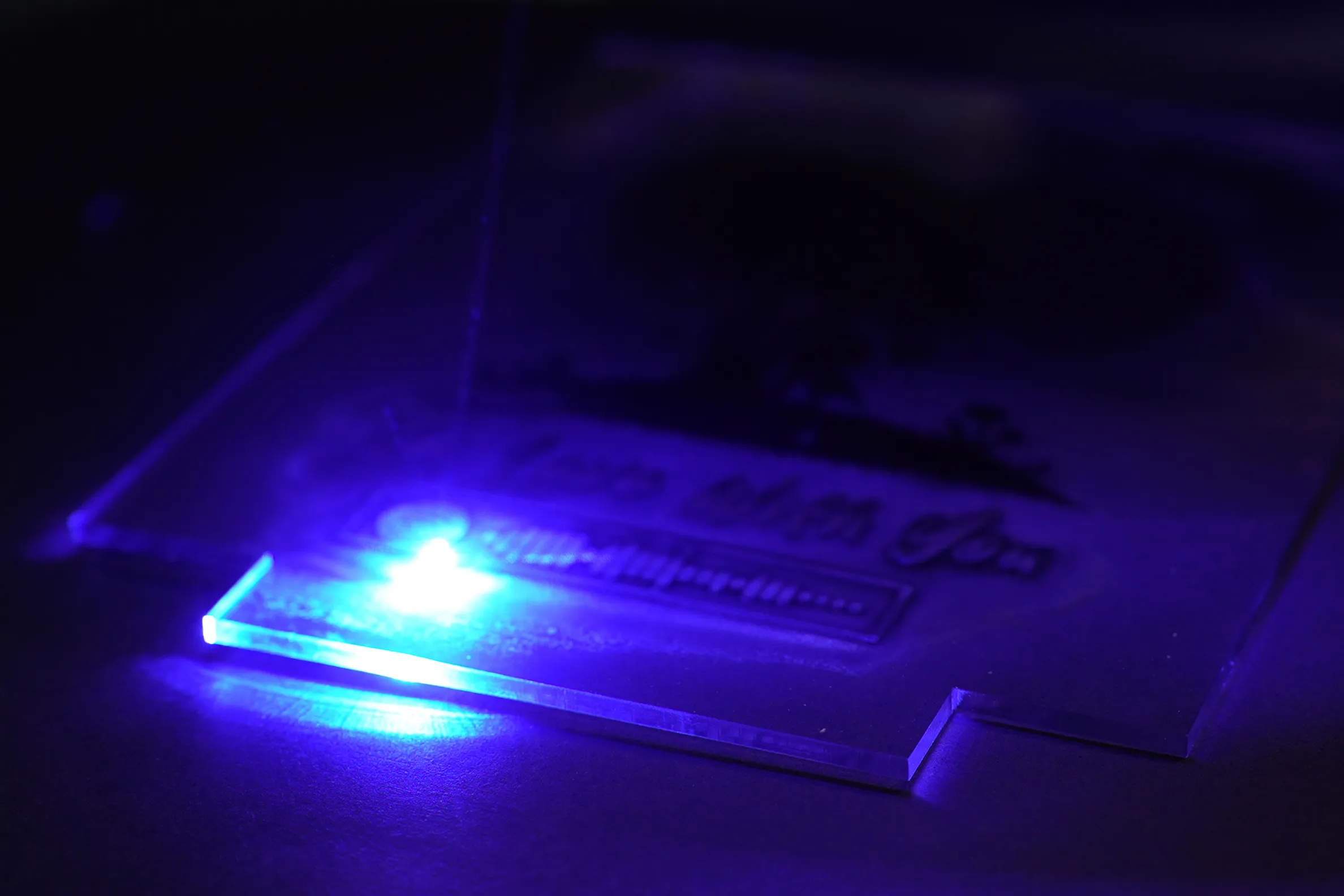

Step3: Engrave the Design onto the Acrylic and Gently Wash After

Engrave the Design onto the Acrylic using the above mentioned settings. This process will leave visable soot on the acrylic which can easily be removed using soap and lukewarm water. Because acrylic will scratch easily be sure to dry with a soft cloth. Place into the LED base to finish your piece.

*3mm Clear Acrylic LED Lights from Amazon - Digital Design Created by Me *Feel Free to Use for Personal Use or to make to Sell * Just PLEASE Do Not Sell My Digital Design File*

HOW TO PLAY THE MUSIC:

  1. Make sure your LED Sign is powered on and lit up
  2. Open the Spotify App on your phone
  3. Click on the Search Icon
  4. Tap the Camera Icon in the app
  5. Aim your phones camera at the Spotify symbol on the design (be sure it can see the whole spotify code)
  6. The song should auto launch and begin playing on its own.
