Halloween Coaster Set
- Machine
- LP4
- Material
- Stone/Slate
- Size
- 101 x 101 mm
- Material Information
- I used slate coasters purchased from Amazon. I did not pre-treat any of the coasters to get my end result.
- Software Used
- LaserPecker Design Space IOS
- Production Time
- 60 min
- Engraving Difficulty
Design Files
Introduction
How-to Tutorial

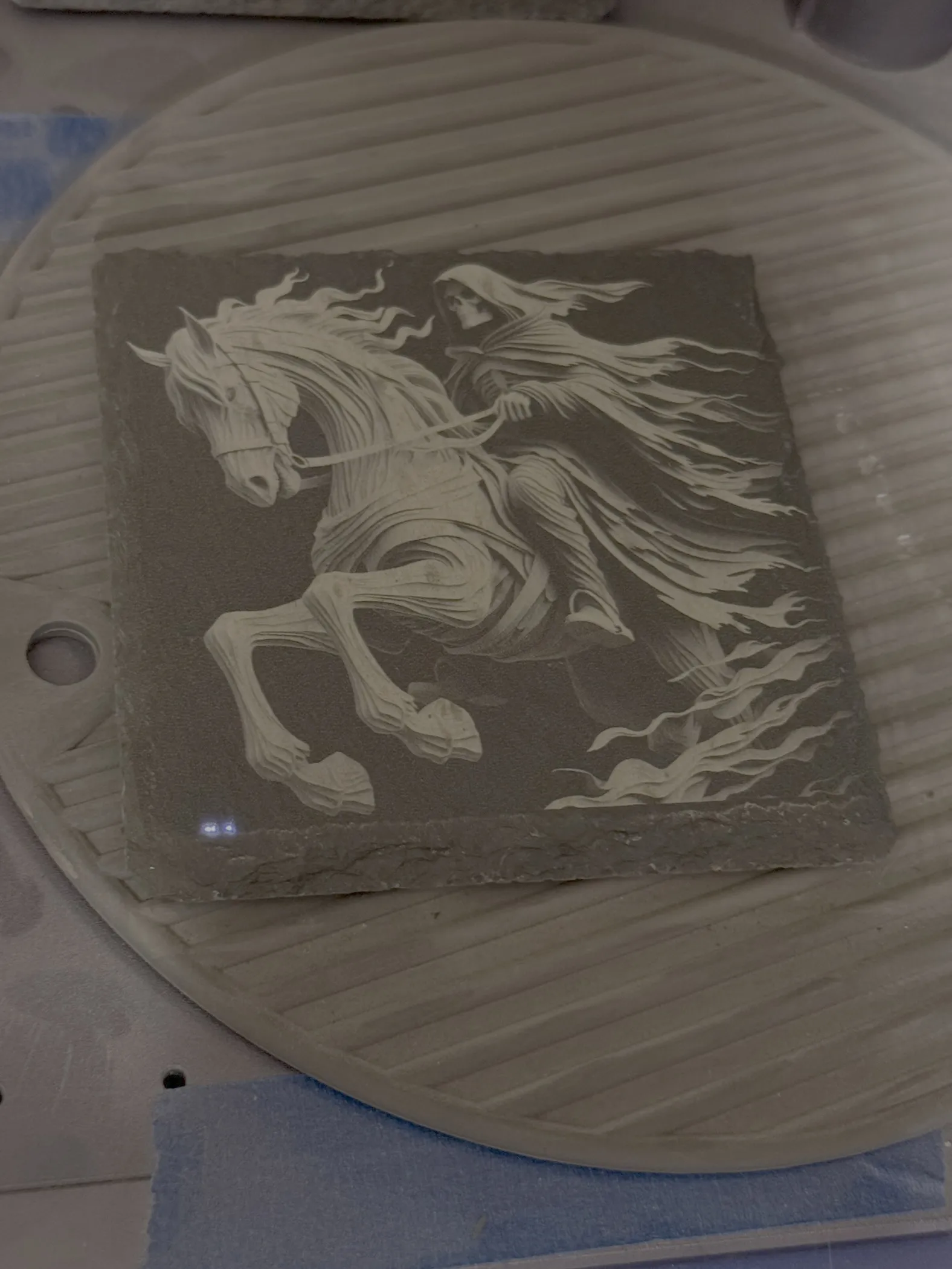

Step1: Place Coasters on Engraving Plate and Size the Viewing Box to just go over the edge of the coaster
DO NOT Pre-Treat or Sand Coasters beforehand. (Coating Coasters Before Engraving Releases Fumes that are Seriously Harmful to your Health) Place Coasters on Engraving Plate and Size the Viewing Box area just enough to go over the edge of the coaster. Make sure each image is inverted and select dithering. Each coaster will take roughly an hour due to the amount of detail and shading. All images files are clearly marked (Mummy, Horseman, Werewolf and Vampire, Witch, and Witch-Pre Inverted and Ready to Etch) LP Sofware did not do as well with dithering levels on the not inverted version of the witch *Please use pre inverted image file for my results as this one already has contrast adjusted as well
FOR LP2 (5w Diode Laser): Use 100% Power and 5% Depth, 1 Pass
Settings 1
PictureStone
- Engraving Method
- Picture
- Material
- Stone
- Resolution
- 2 K
- Power
- 100%
- Depth
- 60%
- Pass
- 1
- Module Type
- 2 W 1064 nm
Step2: Rinse Coaster and Let Dry then Spray to Seal the Design

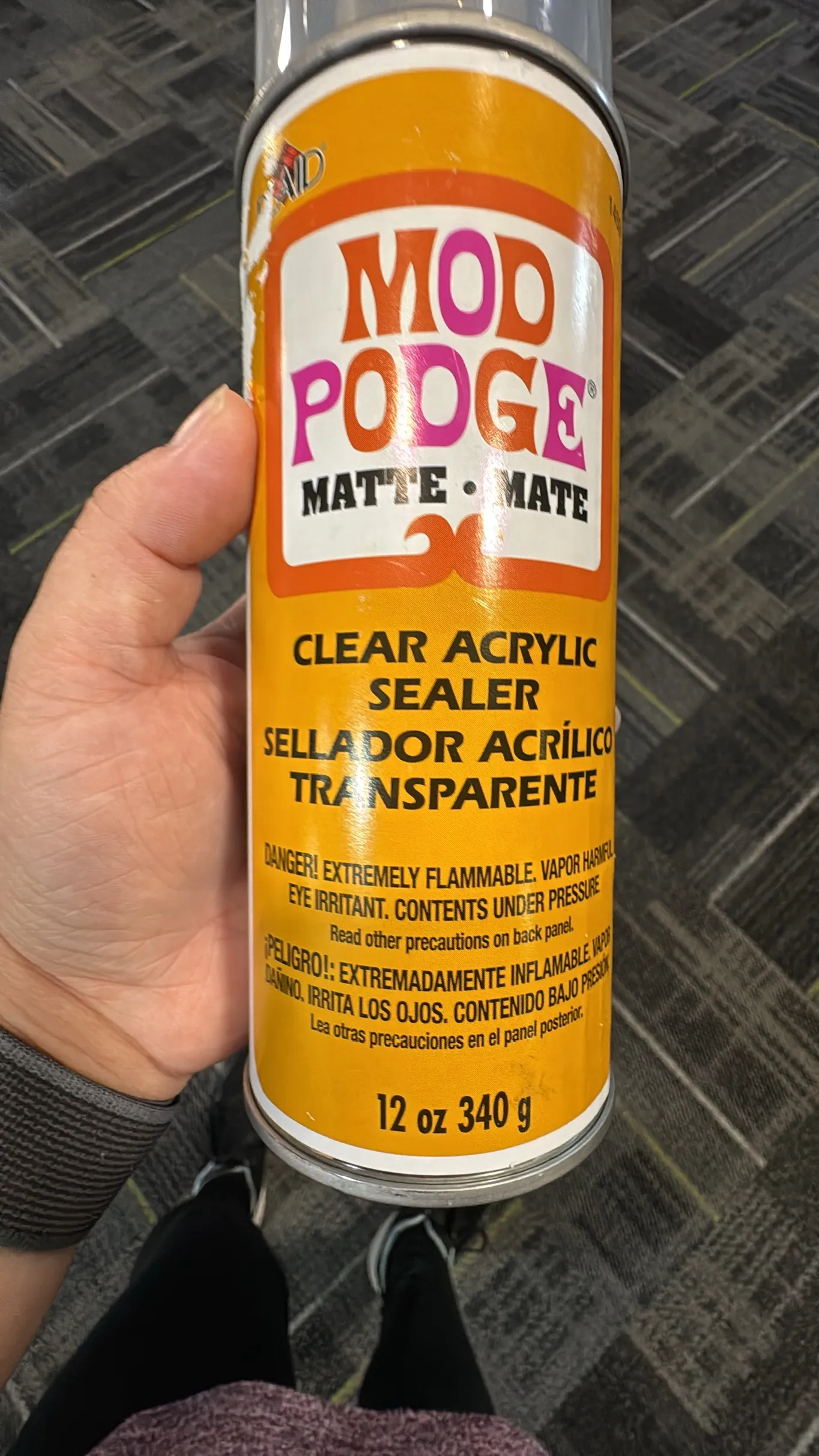

After each coaster finishes rinse them under water to remove any dust from etching. Once dry spray on a light layer of Mod Podge Matte sealer then let dry for about 20-30 minutes.
