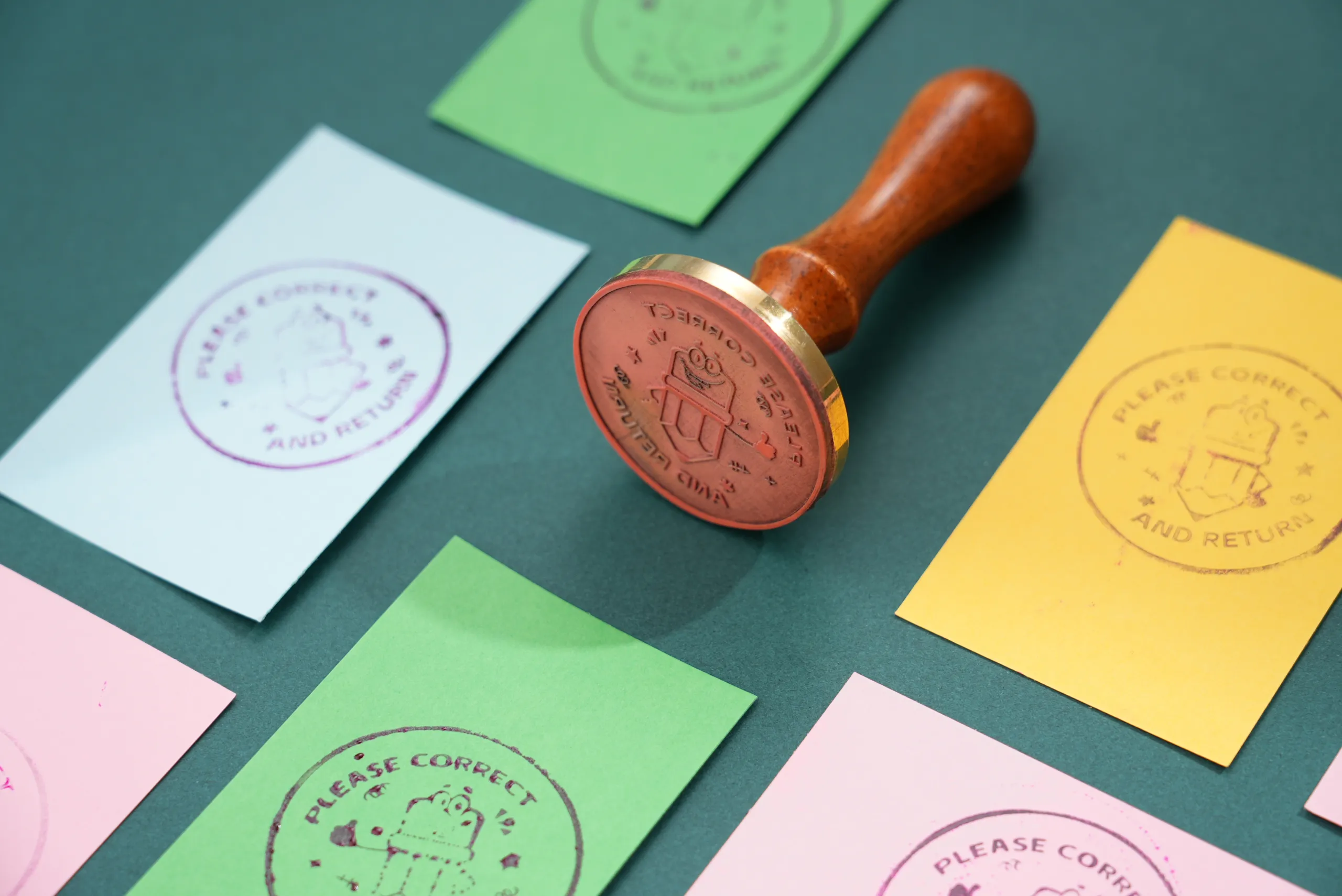

Try making cute stamps with Laserpecker LP5! You can laser cut the rubber and do deep engraving.
Basic Information
| MachineLP5 |
| MaterialPlastic |
| Size50 x 50 mm |
| Software UsedLaserPecker Design Space PC |
| Production Time45 min |
| Engraving Difficulty |
How-to Tutorial
Step 1

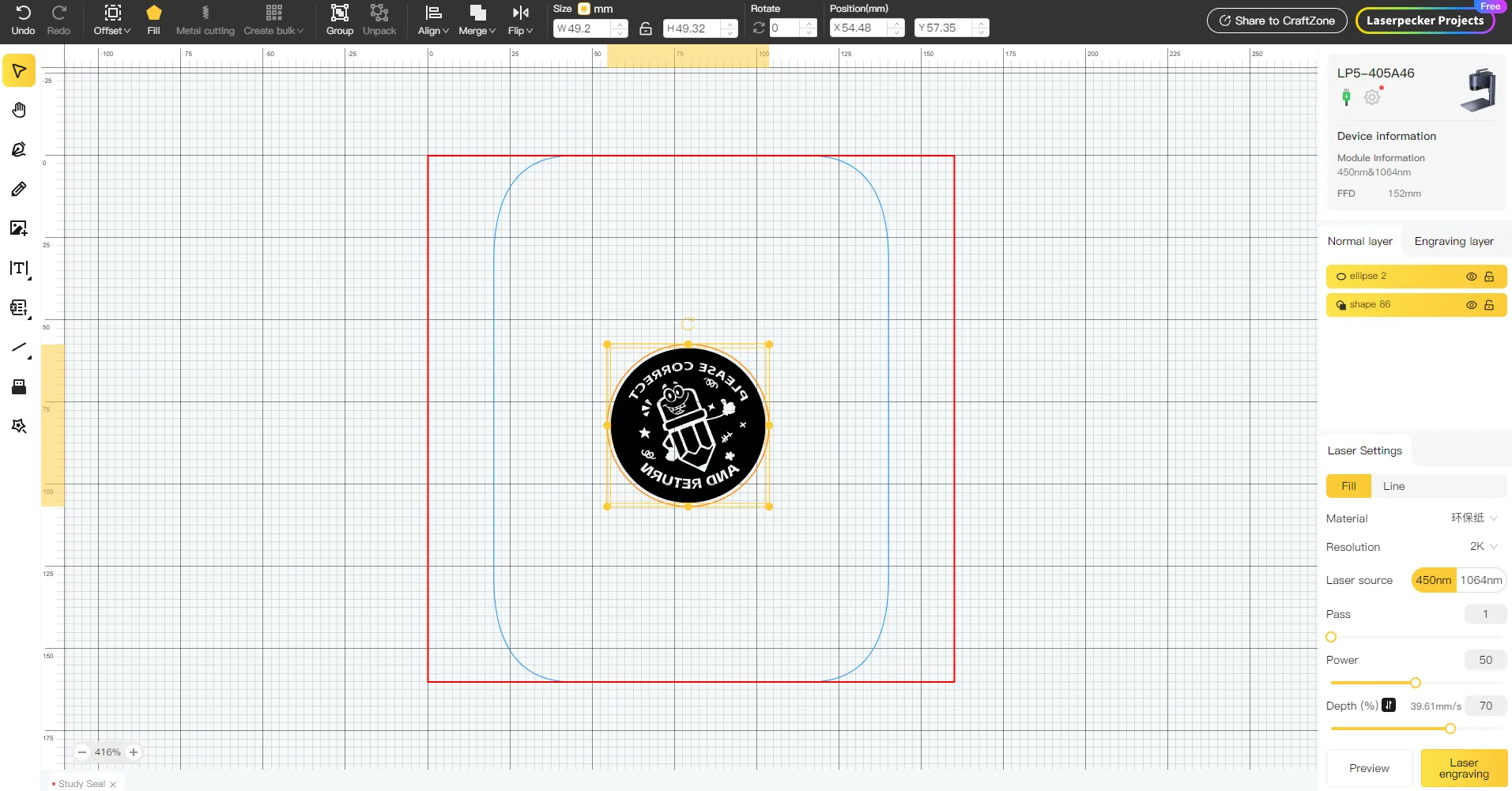

Connect the machine and open the file. Begin by placing a piece of 2mm rubber on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start engraving and cutting at the same time.
After the engraving is complete, use a toothbrush and cleaning agent to clean the dust from the surface, and finally attach it to the stamp base.
Settings 1
| Engraving MethodFill |
| MaterialPlastic |
| Resolution2 K |
| Power50% |
| Depth70% |
| Pass1 |
| Module Type20W 450nm |
Settings 2
| Engraving MethodLine |
| MaterialPlastic |
| Power70% |
| Depth80% |
| Pass100 |
| Module Type20W 450nm |
Design Files
LaserPecker Design Space V2.5.1 or above is recommended.
Study Seal.lp2
Open in LDSDownload
