LaserPecker
Mother's Day sign
How-to
- Machine
- LX1
- Material
- Wood
- Size
- 168 x 356 mm
- Material Information
- 3mm Basswood Plank
- Software Used
- LaserPecker Design Space PC
- Production Time
- 30 min
- Engraving Difficulty
Design Files
2024/05/06 18:5010
Introduction

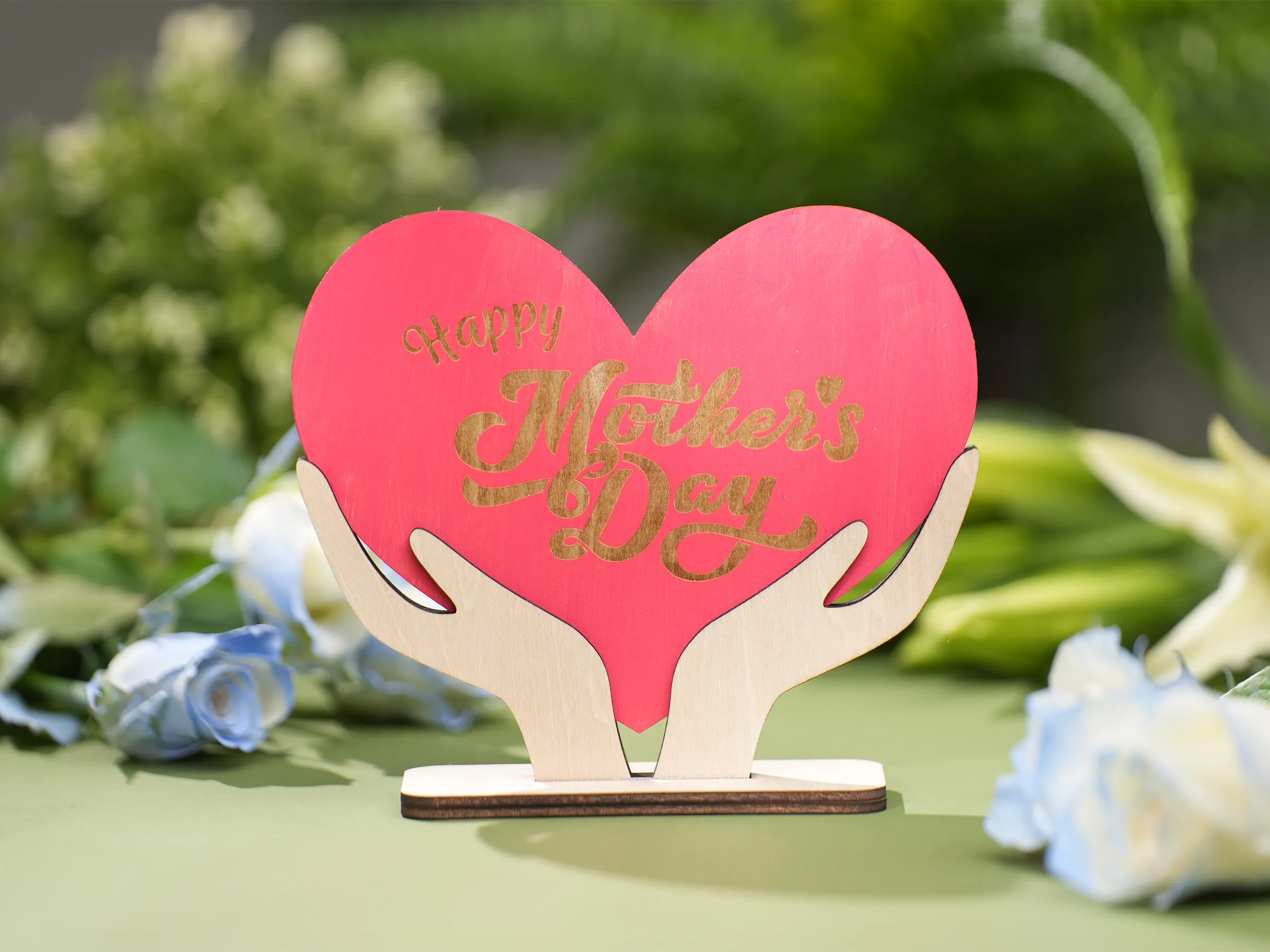

Let's create a Mother's Day sign to add some festive atmosphere.
How-to Tutorial
Step1:

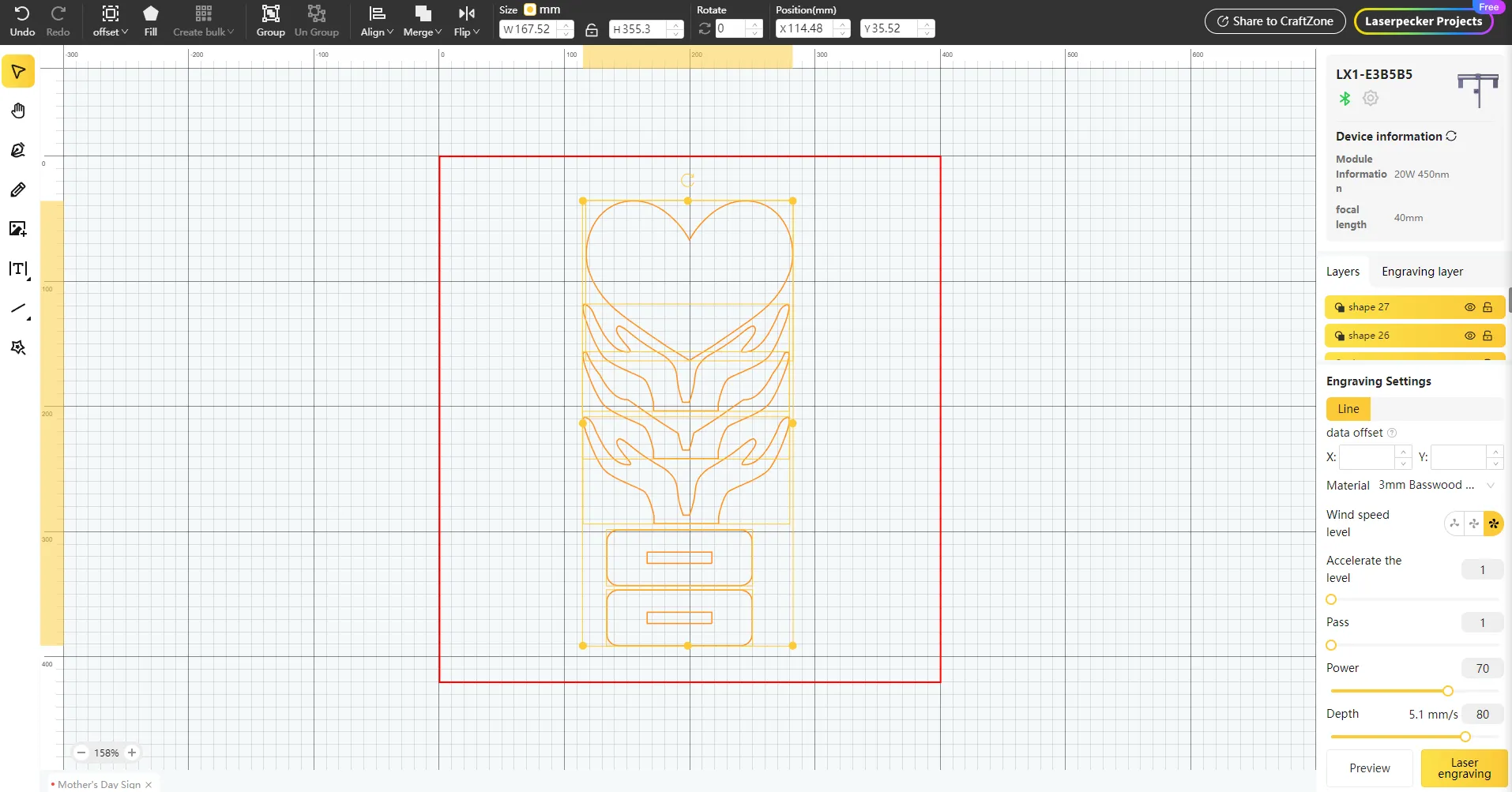

Open the file and connect the machine. Begin by placing a 3mm basswood plank on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.
This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.
Settings 1
LineWood
- Engraving Method
- Line
- Material
- Wood
- Power
- 70%
- Depth
- 80%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
Step2:

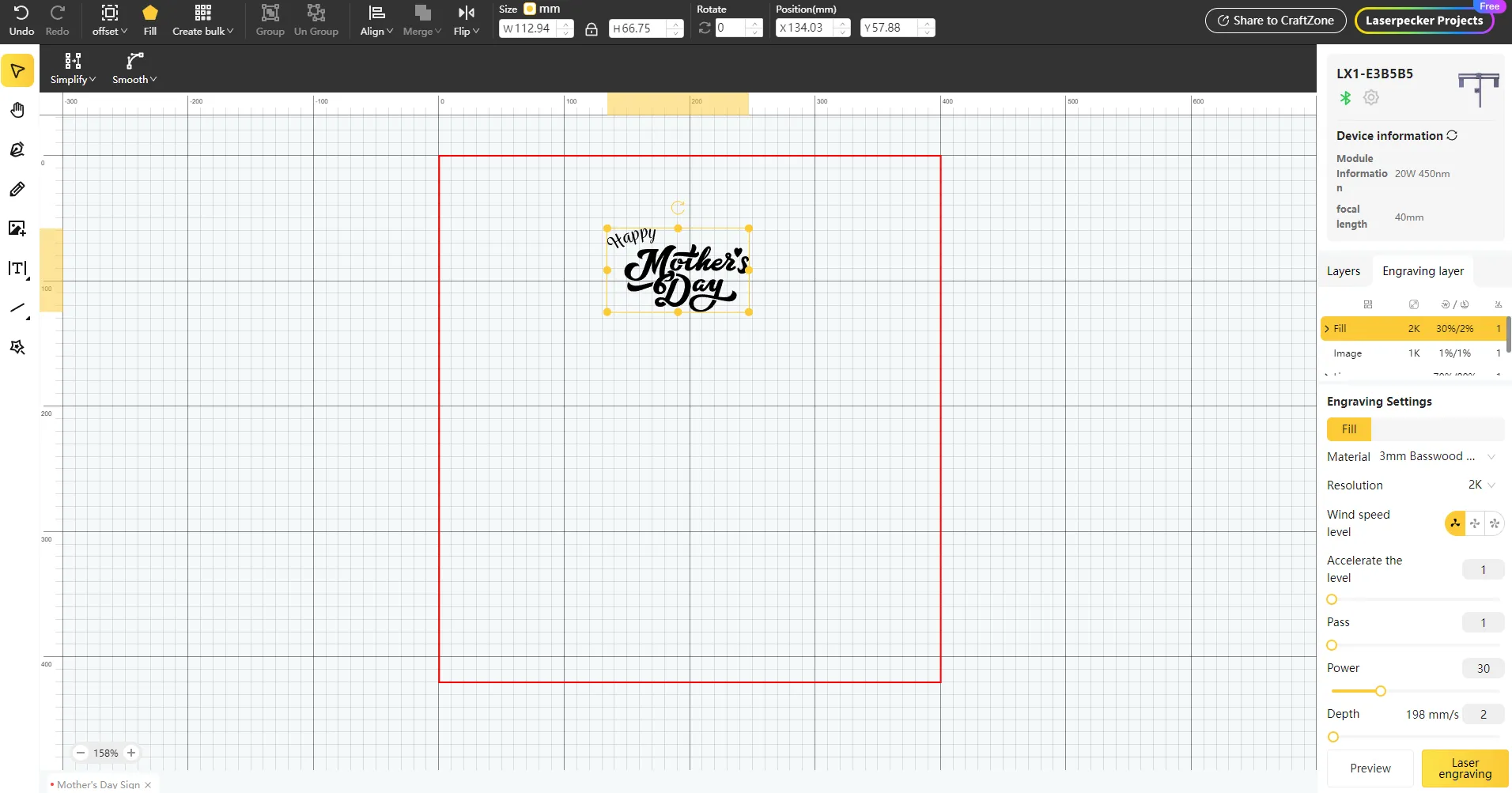

Paint the cut-out heart with the color, let it dry. Place it on the cutting plate, preview the appropriate position, and engraving the text.
Settings 1
FillWood
- Engraving Method
- Fill
- Material
- Wood
- Resolution
- 2 K
- Power
- 30%
- Depth
- 2%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
Step3:

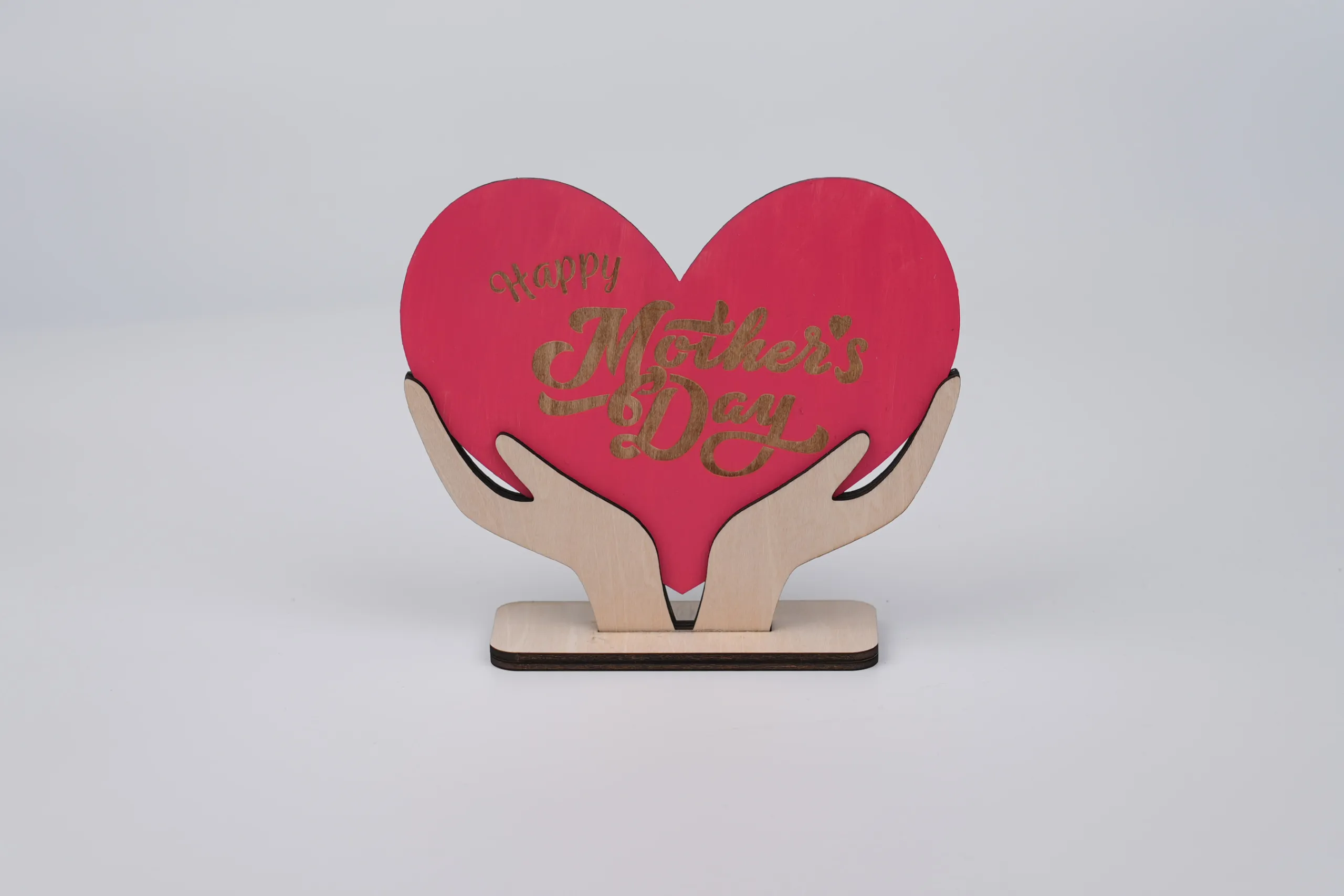

Assemble the cut parts together and use glue in the gaps to make it more sturdy.
Good Life
Mother's Day
