Transform a Mirror into a Masterpiece with your LaserPecker and Cheap LED base!!

How-to
Machine
LP2
Material
Glass/Mirror
Size
100 x 100 mm
Material Information
Both Mirror and the LED base were bought from Amazon. (I used the 5" mirrors) Mirrors: https://www.amazon.com/dp/B0C7MT9KRX LED Base https://www.amazon.com/dp/B0BB6S3FQ8
Software Used
LaserPecker Design Space Android
Production Time
10 min
Engraving Difficulty
2024/03/18 08:240

Introduction

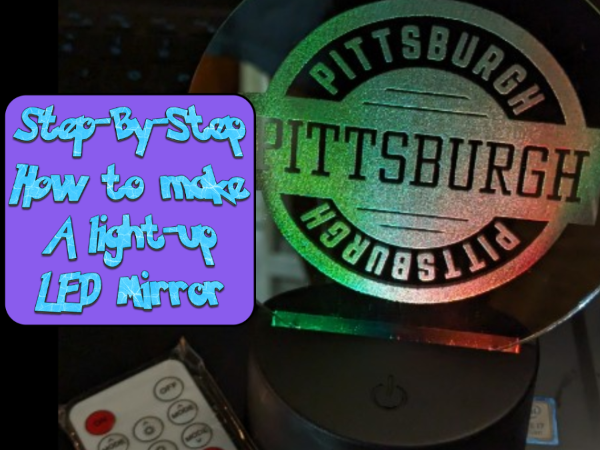

Here is an EASY step-by-step tutorial on how to make light-up glass mirror art!

How-to Tutorial

1

Step1: Reverse your art!

First, choose a design then using your favorite photo editing software mirror the image (If using Android you may have to download an app to do this or find somewhere online).

Settings 1

LineGlass Mirror

Engraving Method
Line
Material
Glass Mirror
Power
100%
Depth
20%
Pass
1
Module Type
5 W 450 nm
Other Parameters
(no engraving during this step)
2

Step2: Prep the BACK of the mirror and center for engraving

Prep the BACK SIDE of the mirror.  I do this by lightly wiping the backside with rubbing alcohol

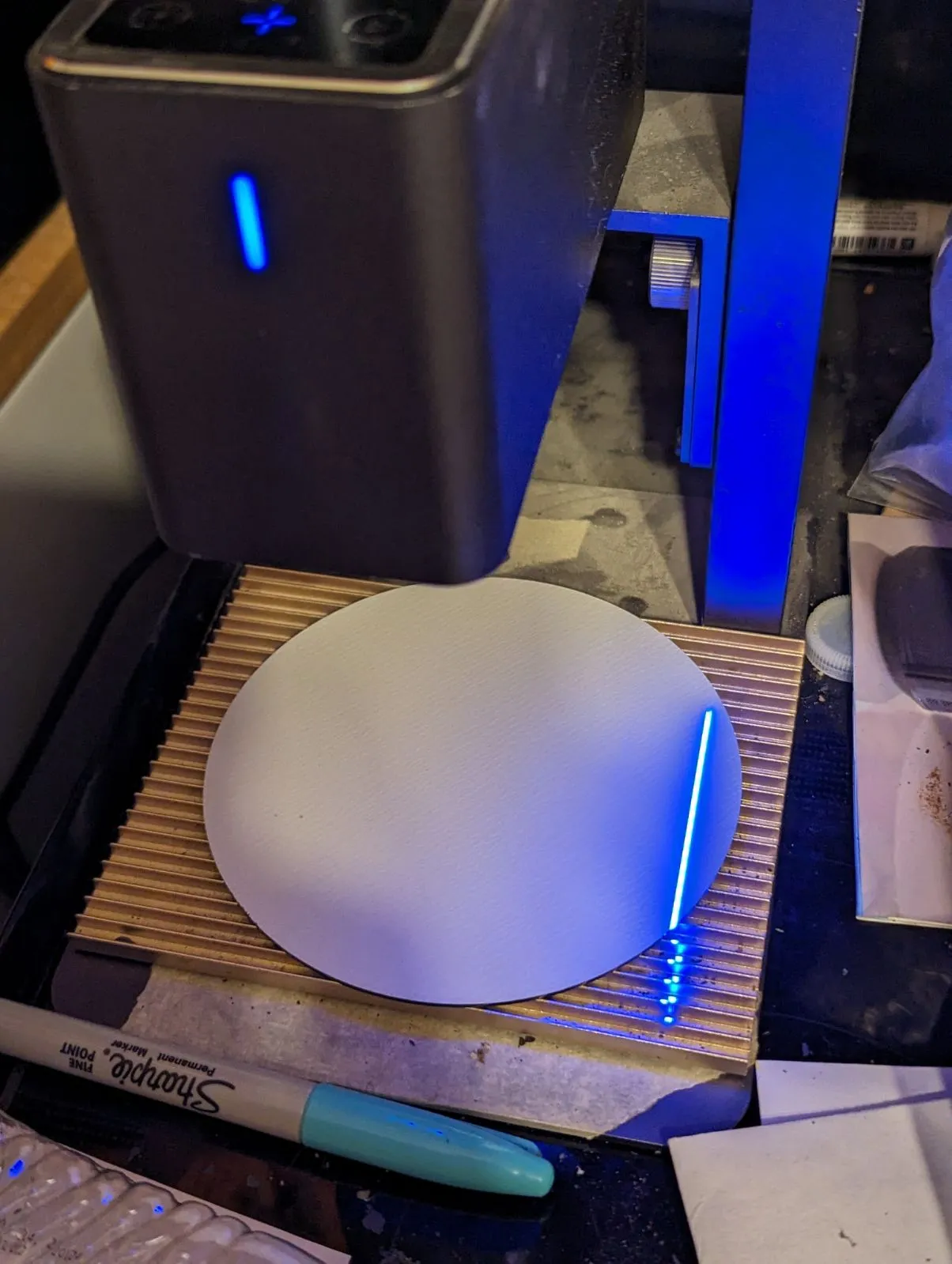

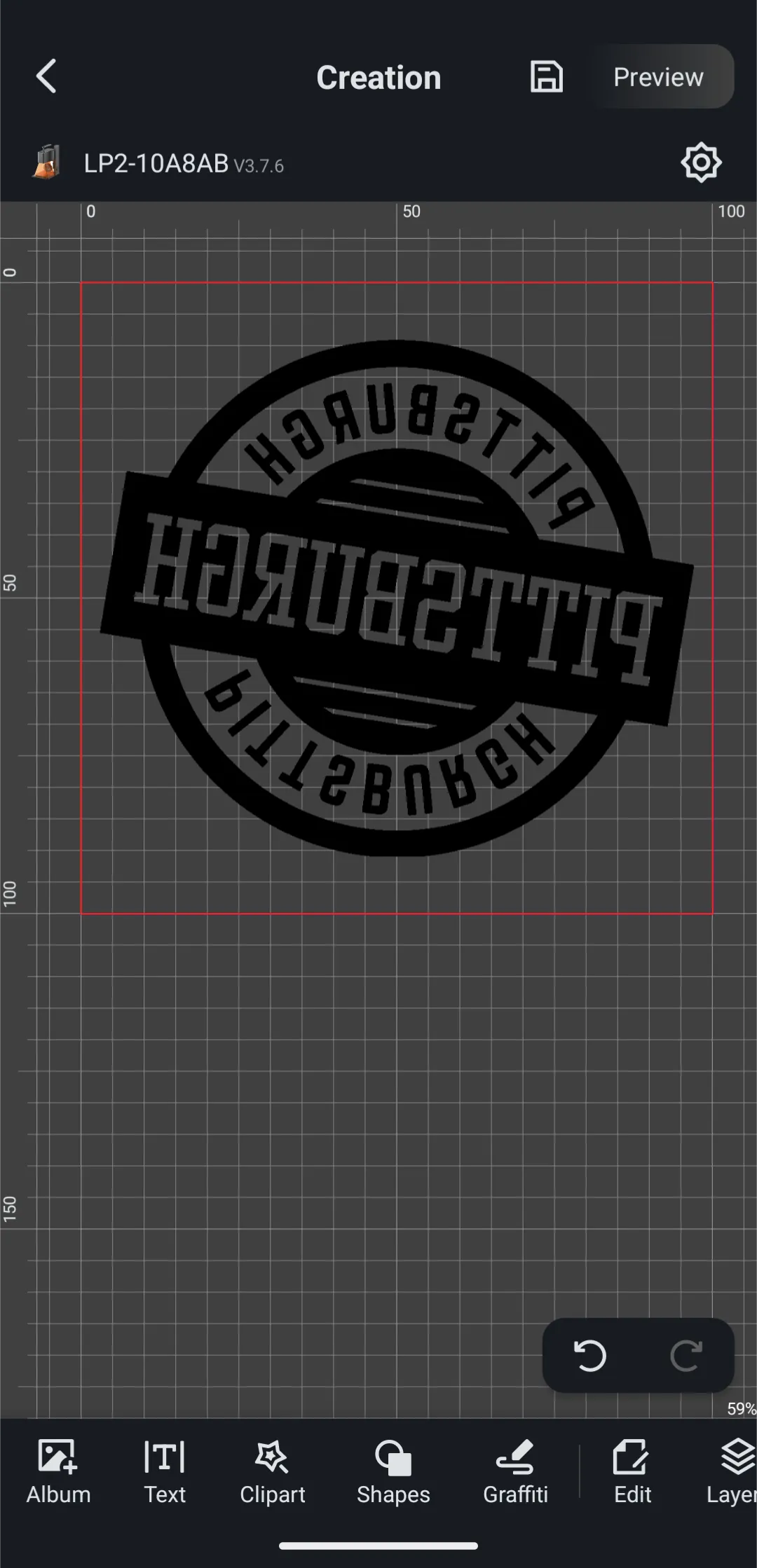

Next I add the mirrored image to LaserPecer Design Space and adjust it in the preview so it will be centered.  Remember that the mirror surface should be down and the back of the mirror should be on top.

Settings 1

LineGlass Mirror

Engraving Method
Line
Material
Glass Mirror
Power
100%
Depth
20%
Pass
1
Module Type
5 W 450 nm
Other Parameters
(no engraving during this step)
3

Step3: Engrave!

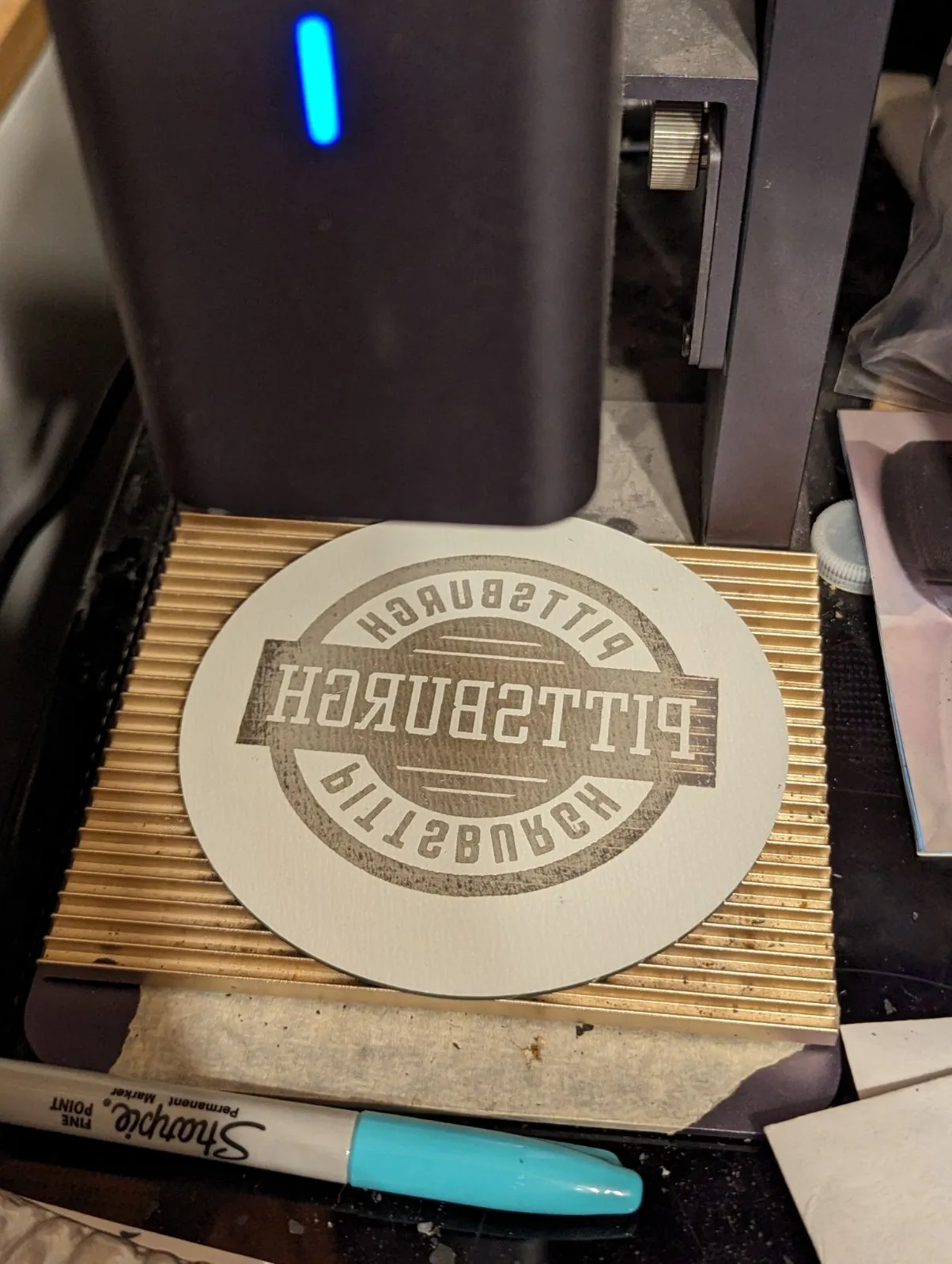

Now after making sure that the mirror is centered and that the back of the mirror is on top (mirrored surface is facing down) make sure to put on protective eyewear (always important especially when dealing with mirrors!)

I use 100% Power / 20% Depth / 1 Pass but this could differ based on the mirror you purchase.  These settings seem to work best for the mirrors I am using.

Settings 1

LineGlass

Engraving Method
Line
Material
Glass
Power
100%
Depth
20%
Pass
1
Module Type
5 W 450 nm
4

Step4: Add to the LED base

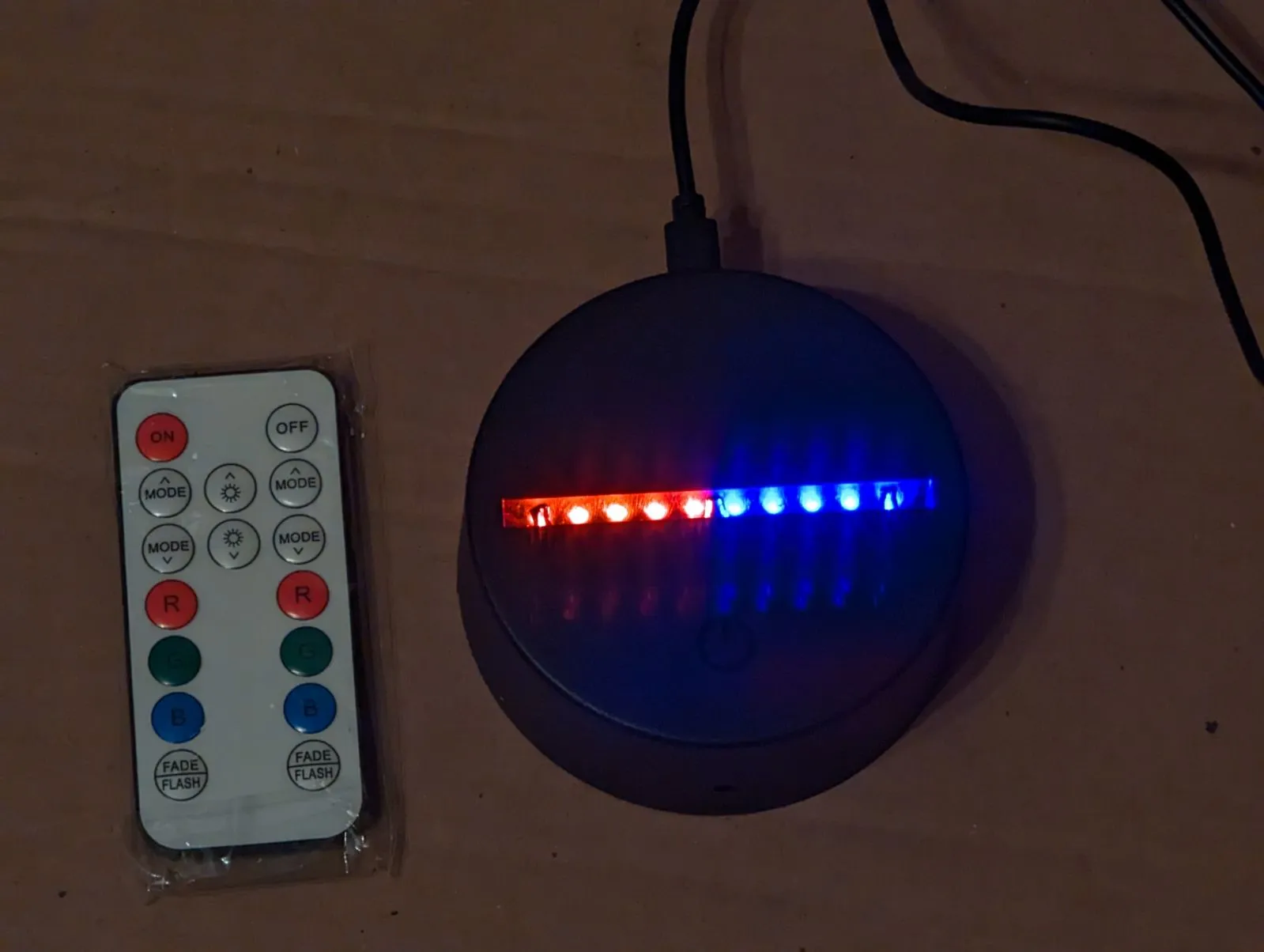

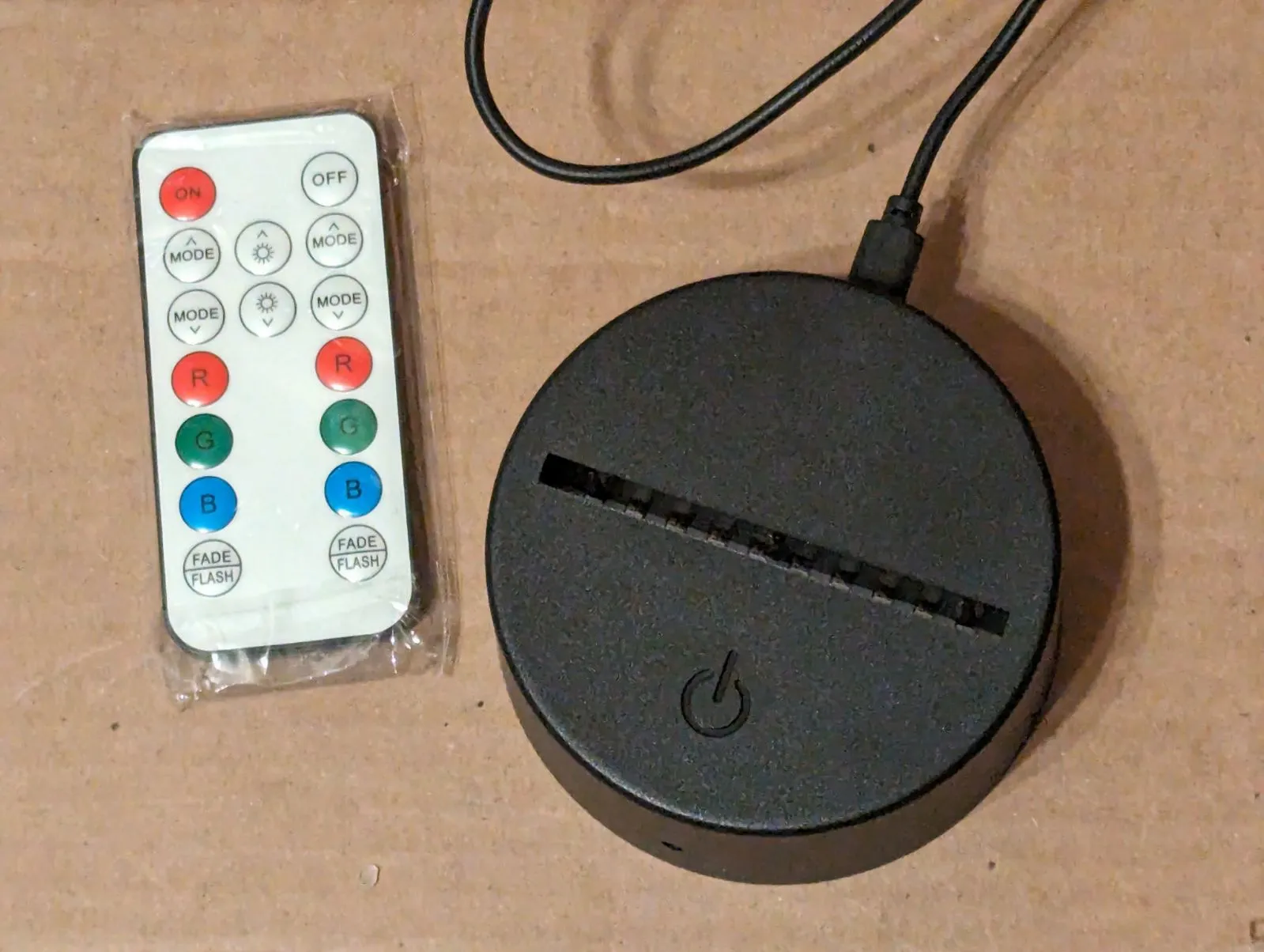

Here is a picture of the LED base I used.  It can be controlled by both USB or 3 AA batteries.  These mirrors fit perfectly into the slot on the base!

Before inserting it into the base I wipe down both the back and front of the mirror with glass cleaner.  The back may require a little more than the front to clean up any soot.

Settings 1

LineGlass Mirror

Engraving Method
Line
Material
Glass Mirror
Power
100%
Depth
20%
Pass
1
Module Type
5 W 450 nm
Other Parameters
(no engraving during this step)
5

Step5:

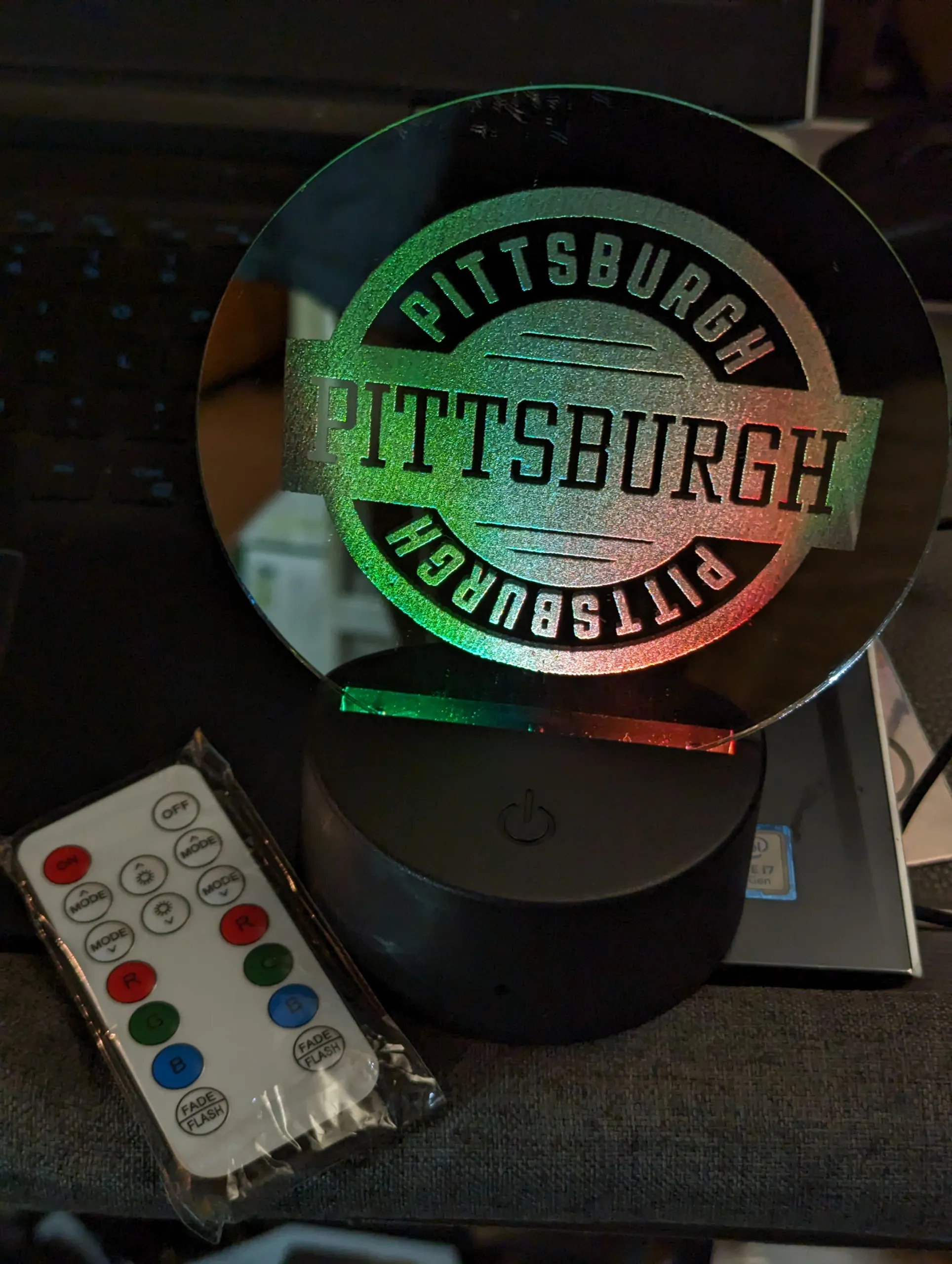

After inserting just turn the LED base on and enjoy!  It looks so much better in person.  Pictures do not do it justice!

Settings 1

LineGlass Mirror

Engraving Method
Line
Material
Glass Mirror
Power
100%
Depth
20%
Pass
1
Module Type
5 W 450 nm
Other Parameters
(no engraving during this step)
6

Step6: Sit back and enjoy!!

Now for the fun part! Sit back, pour yourself something yummy and enjoy your new led mirror!  Also, get used to compliments on it and people questioning where you bought it!!


Enjoy!
