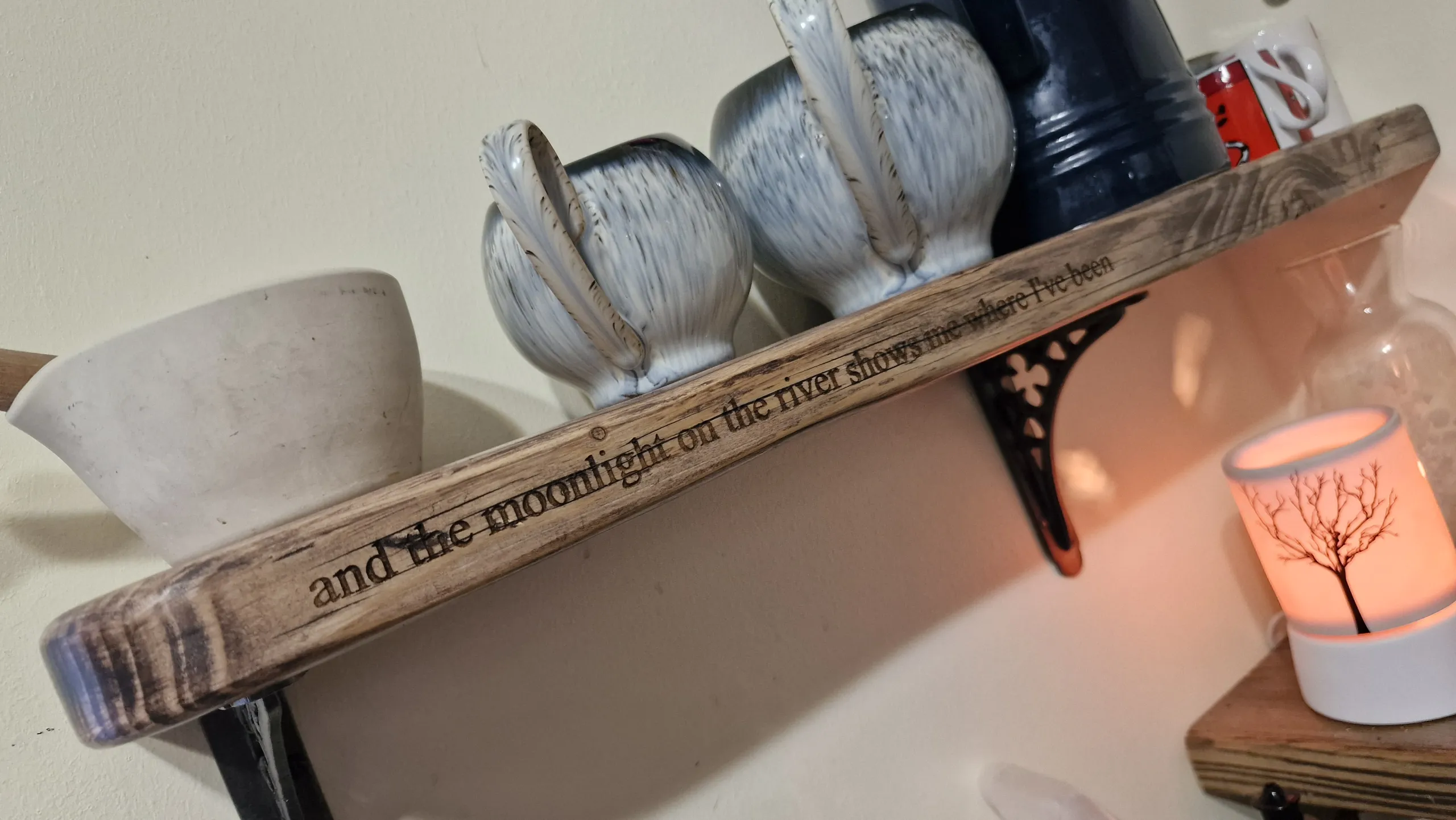

Reclaimed Scaffold Board Shelf
- Machine
- LP4
- Material
- Wood
- Size
- 300 x 20 mm
- Material Information
- This scaffold board was purchased from a local source and the hours spent sanding was worth it! - the actual engraving was done in 2 sections, using the preview outline box and a ruler to ensure that the 2 halves were correctly lined up
- Software Used
- LaserPecker Design Space IOS
- Production Time
- 10 min
- Engraving Difficulty
Introduction
How-to Tutorial
Step1:
The hardest part of this project was the width of the board meant using the engraver on an angle, and I had to be very creative in my craft space using all sorts to prop the board to make sure it was secure.
Having lined up the first half of the lyric and engraved to a satisfactory depth, I marked the edges of the preview box with masking tpe, then moved the board to exactly line up the second half and measured the gap between the letters to make sure it all lned u, then engraved the second half with the same passes and settings as I had the first half
Settings 1
Line
- Engraving Method
- Line
- Power
- 10%
- Depth
- 20%
- Pass
- 3
- Module Type
- 10 W 450 nm
Step2: Second half of text
Having lined up the first half of the lyric and engraved to a satisfactory depth, I marked the edges of the preview box with masking tpe, then moved the board to exactly line up the second half and measured the gap between the letters to make sure it all lned u, then engraved the second half with the same passes and settings as I had the first half
Settings 1
LineWood
- Engraving Method
- Line
- Material
- Wood
- Power
- 10%
- Depth
- 20%
- Pass
- 3
- Module Type
- 10 W 450 nm
- Other Parameters
- as step one
