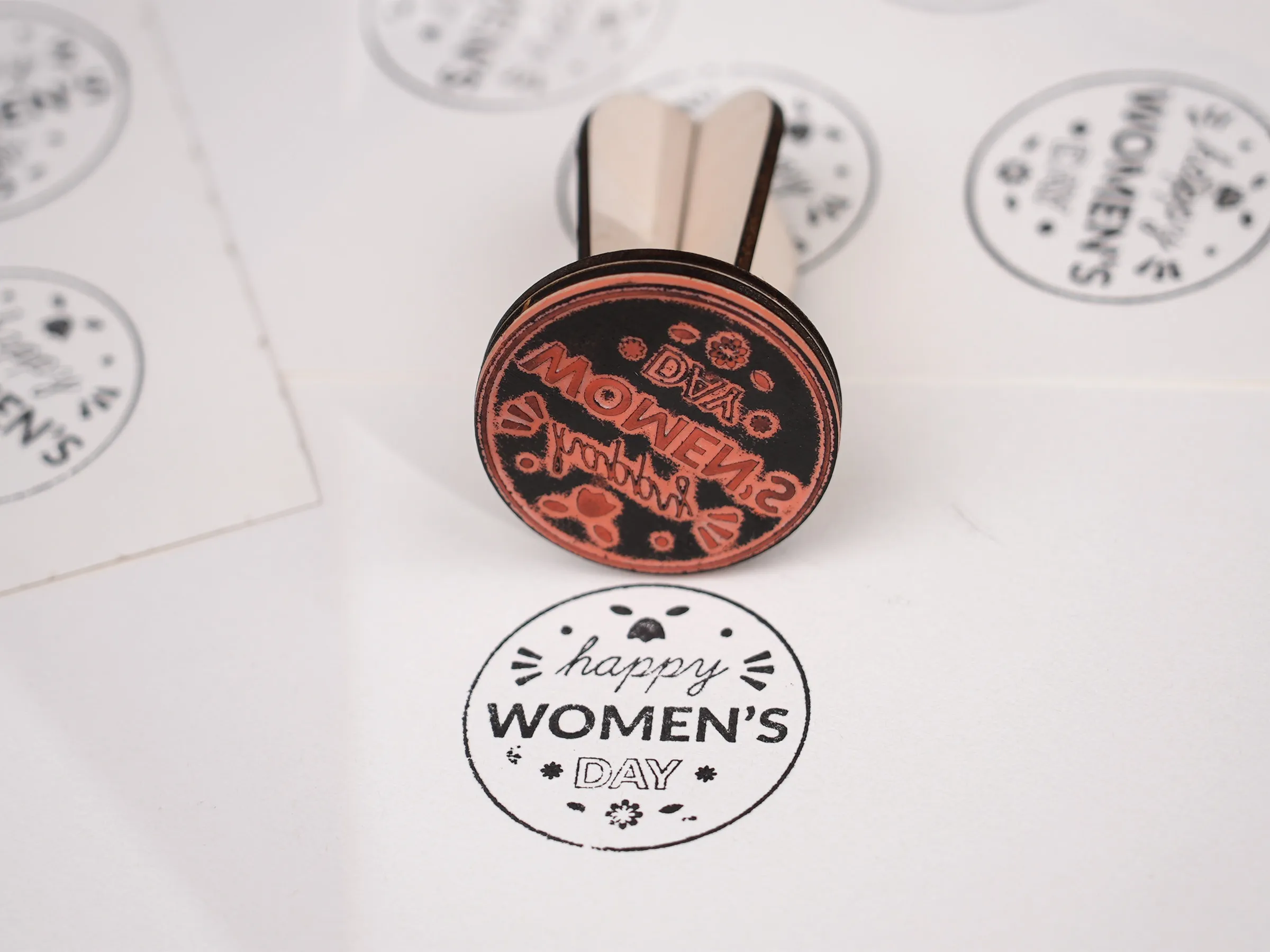

Stamp Pattern
- Machine
- LX1
- Material
- Wood
- Size
- 126 x 101 mm
- Material Information
- Rubber
- Software Used
- LaserPecker Design Space PC
- Production Time
- 30 min
- Engraving Difficulty
Design Files
Introduction
How-to Tutorial

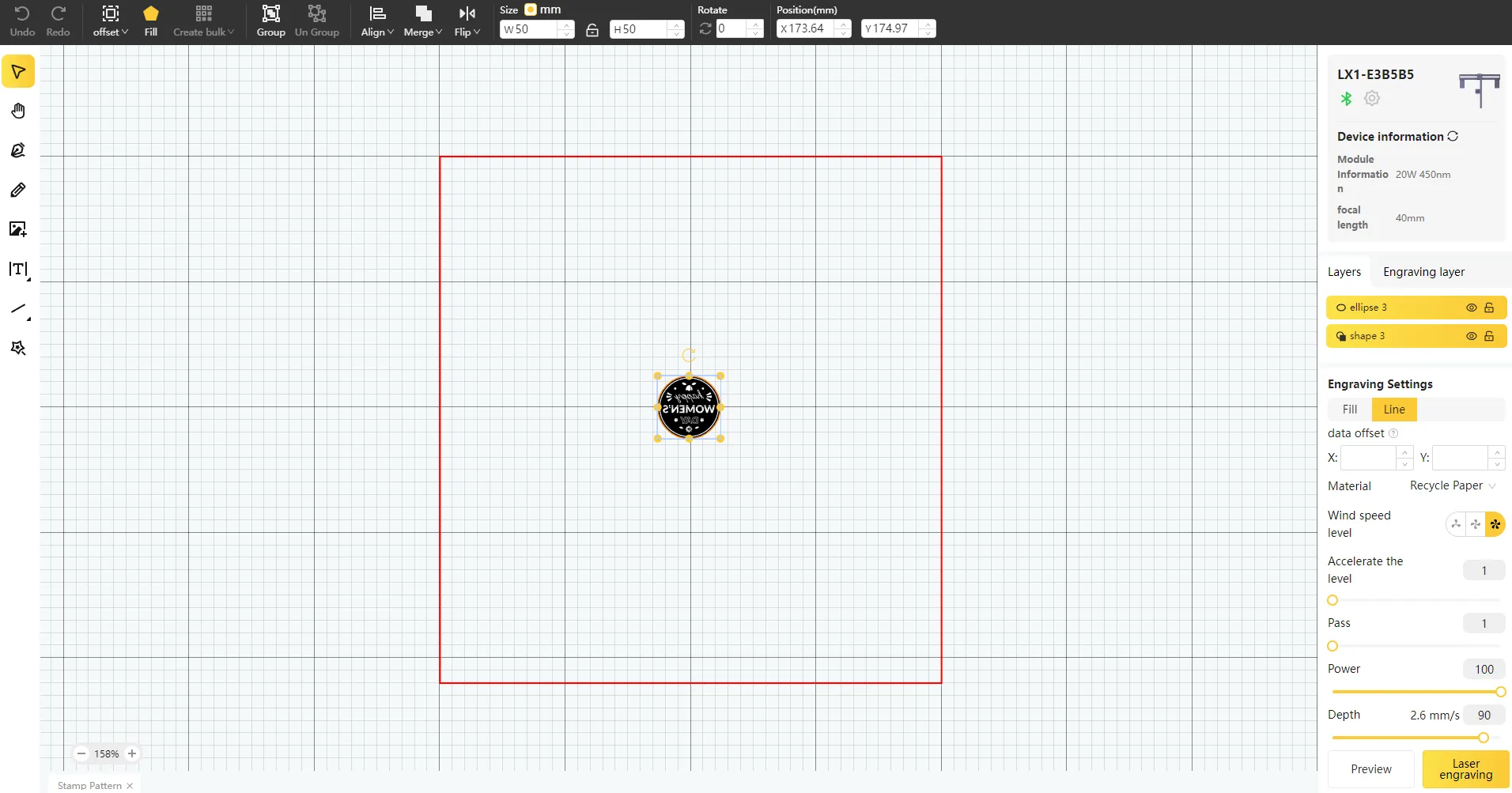

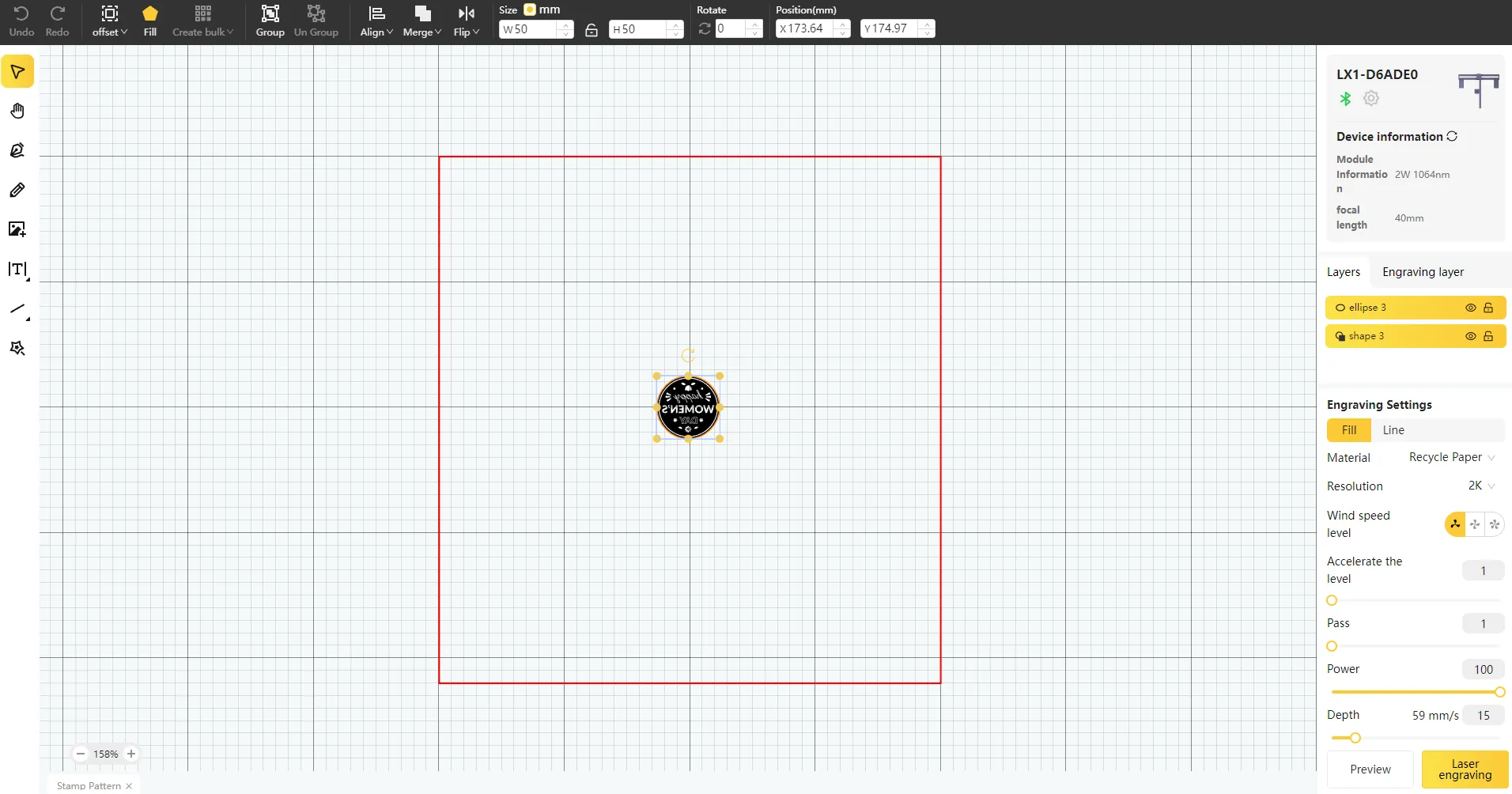

Step1:
Open the file and connect the machine. Begin by placing a piece of 2mm thick rubber material on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start engraving and cutting.
If you're using planks or materials of different thicknesses, remember to adjust the parameters accordingly.
After engraving, use a toothbrush to clean the dust off the surface.
Settings 1
FillPlastic
- Engraving Method
- Fill
- Material
- Plastic
- Resolution
- 2 K
- Power
- 100%
- Depth
- 15%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
Settings 2
LinePlastic
- Engraving Method
- Line
- Material
- Plastic
- Power
- 100%
- Depth
- 90%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm

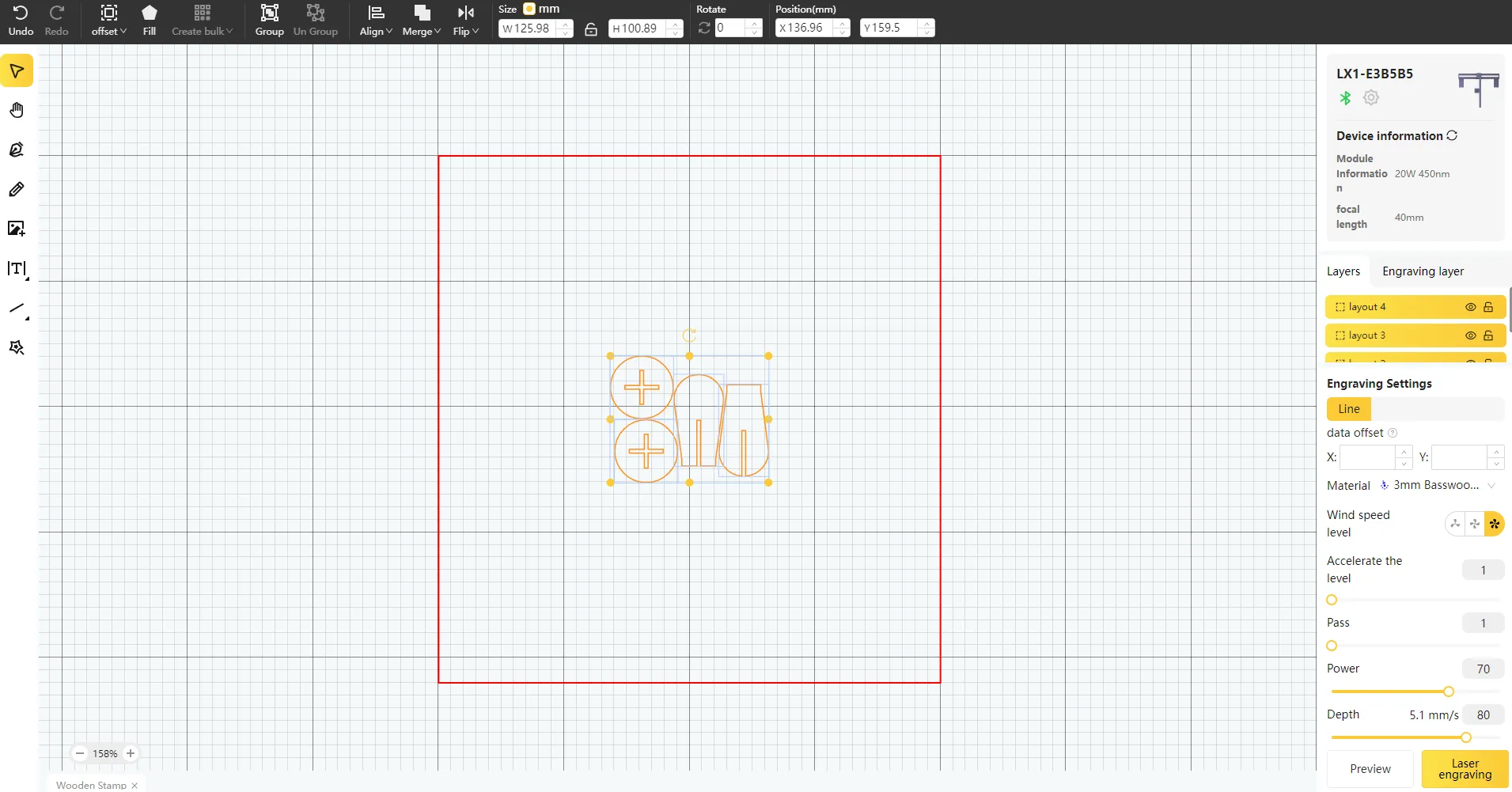

Step2:
Open another file. Begin by placing a 3mm basswood plank on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.
This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.
Once you put the pieces together, it will be fully functional and ready to use.
Settings 1
LineWood
- Engraving Method
- Line
- Material
- Wood
- Power
- 70%
- Depth
- 80%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
