General settings and the settings that I have discovered
How-to
ian.manning
2024/01/26 01:14 231

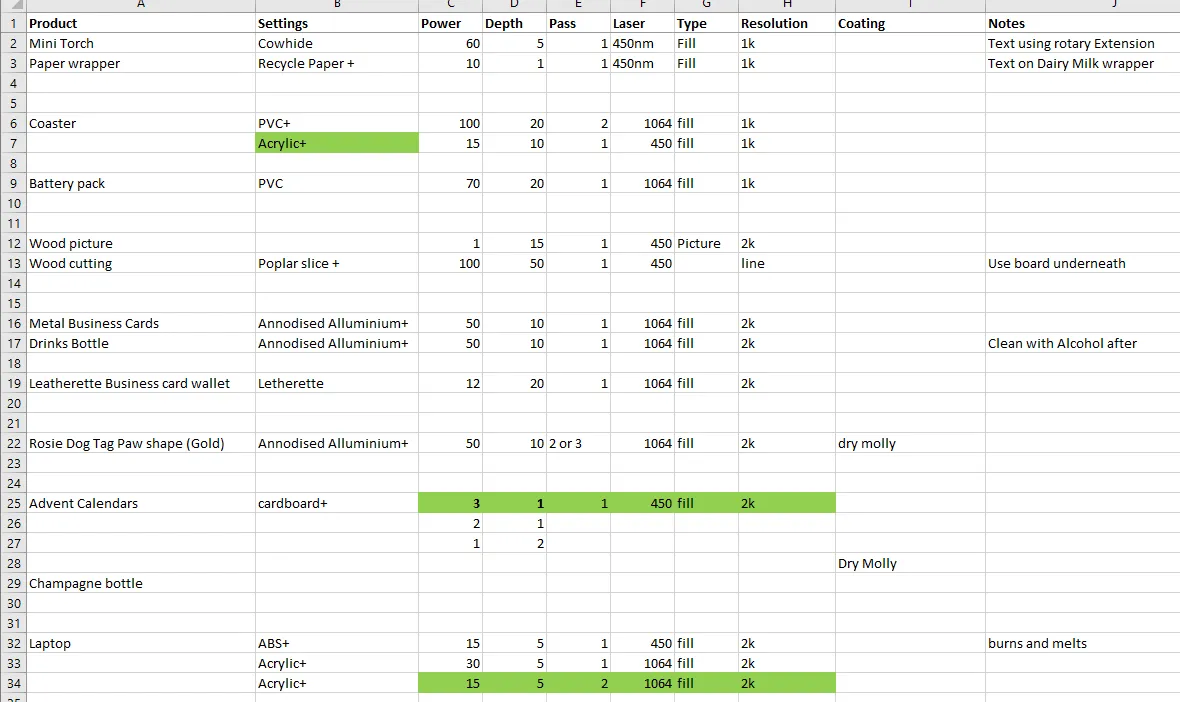

I looked for recomended power settings for the LP4 vfor a very long time before I found these on the LP site. I have put them into an excel sheet and then added another tab with the settings that I have been using . I hope this may be useful to someone.
Basic Information
| MachineLP4 |
| MaterialLeather/Metal/Paper/Plastic/Wood |
| Size1 x 1 mm |
| Software UsedLaserPecker Design Space PC |
| Engraving Difficulty |
How-to Tutorial
Step 1
I find it invaluable to record my settings so that I can repeat them at a later date without going through all the trial and error that is neccessary the first time.
Settings 1
| Engraving MethodPicture |
| Material1 |
| Resolution1 K |
| Power1% |
| Depth1% |
| Pass1 |
| Module Type10 W 450 nm |
Design Files
LaserPecker Design Space V2.5.1 or above is recommended.
1fd0d0d872b34d1aa0e5b0ac039bd8dd__%3ALaserpecker%20power%20settings.xlsx
76
settings
LP4
