LaserPecker
Birthday Gift Box
How-to
- Machine
- LX1
- Material
- Wood
- Size
- 217 x 196 mm
- Software Used
- LaserPecker Design Space PC
- Production Time
- 20 min
- Engraving Difficulty
Design Files
2024/01/13 11:0410
Introduction

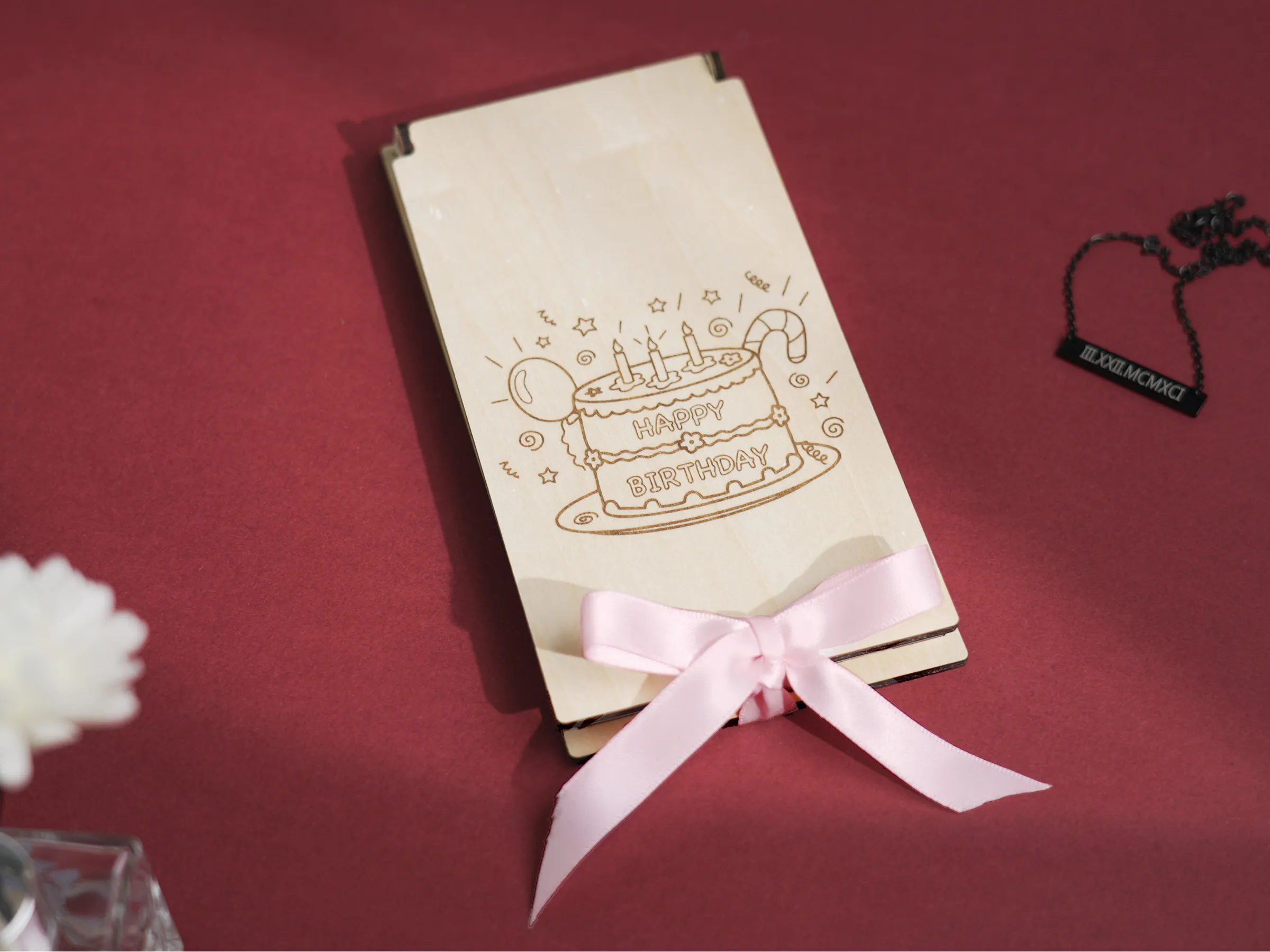

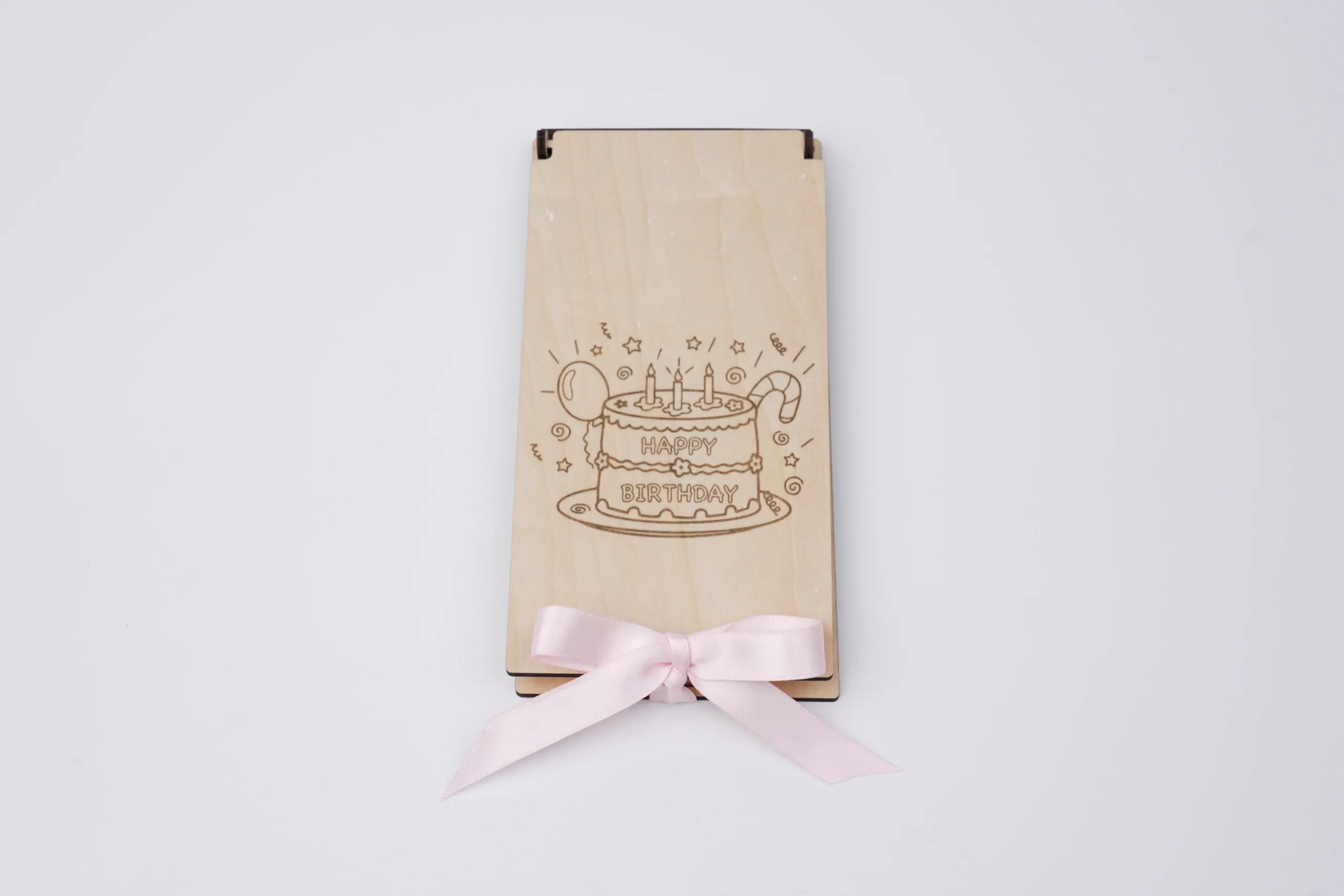

If your friend's birthday is coming up, make a gift box with the engraving machine and fill it with a necklace or other gifts to give her.
How-to Tutorial
Step1:

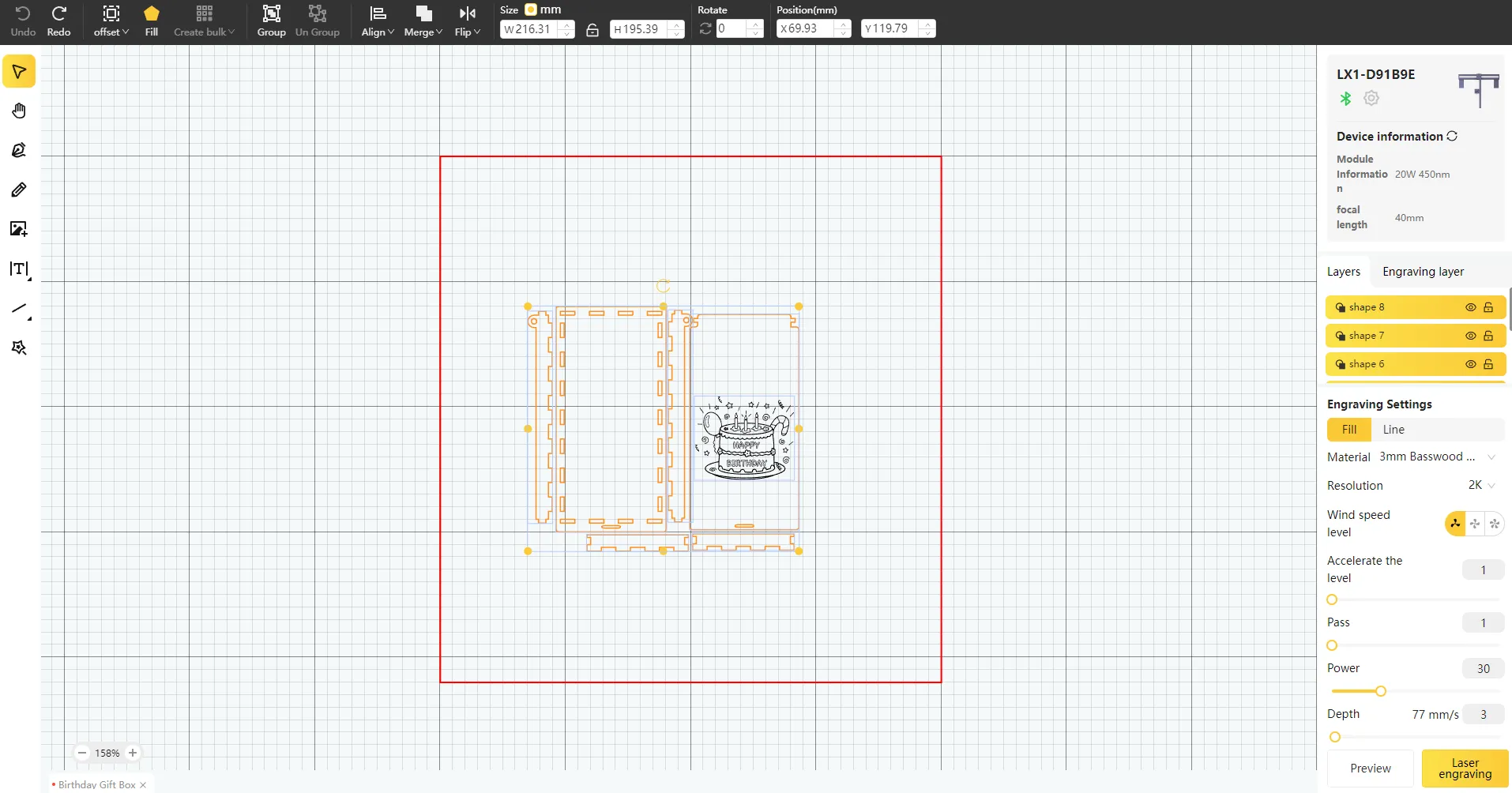

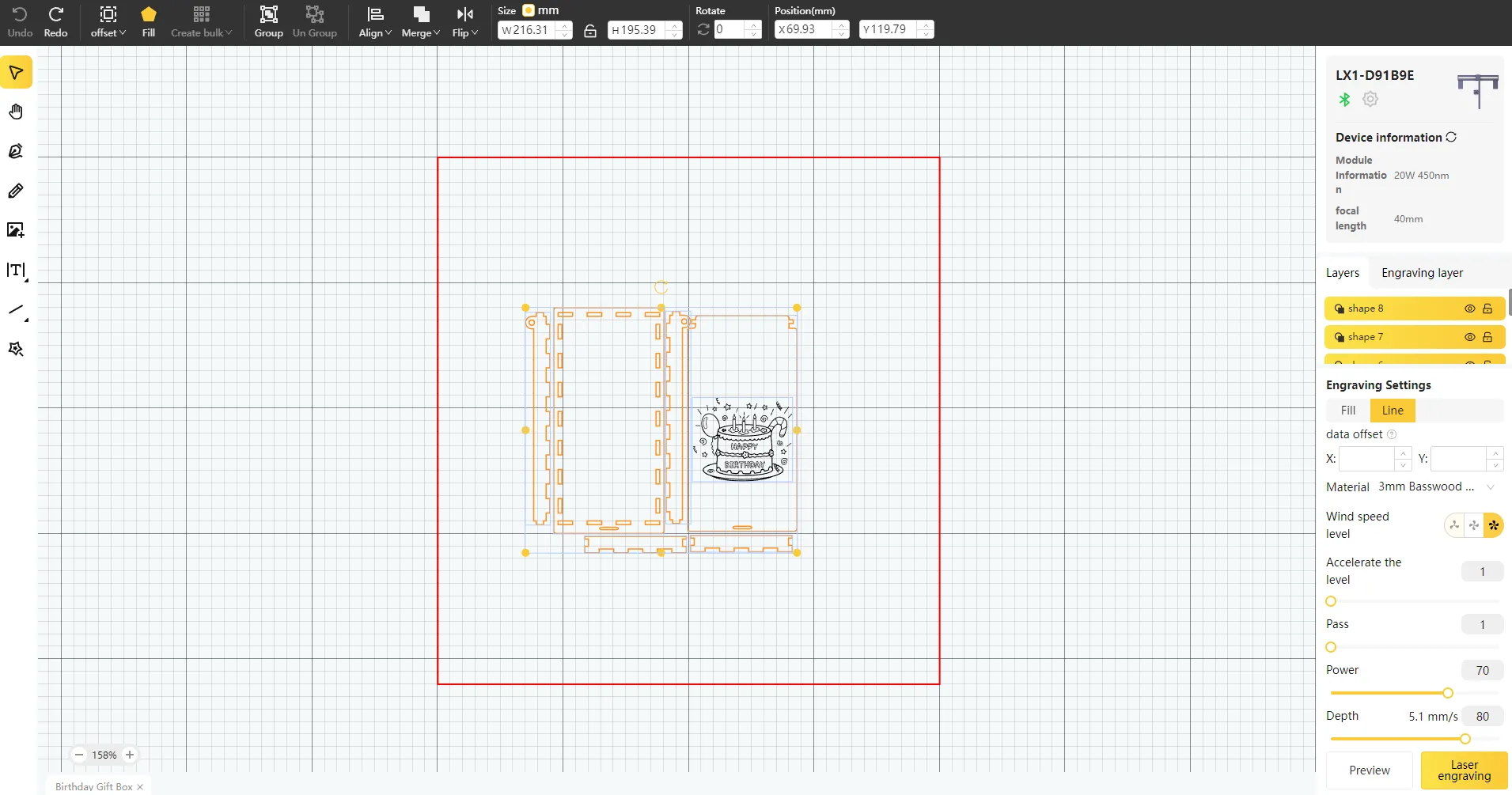

Open the file and connect the machine. Begin by placing a 3mm basswood plank on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.
This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.
Settings 1
FillWood
- Engraving Method
- Fill
- Material
- Wood
- Resolution
- 2 K
- Power
- 30%
- Depth
- 3%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
Settings 2
LineWood
- Engraving Method
- Line
- Material
- Wood
- Power
- 70%
- Depth
- 80%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
Birthday Gift
Box
