Christmas Thermos Cups
How-to
LaserPecker
2023/12/25 17:43 14

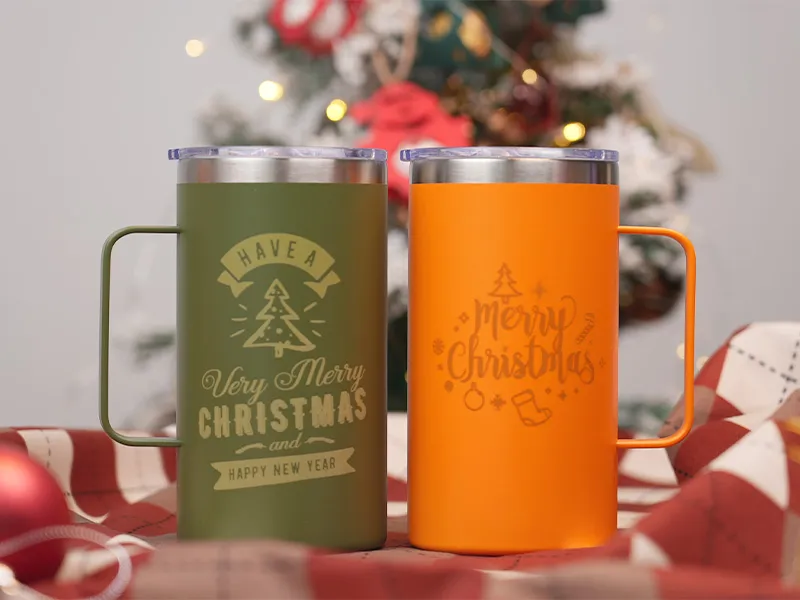

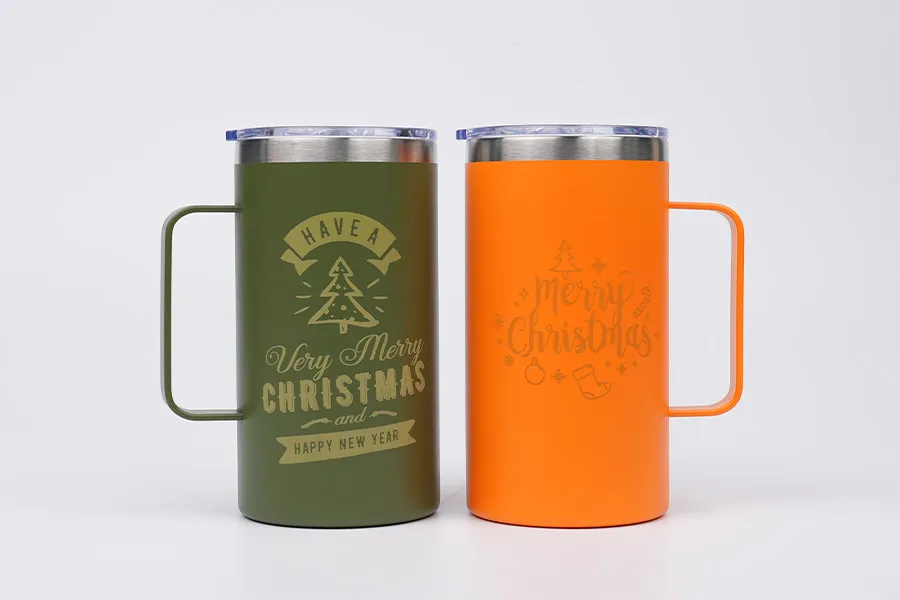

Use the machine to create a series of Christmas thermos cups.
Basic Information
| MachineLP4 |
| MaterialMetal |
| Size145 x 110 mm |
| Software UsedLaserPecker Design Space PC |
| Production Time15 min |
| Engraving Difficulty |
How-to Tutorial
Step 1

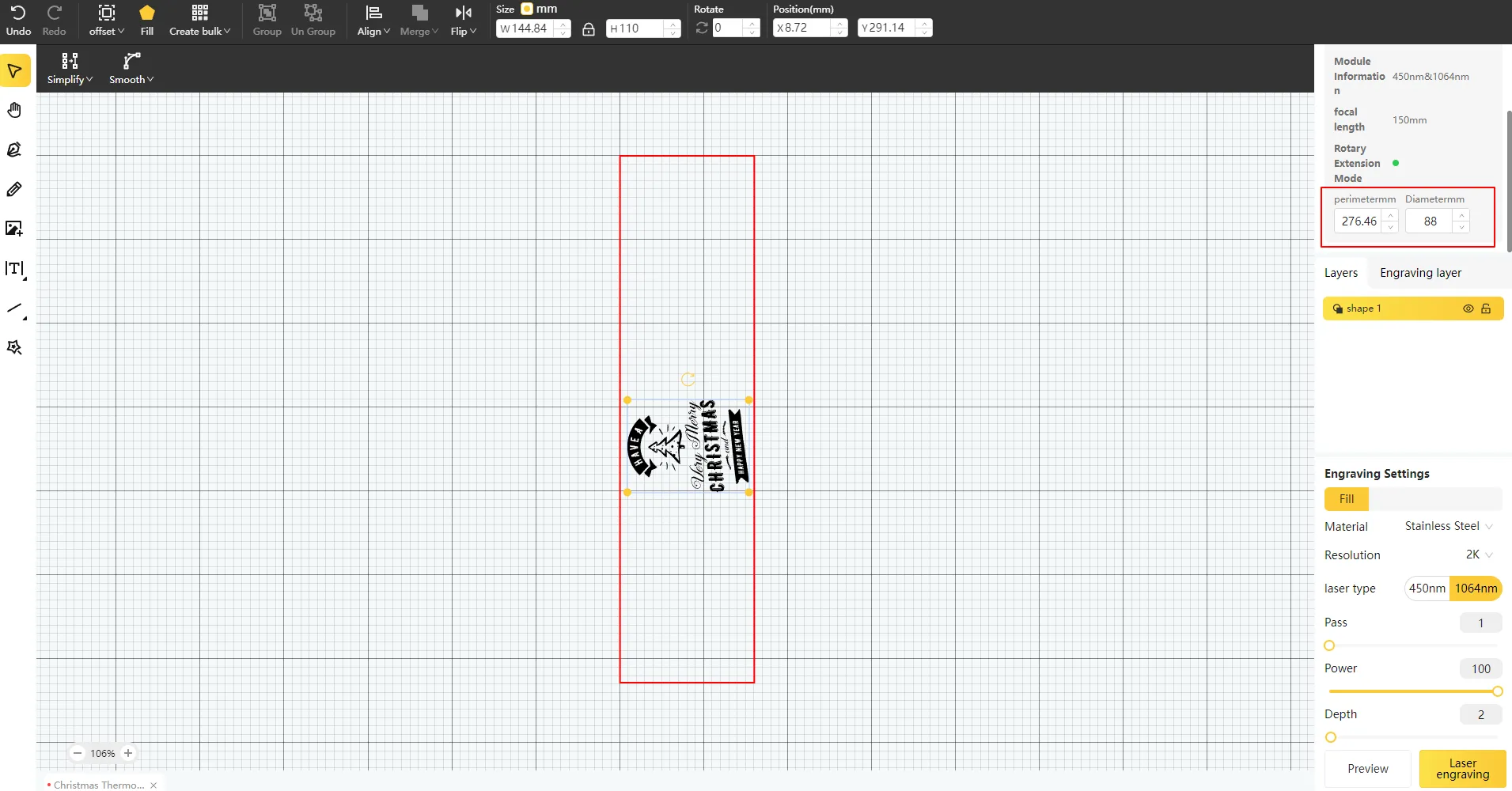

Connect the machine and the rotary extension. Open the file, measure the diameter or circumference of the cup, and fill in the location shown in the image.

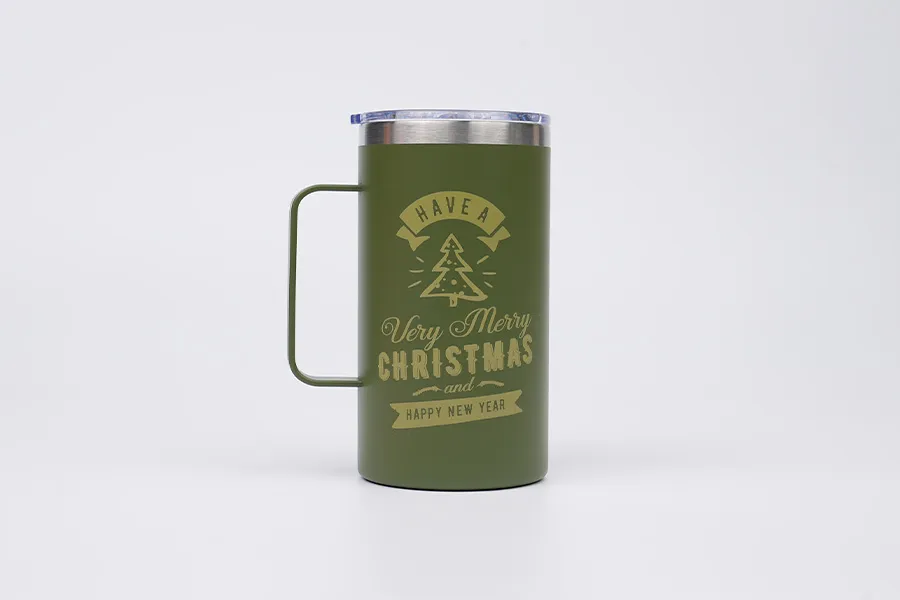

Fix the cup on the rotary extension, keep it horizontal. Then adjust the focus, verify the size, preview the position, and determine the engraving parameters. Next, you can start engraving.
Settings 1
| Engraving MethodFill |
| MaterialMetal |
| Resolution2 K |
| Power100% |
| Depth2% |
| Pass1 |
| Module Type2 W 1064 nm |
Step 2

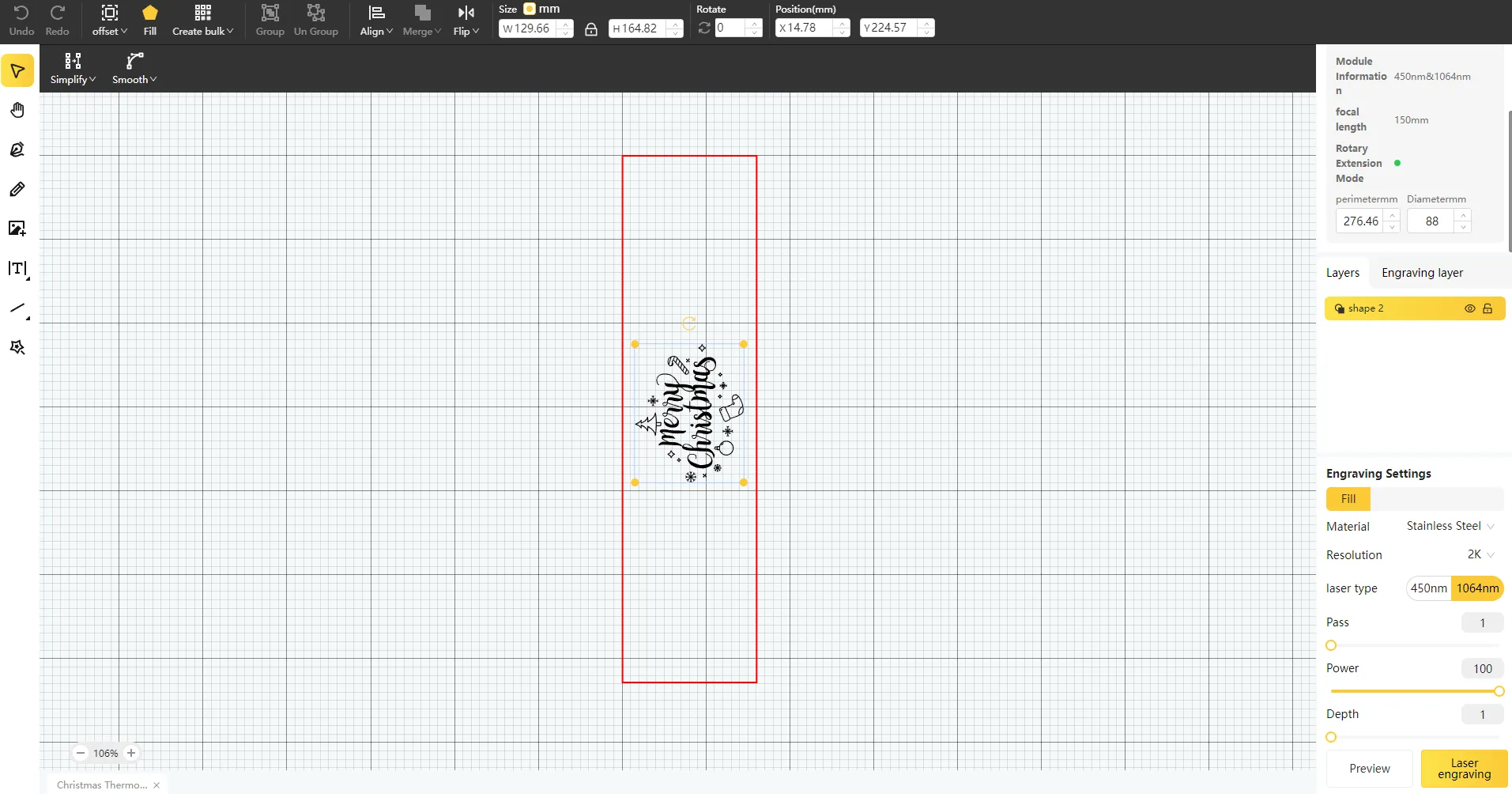

Repeat the above operation to engrave Christmas patterns on another cup.
If you use different materials or want different effects, you need to adjust the parameters accordingly.
Settings 1
| Engraving MethodFill |
| MaterialMetal |
| Resolution2 K |
| Power100% |
| Depth1% |
| Pass1 |
| Module Type10 W 450 nm |
Design Files
LaserPecker Design Space V2.5.1 or above is recommended.
