Thanksgiving Storage Box
How-to
LaserPecker
2023/12/15 13:08 10
Let's use a carving machine to make a wooden rabbit phone holder.
Basic Information
| MachineLX1 |
| MaterialWood |
| Size398 x 386 mm |
| Material Information3mm Basswood plank |
| Software UsedLaserPecker Design Space PC |
| Production Time30 min |
| Engraving Difficulty |
How-to Tutorial
Step 1

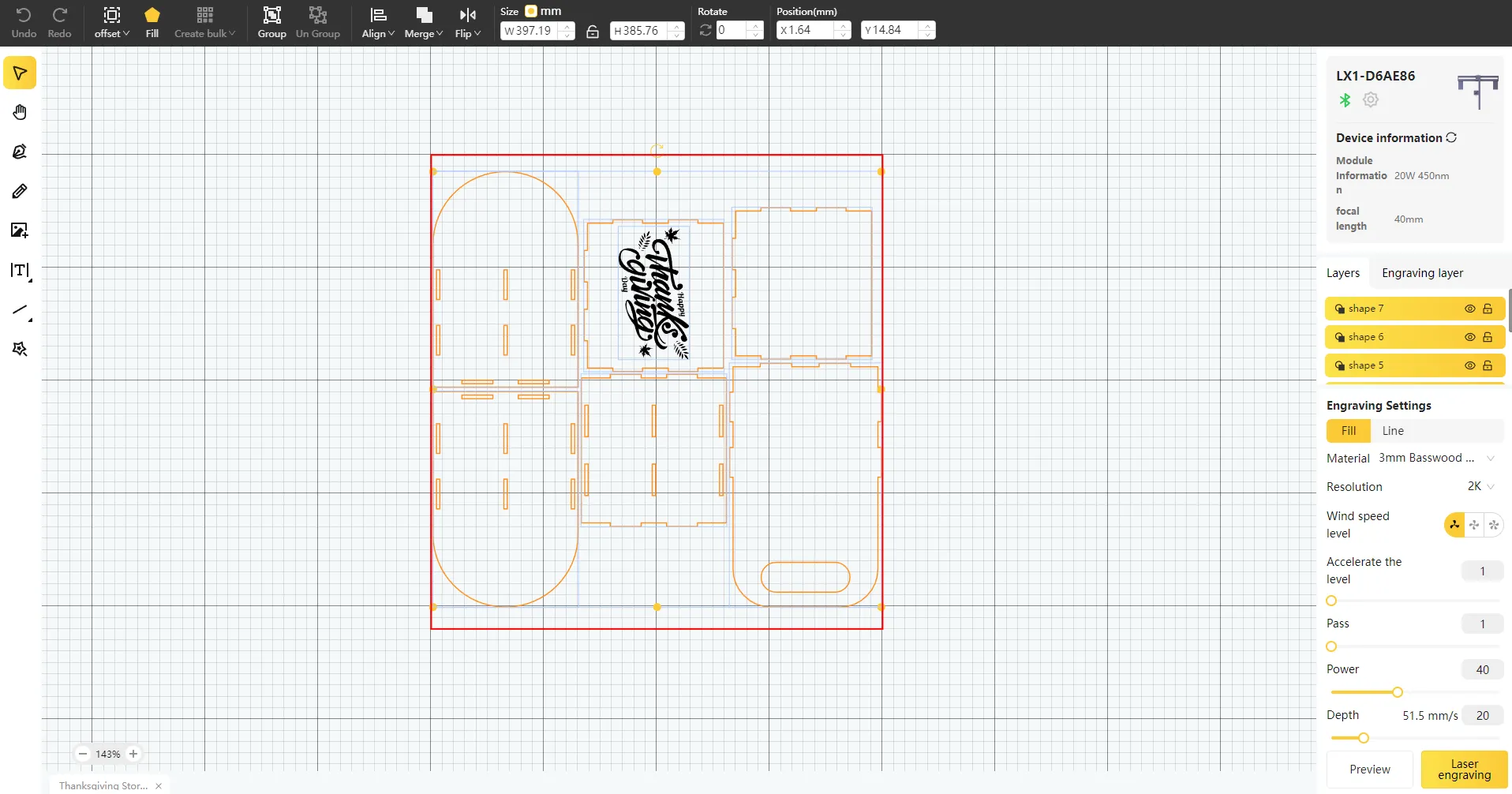

Begin by placing a 3mm basswood plank on the cutting pad. Open the file, connect the LX1， adjust the focus, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.
Settings 1
| Engraving MethodFill |
| MaterialBasswood plank |
| Resolution2 K |
| Power40% |
| Depth20% |
| Pass1 |
| Acceleration Level1 |
| Module Type20 W 450 nm |
Settings 2
| Engraving MethodLine |
| MaterialBasswood plank |
| Power70% |
| Depth80% |
| Pass1 |
| Acceleration Level1 |
| Module Type20 W 450 nm |
Step 2

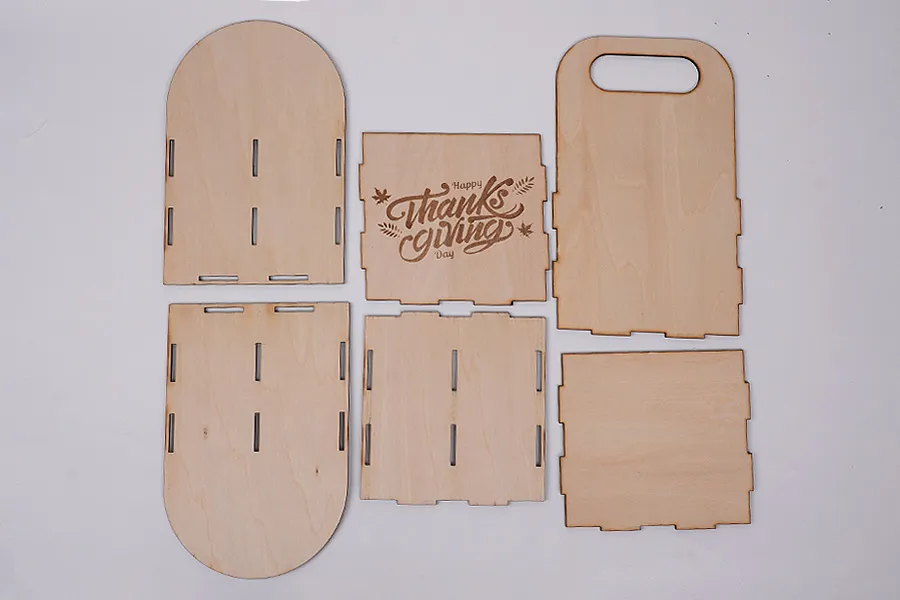

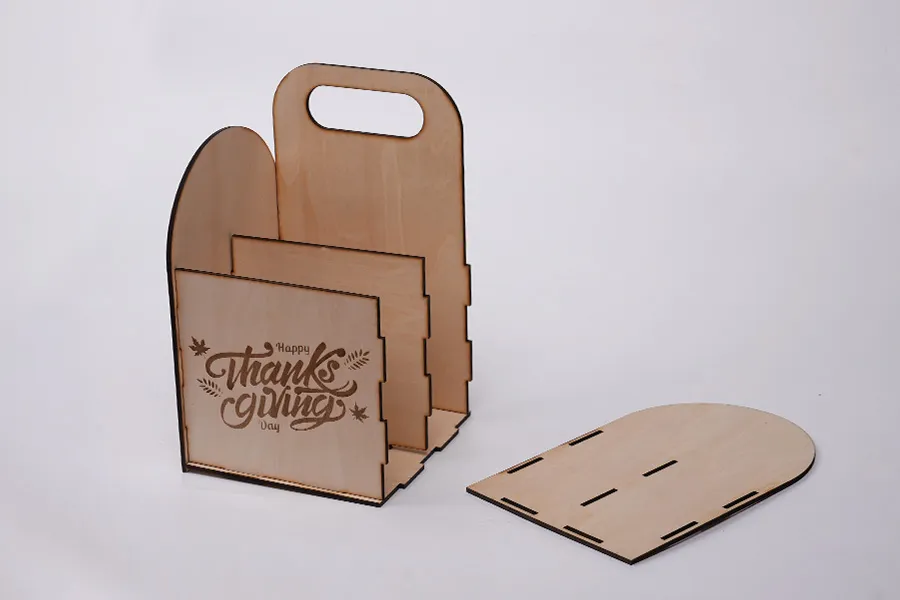

Follow the steps on the picture and splice the cut wood pieces together to make the Thanksgiving storage box.
Step 3 Note
This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.
Design Files
LaserPecker Design Space V2.5.1 or above is recommended.
bc0bc70cf06e40a3a8f2b8f5e494148f__%3AThanksgiving%20Storage%20Box.lp2
Open in LDSDownload
