LaserPecker
Wooden House Model
How-to
- Machine
- LX1
- Material
- Wood
- Size
- 289 x 313 mm
- Material Information
- 3mm Basswood plank
- Software Used
- LaserPecker Design Space PC
- Production Time
- 40 min
- Engraving Difficulty
Design Files
2024/01/29 15:5575
Introduction
Let's make a wooden house model.
How-to Tutorial
Step1:

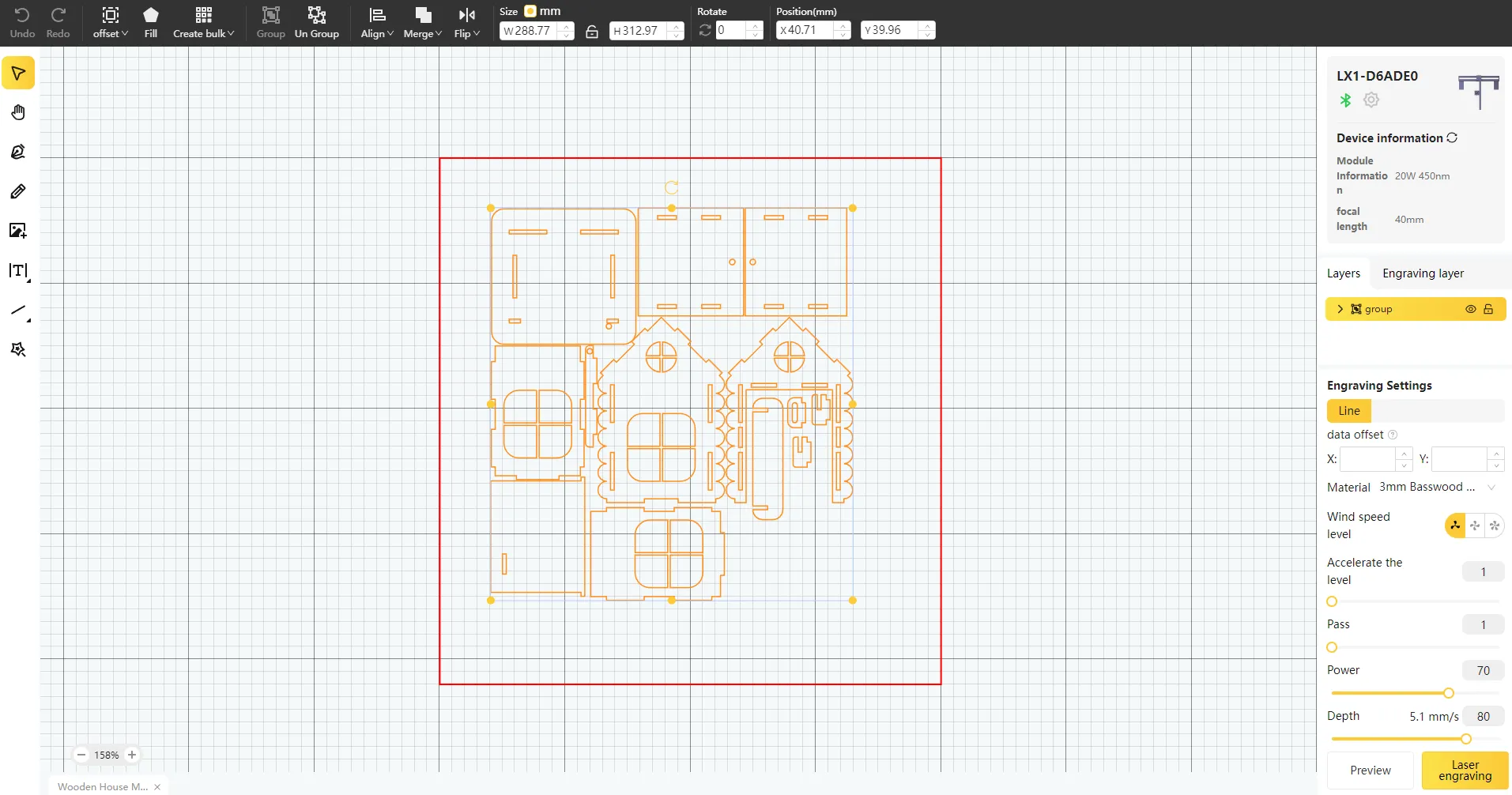

Begin by placing a 3mm basswood plank on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.
Settings 1
CutBasswood plank
- Engraving Method
- Cut
- Material
- Basswood plank
- Power
- 70%
- Depth
- 80%
- Pass
- 1
- Acceleration Level
- 1
- Module Type
- 20 W 450 nm
Step2:

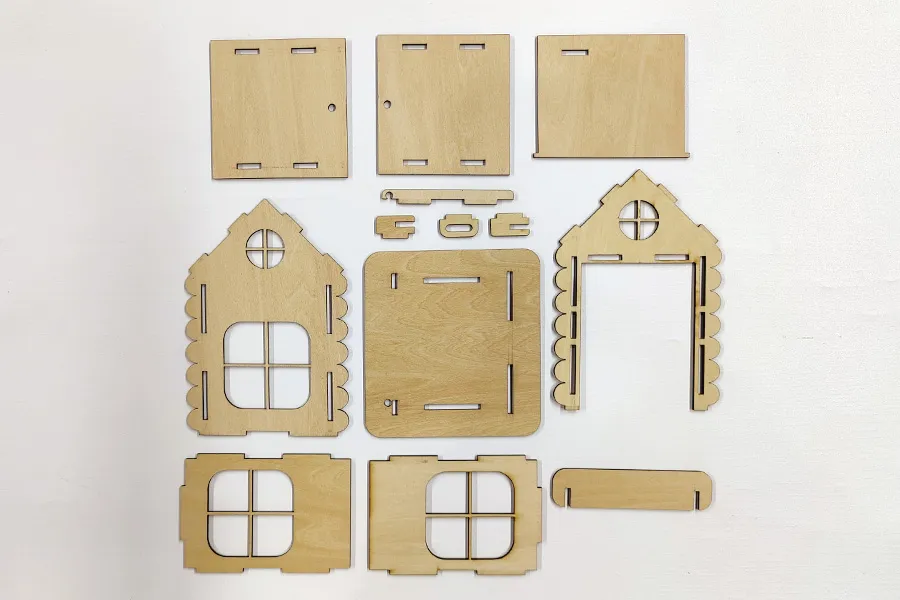

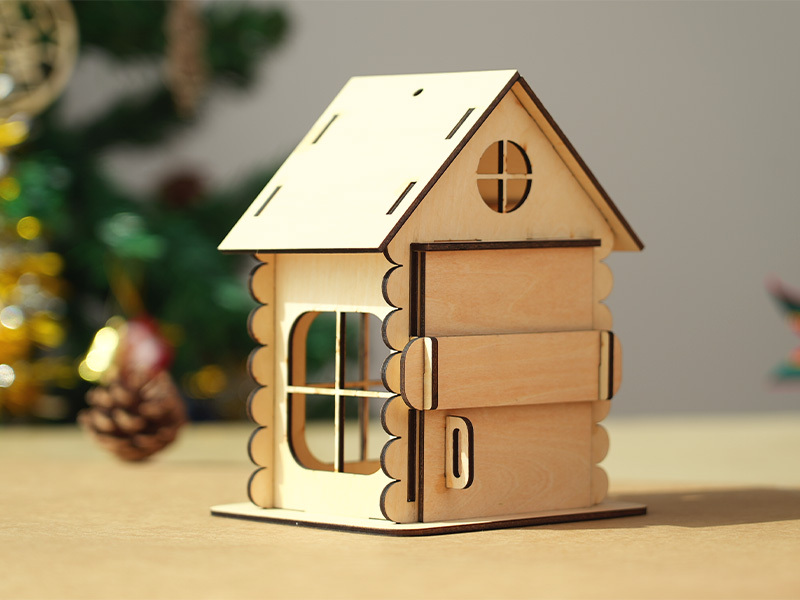

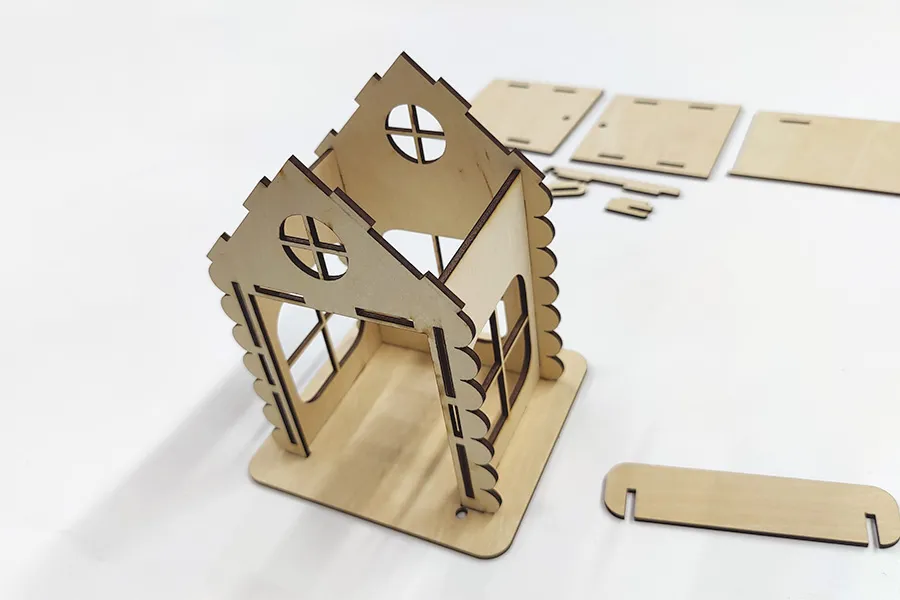

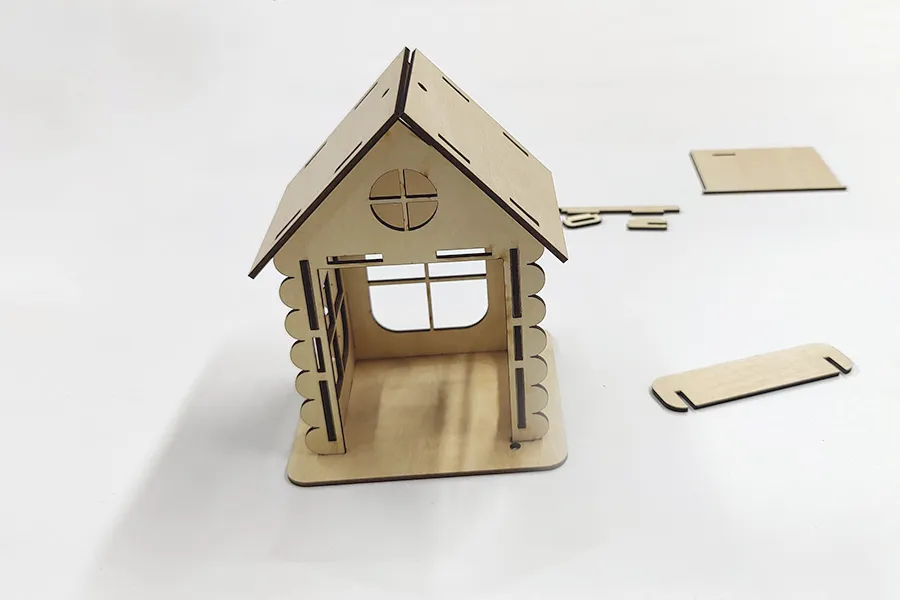

Follow the steps shown in the pictures to assemble the wooden pieces and you will end up with a complete wooden house model.
Step3: Note
This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.
