Wooden Rabbit Phone Holder

ハウツー
avatar
LaserPecker
2024/03/15 10:05 49
With Easter just around the corner, let's seize the opportunity to craft an adorable and festive wooden rabbit phone stand together!

基本情報

機器LX1
材質木材
サイズ183 x 215 mm
材料情報3mm Basswood Plank
制作時間10 分
彫刻の難易度

操作説明

ステップ 1

Open the file, and connect the LX1. Begin by placing a 3mm basswood plank on the cutting pad.  Adjust the focus, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.

This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.

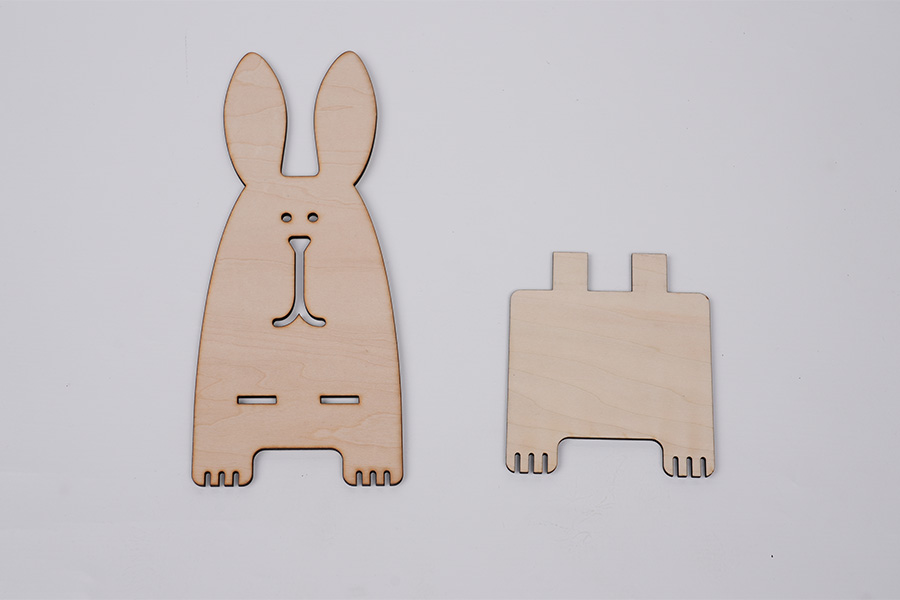

Capture One Catalog0495.jpg

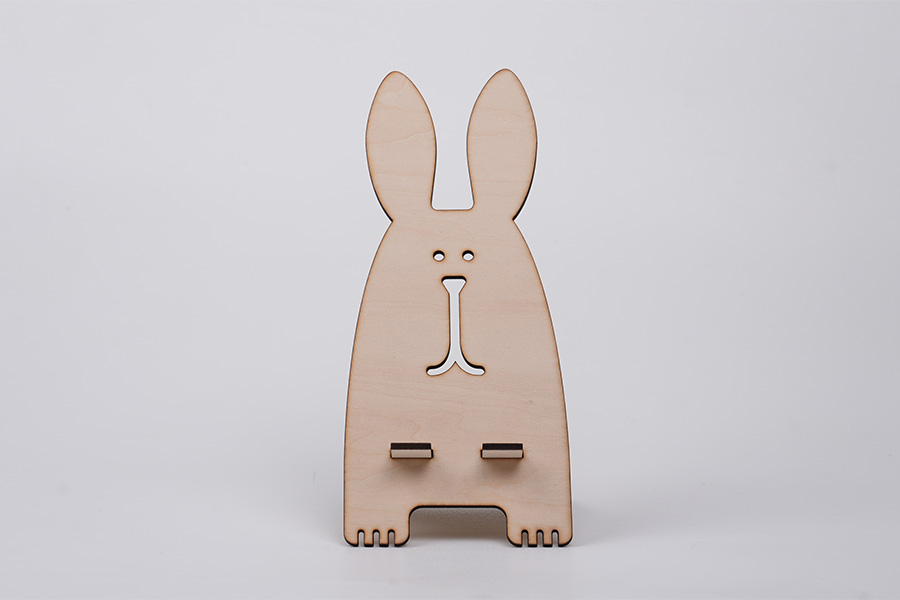

By splicing together two wooden boards, the phone holder is ready. You can also paint it with your favorite colors to add more festive atmosphere.

Capture One Catalog0494.jpg

設定 1

彫刻方法Line
加工素材Wood
電力70%
深さ80%
彫刻回数1
加速レベル1
モジュールタイプ20 W 450 nm
その他のパラメータ3mm

デザインファイル

V2.5.1以降のソフトウェアの使用を推奨します。

logo
Wooden Rabbit Phone Holder.lp2
LDSで開くダウンロード
Easter
