Stamp Pattern
基本情報
| 機器LX1 |
| 材質木材 |
| サイズ126 x 101 mm |
| 材料情報Rubber |
| 制作時間30 分 |
| 彫刻の難易度 |
操作説明
ステップ 1

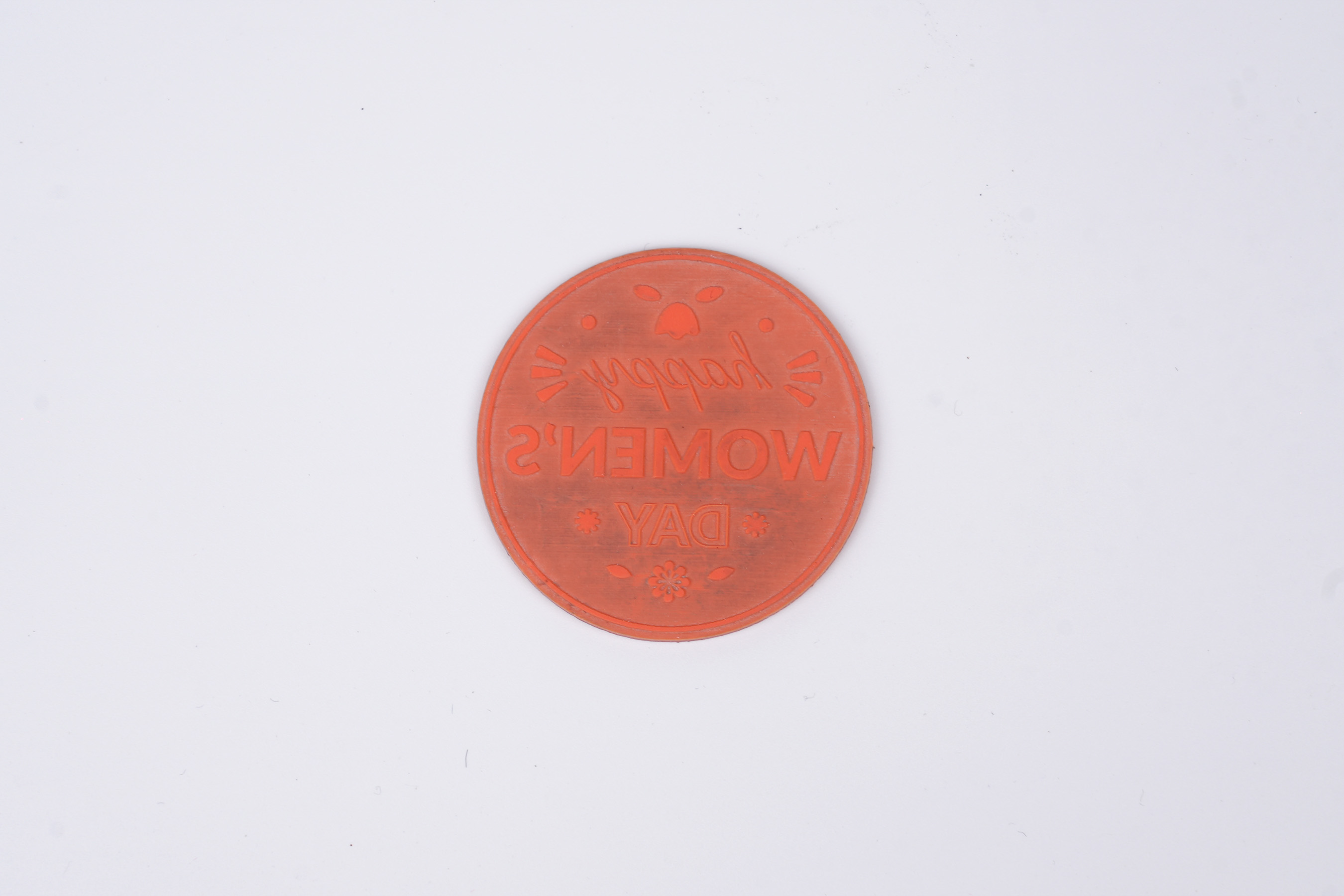

Open the file and connect the machine. Begin by placing a piece of 2mm thick rubber material on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start engraving and cutting.
If you're using planks or materials of different thicknesses, remember to adjust the parameters accordingly.
After engraving, use a toothbrush to clean the dust off the surface.
設定 1
| 彫刻方法Fill |
| 加工素材Plastic |
| 解像度2 K |
| 電力100% |
| 深さ15% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
設定 2
| 彫刻方法Line |
| 加工素材Plastic |
| 電力100% |
| 深さ90% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
ステップ 2
Open another file. Begin by placing a 3mm basswood plank on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start cutting.
This file is only applicable to 3mm basswood planks. Other thicknesses of wood may not be able to be assembled. Additionally, if you use different materials, you will need to adjust the parameters yourself.

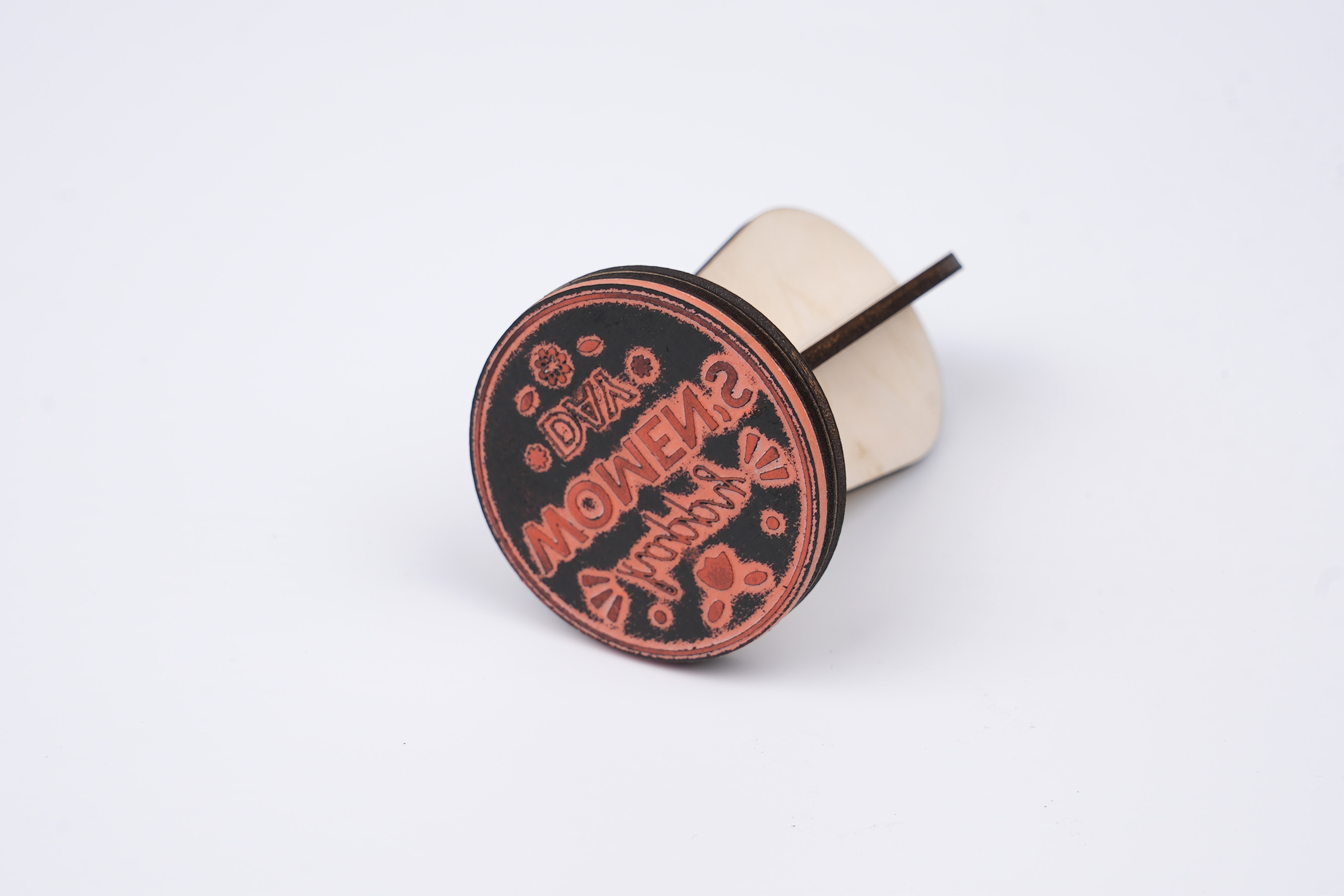

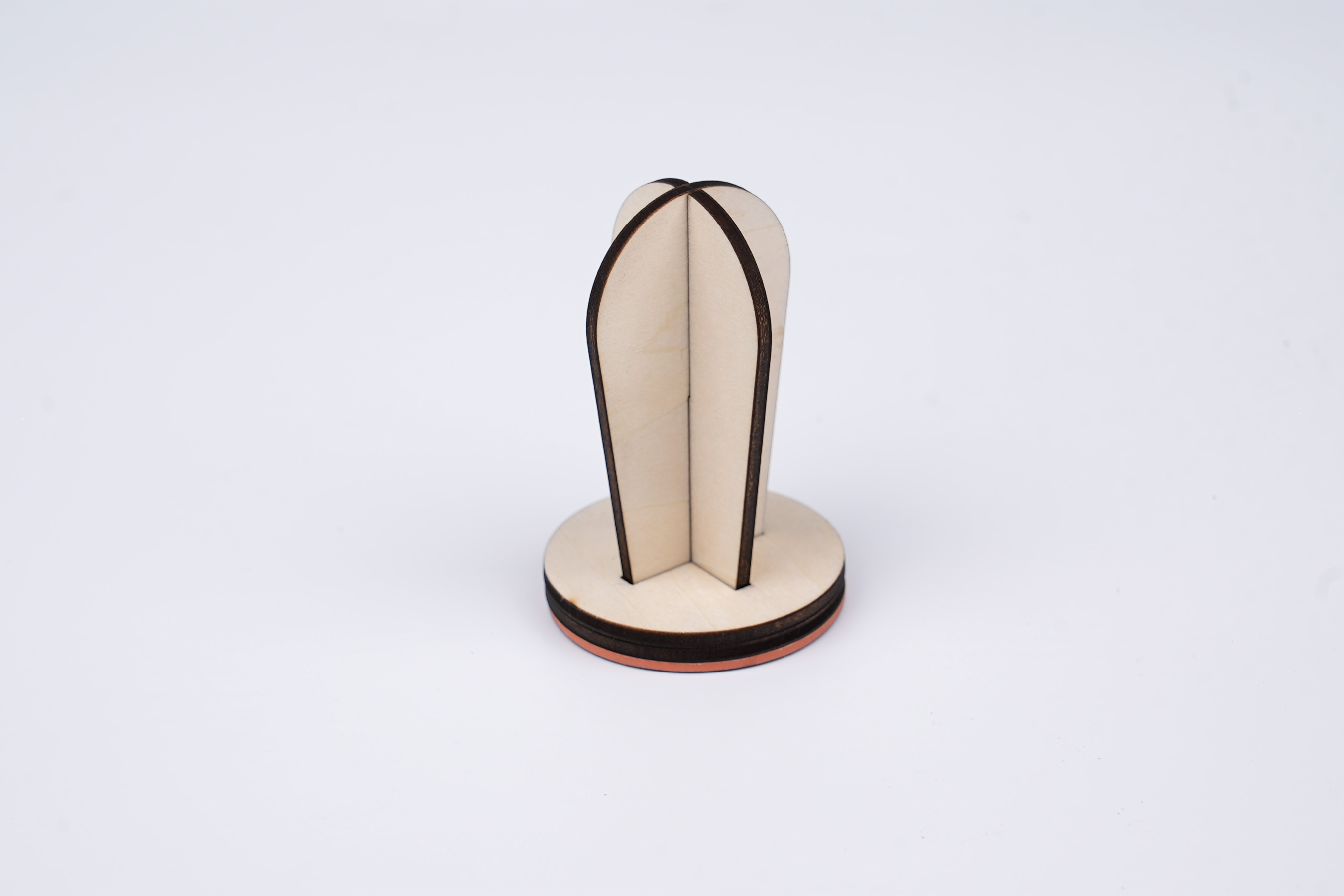

Once you put the pieces together, it will be fully functional and ready to use.
設定 1
| 彫刻方法Line |
| 加工素材Wood |
| 電力70% |
| 深さ80% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
