Woman Earrings
基本情報
| 機器LX1 |
| 材質木材 |
| サイズ70 x 86 mm |
| 制作時間20 分 |
| 彫刻の難易度 |
操作説明
ステップ 1
Open the file and connect the machine. Begin by placing a 1.5mm basswood plank on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start engraving and cutting.
If you're using planks or materials of different thicknesses, remember to adjust the parameters accordingly.
設定 1
| 彫刻方法Fill |
| 加工素材Wood |
| 解像度2 K |
| 電力30% |
| 深さ2% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
設定 2
| 彫刻方法Line |
| 加工素材Wood |
| 電力70% |
| 深さ80% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
ステップ 2

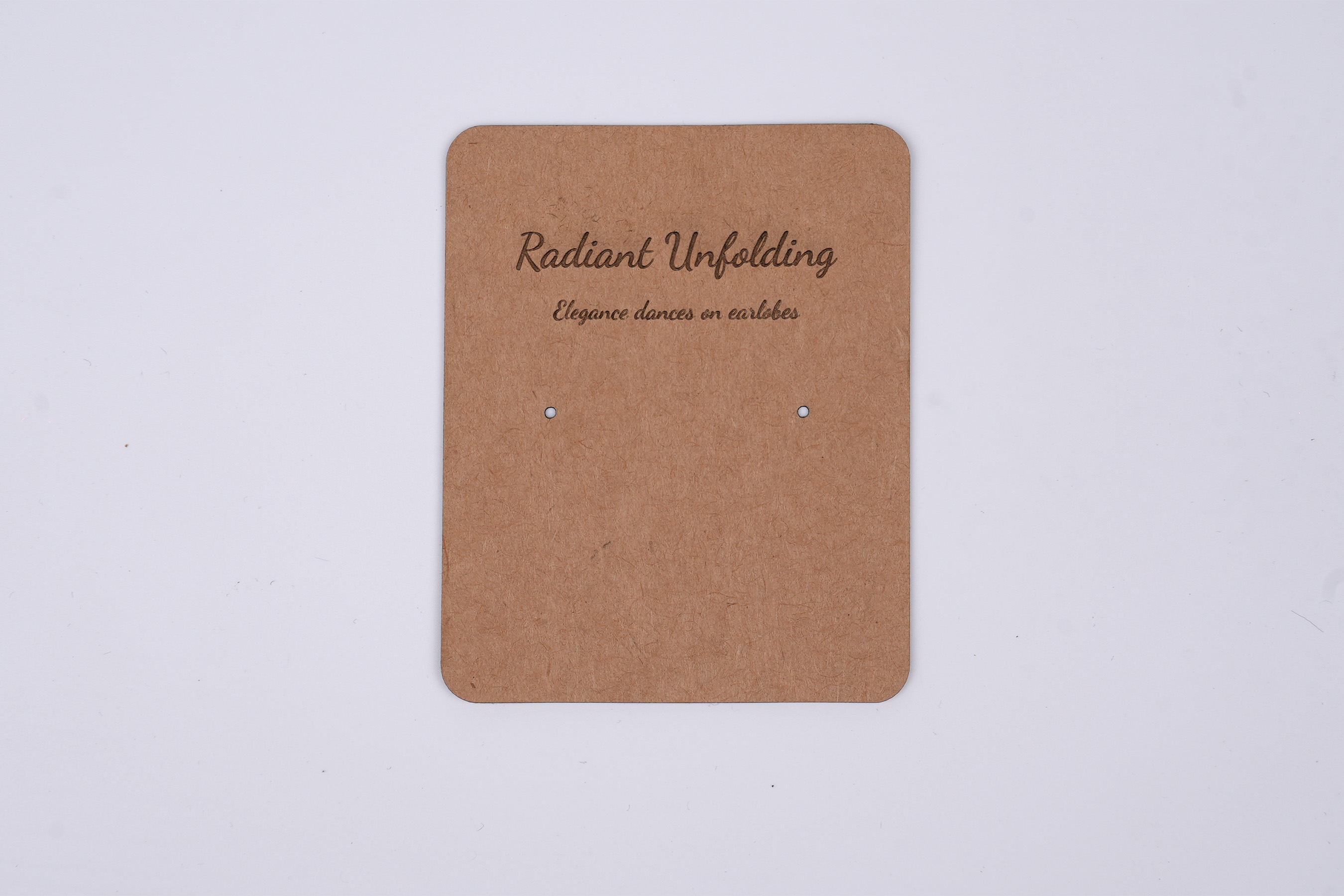

Open another file. Begin by placing the kraft paper on the cutting plate. Adjust the focal length, verify the size, preview the position, and determine the engraving parameters. Once everything is set, proceed to start engraving and cutting.
Additionally, if you use different materials, you will need to adjust the parameters yourself.

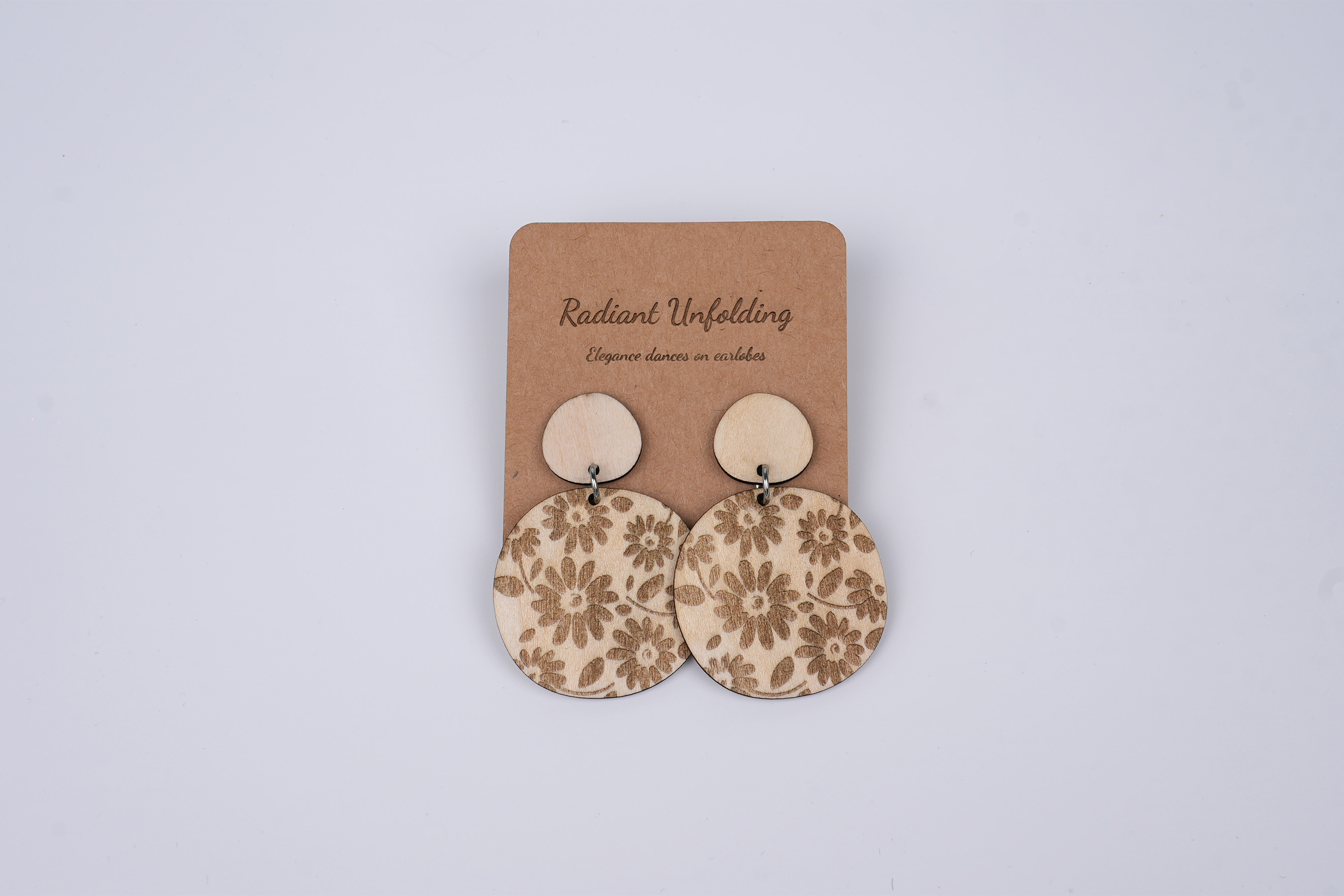

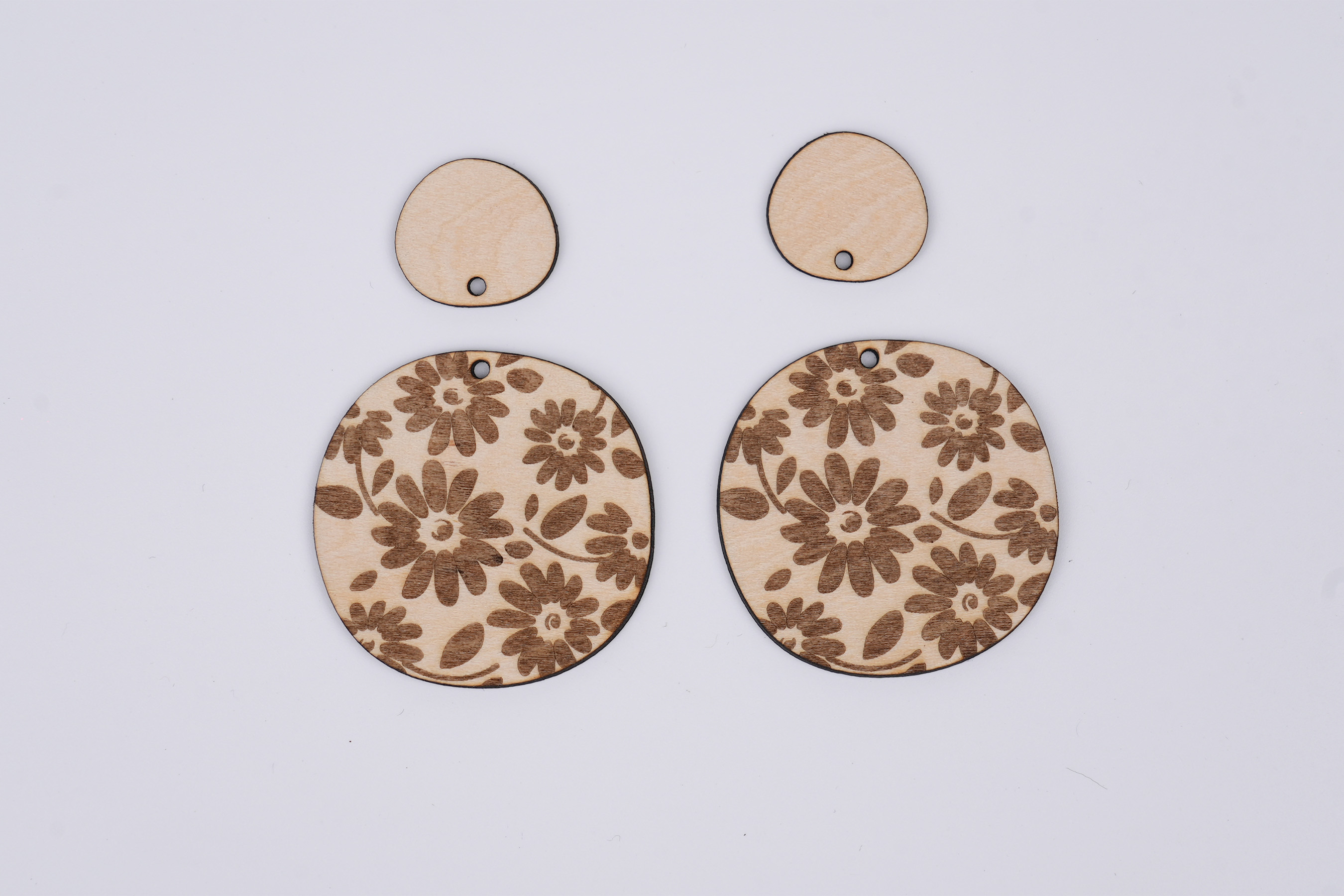

The earring parts were combined with small wooden chips, and then securely fastened onto a leather paper backing. With this, a unique pair of wooden earring gifts was successfully created.
設定 1
| 彫刻方法Fill |
| 加工素材Paper |
| 解像度2 K |
| 電力50% |
| 深さ2% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
設定 2
| 彫刻方法Line |
| 加工素材Paper |
| 電力100% |
| 深さ10% |
| 彫刻回数1 |
| 加速レベル1 |
| モジュールタイプ20 W 450 nm |
